Delta VFD-EL-W Series User Manual

Chapter 1 Introduction  VFD-EL-W
1-8

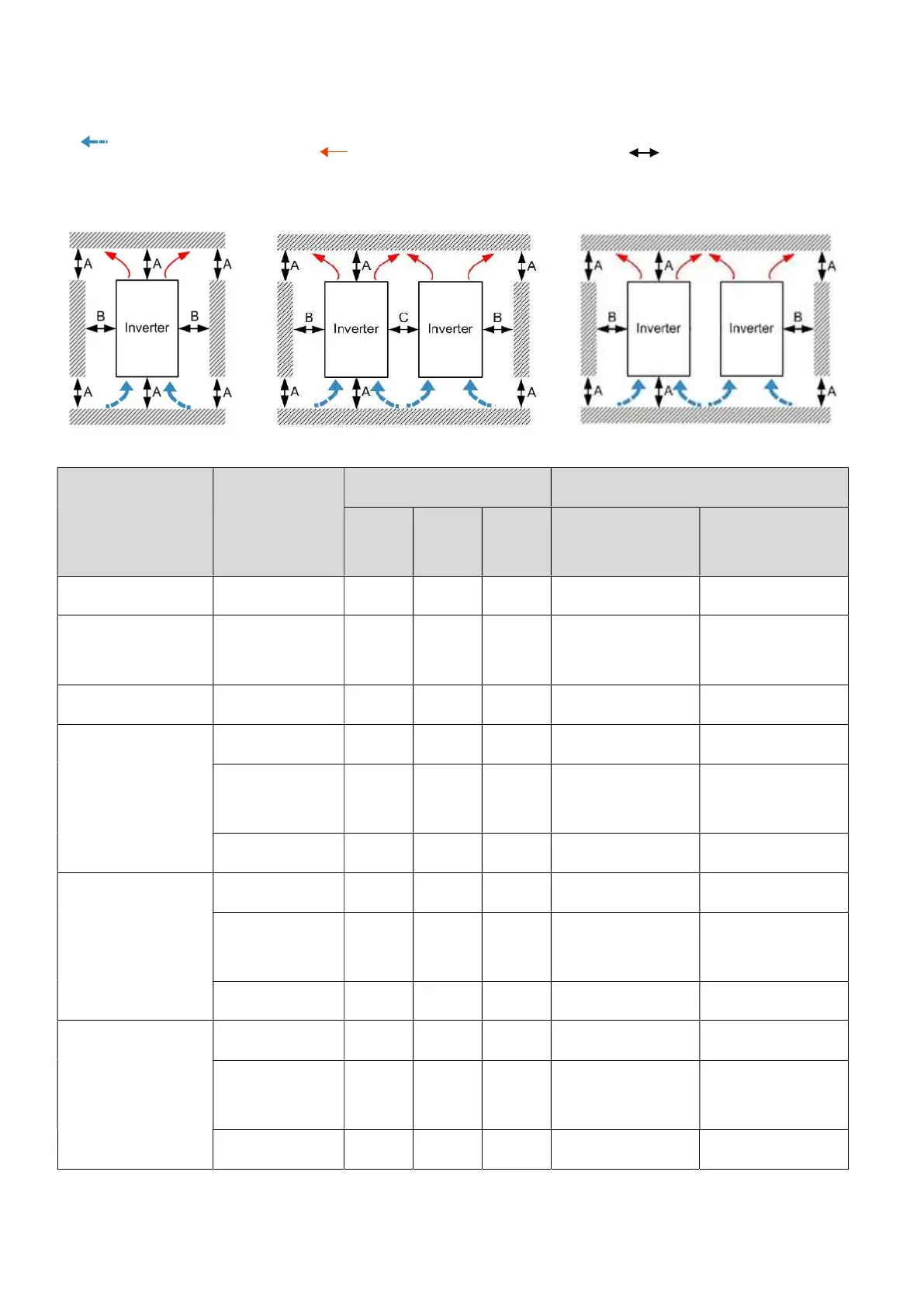

Minimum Mounting Clearance
(Blue arrow)
Inflow
(Red arrow) Outflow (Black) Distance
Single Drive Installation Side-by-Side Horizontal Installation Zero-stack Installation
Model Name
Installation
Method
Minimum Distance (mm)
Temperature °C
A B C
Note 1
Max.(Derating is not
required)
Note 3
Max.(Derating is
required)
VFD002EL21W(-1) Single Drive 120 50 - 50 60
VFD004EL21W(-1) Side-by-Side
Horizontal
120 50 30 50 60
VFD004EL43W(-1) Zero-stack
Note 2
- - - - -
VFD007EL21W(-1)
Single Drive 120 50 - 50
Note 4
60
Side-by-Side
Horizontal
120 50 30 50
Note 4
60
Zero-stack
Note 2
- - - - -
VFD007EL43W(-1)
VFD015EL43W(-1)
Single Drive 120 50 - 50 60
Side-by-Side
Horizontal
120 50 30 50 60
Zero-stack - - - - -
VFD015EL21W(-1)
VFD022EL21W(-1)
VFD022EL43W(-1)
VFD040EL43W(-1)
Single Drive 150 50 - 50 60
Side-by-Side
Horizontal
150 50 30 50 60
Zero-stack 150 50 0 40 50
