Chapter 4 Parameters
VFD-EL-W
4-28

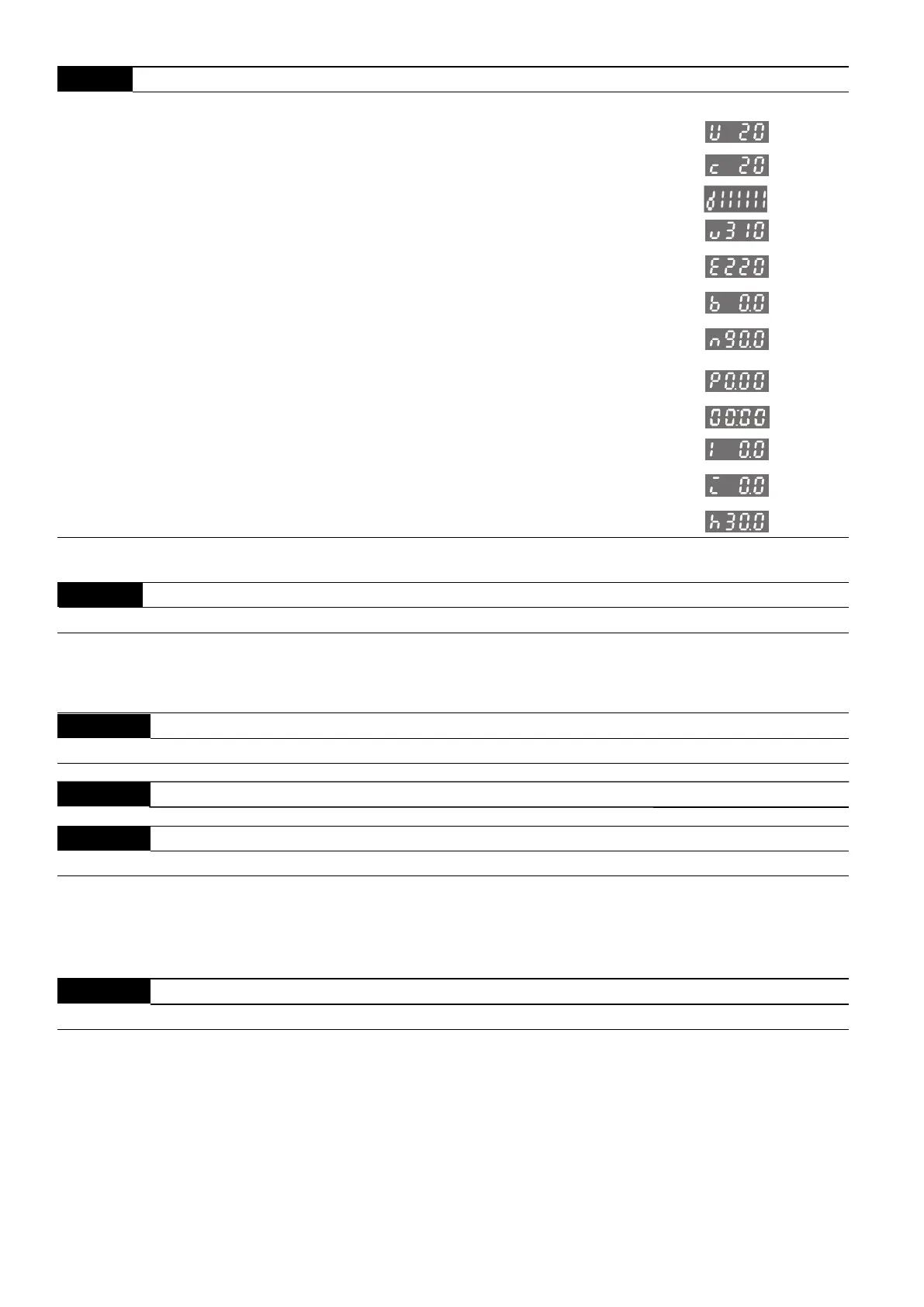

00.04
Content of Multi-function Display
Default: 0
Settings 0 Display the content of the user-defined unit (U)
1
Display the counter value that counts the number of pulses on
TRG terminal (c)
2 Display status of multi-function input terminals
3 Display the actual DC bus voltage in V
DC
for the AC motor drive
4
Display the output voltage in V
AC
for terminals U/T1, V/T2, W/T3
to the motor. (E)
5 Display the PID analog feedback signal value in % (b)
6
Display the power factor angle in º for terminals U/T1, V/T2,
W/T3 to the motor (n)
7
Display the output power in kW for terminals U, V and W to the
motor. (P)
8 Display the setting values for PID control and feedback signal.
9 Display the signal of the AVI analog input terminal (V).
10
Display the signal of the ACI analog input terminal that
corresponds to 0–100% (mA/V) (i).
11 Display the temperature of the IGBT in °C (h)
When you set Pr.00.03 to 3, the display is according to Pr.00.04.
00.05
User-defined Coefficient K Unit: 0.1
Settings 0.1–160.0 Default: 1.0
Determines the multiplying factor (K) for the user-defined unit.
The display value is calculated as follows:
User-defined unit (U) = Output frequency (H) * User-defined Coefficient (K) (Pr.00.05)
00.06
Software Version
Settings Read Only Default: #.##
00.07
Reserved
00.08
Password Input
Unit: 1
Settings 0–9999 Default: 0
Displayed value 0–2 is the number of wrong password attempts.
Enter the password that is set in Pr.00.09. Enter the correct password here to enable changing parameter
settings. You are limited to a maximum of three attempts. After three consecutive failed attempts, a blinking
“codE” appears. You must restart the AC motor drive before you can try again to enter the correct password.
00.09
Set Password Unit: 1
Settings 0–9999 Default: 0
Sets a password to protect your parameter settings.
If the display shows 0, no password is set or the password is correctly set in Pr.00.08. You can then change all
parameters, including Pr.00.09.
The first time you can set a password directly. After successfully setting the password, the display shows 1.
Be sure to record the password for later use.
To cancel the parameter lock, set Pr.00.09 to 0 after entering the correct password in Pr.00.08.
The password consists of between 1–4 digits.
You can re-enable the password after decoding with Pr.00.08:
Method 1: Enter the original password in Pr.00.09 again (or you can enter a new password; be sure to record it).
Method 2: Restart the drive to re-enable the password function.
