Chapter 5 Parameters_VFD-B Series
5-44
Revision 10/2005, BE13, SW V4.08
RUN
RUN
STOP
STOP
Pr.02-01=1 or 2
This action will follow FWD/DCM
or REV/DCM status
(ON is close/OFF is open)
ON
OFF
FWD-DCM (close)
Pr.02-01=0
output frequency
Pr.02-06=2 or 3
Change operation
command source
output frequency
Pr.02-06=0 or 1

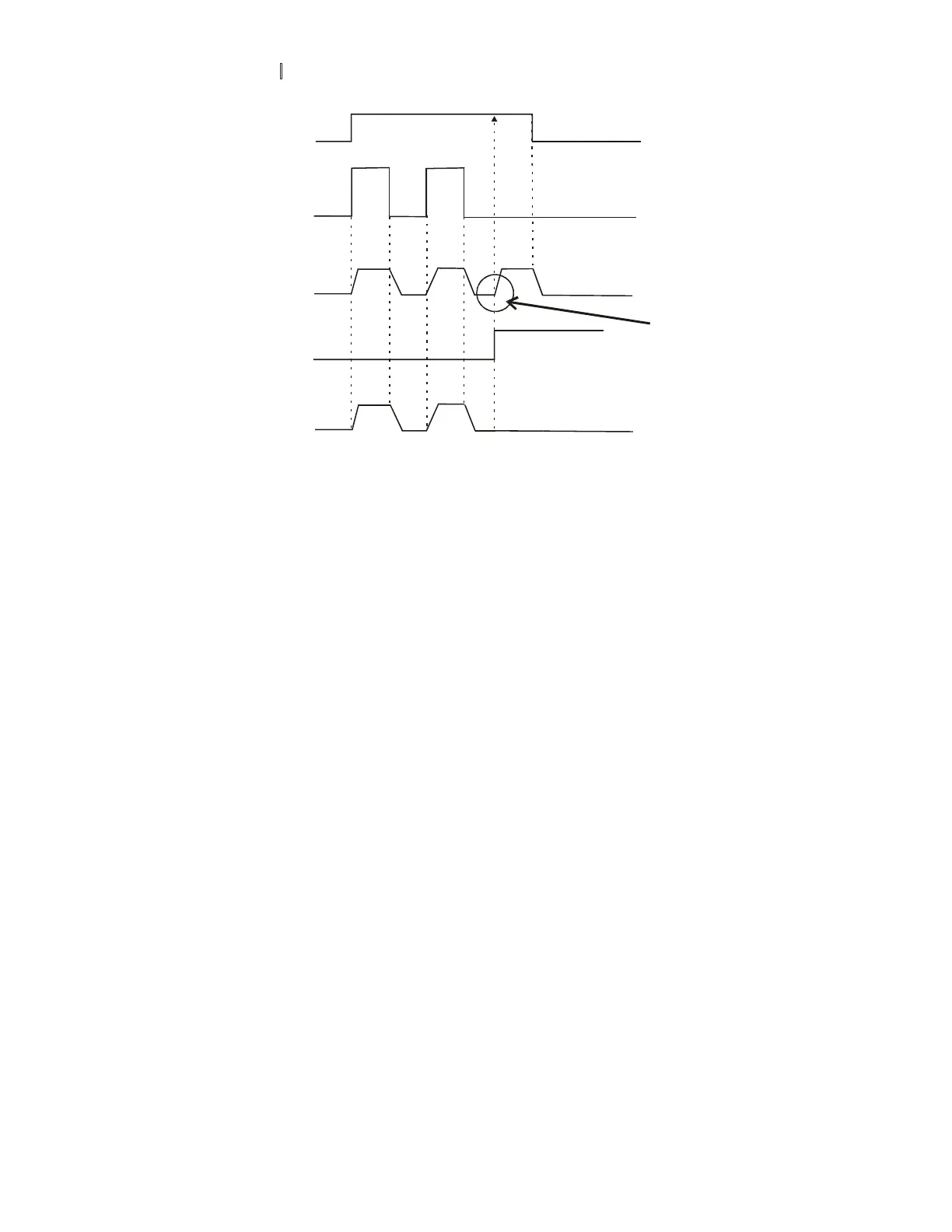

When the operation command source isn’t from the external terminals, independently from whether the AC
motor drive runs or stops, the AC motor drive will operate according to Pr.02-06 if the two conditions below
are both met.
1. When operation command source is changed to external terminal (Pr.02-01=1 or 2, Pr.02-14=1 or 2)
2. The status of terminal and AC motor drive is different.
And the operation of the AC motor drive will be:
1. When setting 0 or 1, the status of AC motor drive is not changed by the terminal status.
2. When setting 2 or 3, the status of AC motor drive is changed by the terminal status.
