SIRIUS
®
TECHNICAL REFERENCE MANUAL

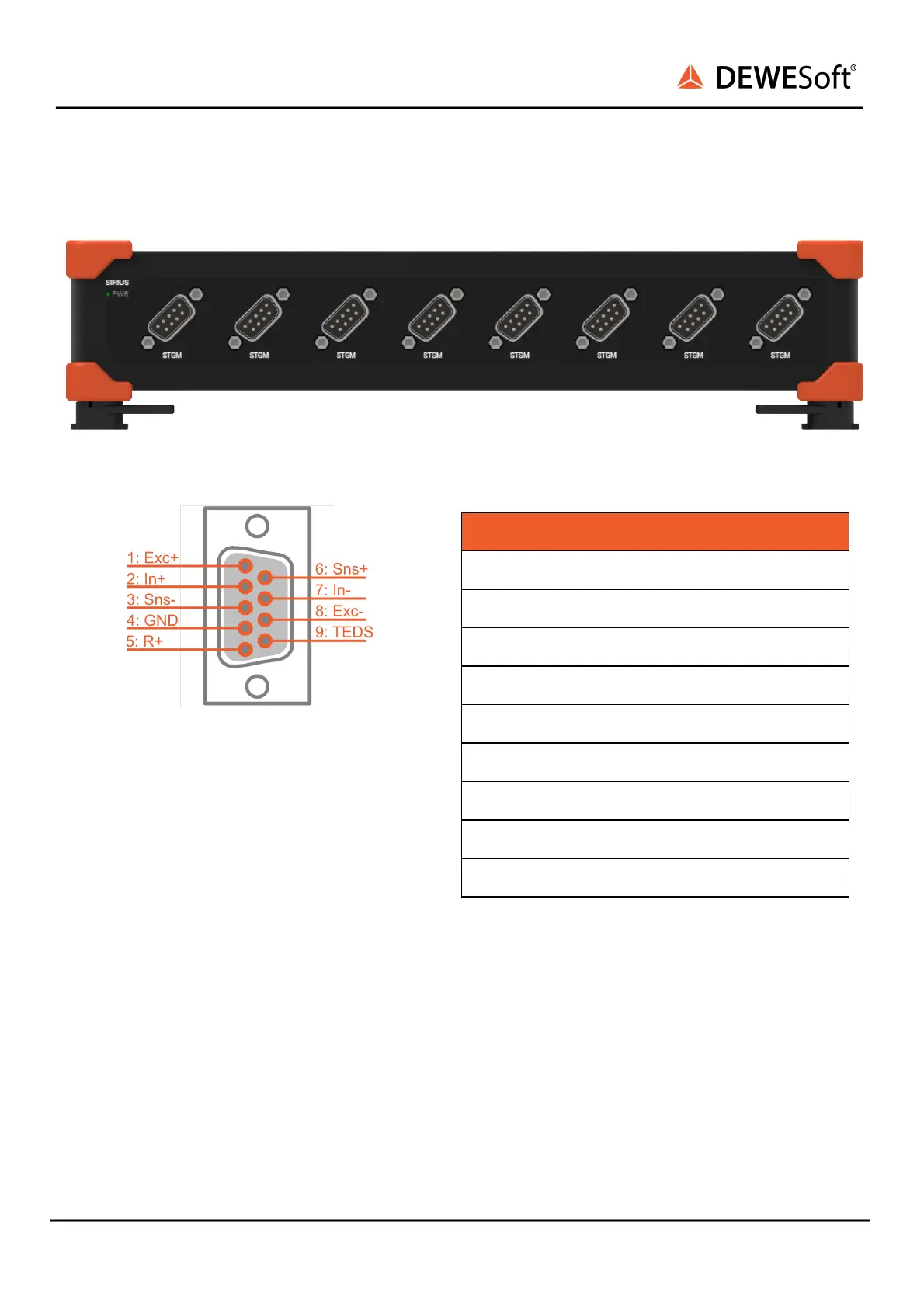

5.13.2. STGM
SIRIUSi-8xSTGM
STGM connector: pin-out (DSUB-9 female)
Pin
Name
Description
1
Exc +
Excitation +
2
In+
Input +
3
Sns-
Sense -
4
GND
Ground
5
R+
¼ Bridge/Shunt
6
Sns+
Sense +
7
In-
Input -
8
Exc-
Excitation -
9
TEDS
TEDS
SIRIUS
®
V20-1 177 / 336
