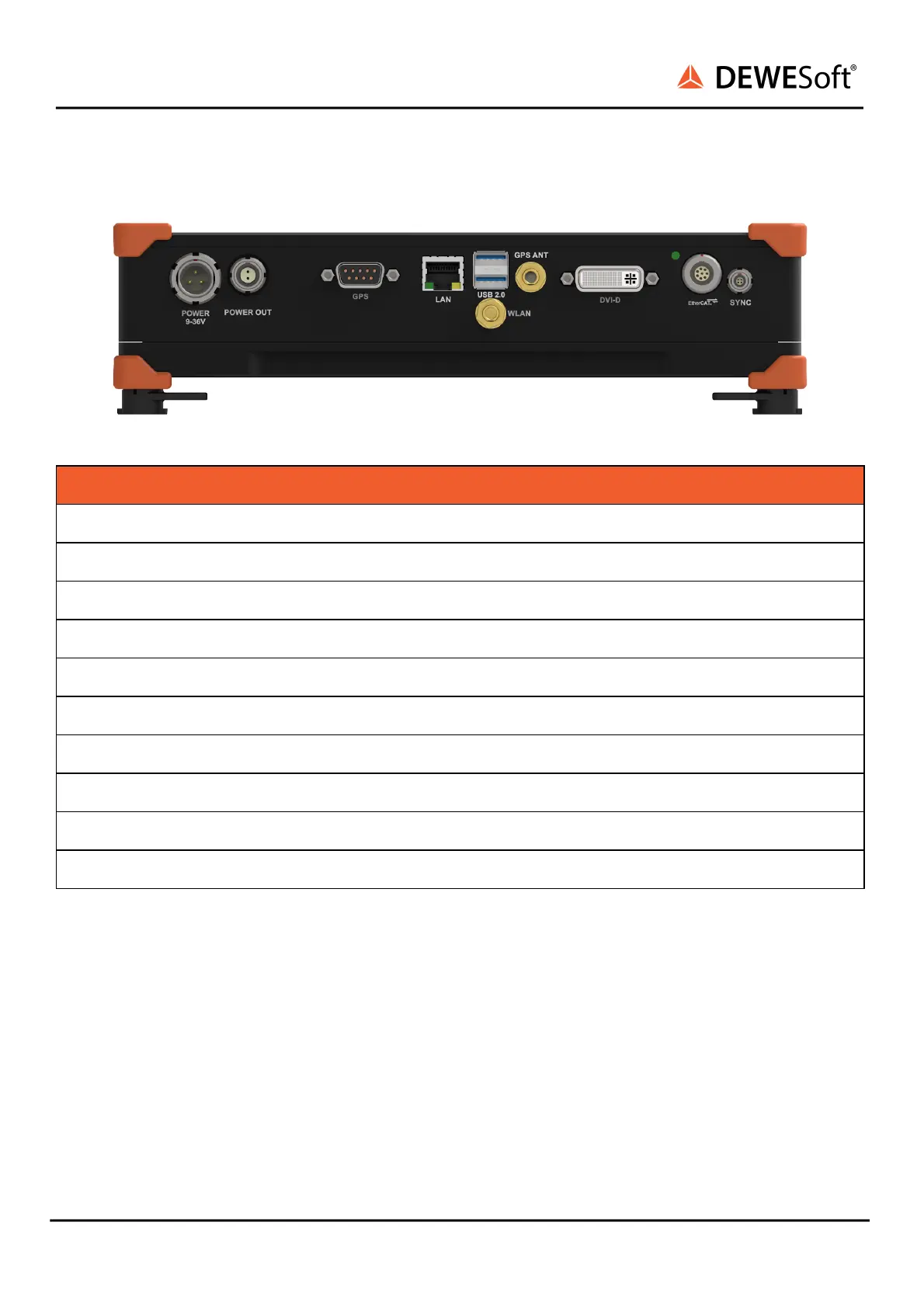

4.5.3. SIRIUS-SBOXe: Rear side
SIRIUS-SBOXe: Connectors at the rear side
Name
Description
POWER 9-36V
3-pin LEMO male connector
POWER OUT
2-pin LEMO female connector
GPS
Connection for external GPS display, PPS, Remote ON
LAN
1x GLAN Ethernet, RJ45 connector
USB 2.0
2 x USB 2.0 connector
WLAN
RP-SMA Female WLAN antenna: WiFi 802.11 b/g/n
GPS ANT
SMA Female GPS antenna
DVI
DVI video out (VGA and HDMI compatible)
EtherCAT
8-pin LEMO female connector
SYNC
4-pin LEMO female sync connector
SIRIUS
®
