SIRIUS
®
TECHNICAL REFERENCE MANUAL

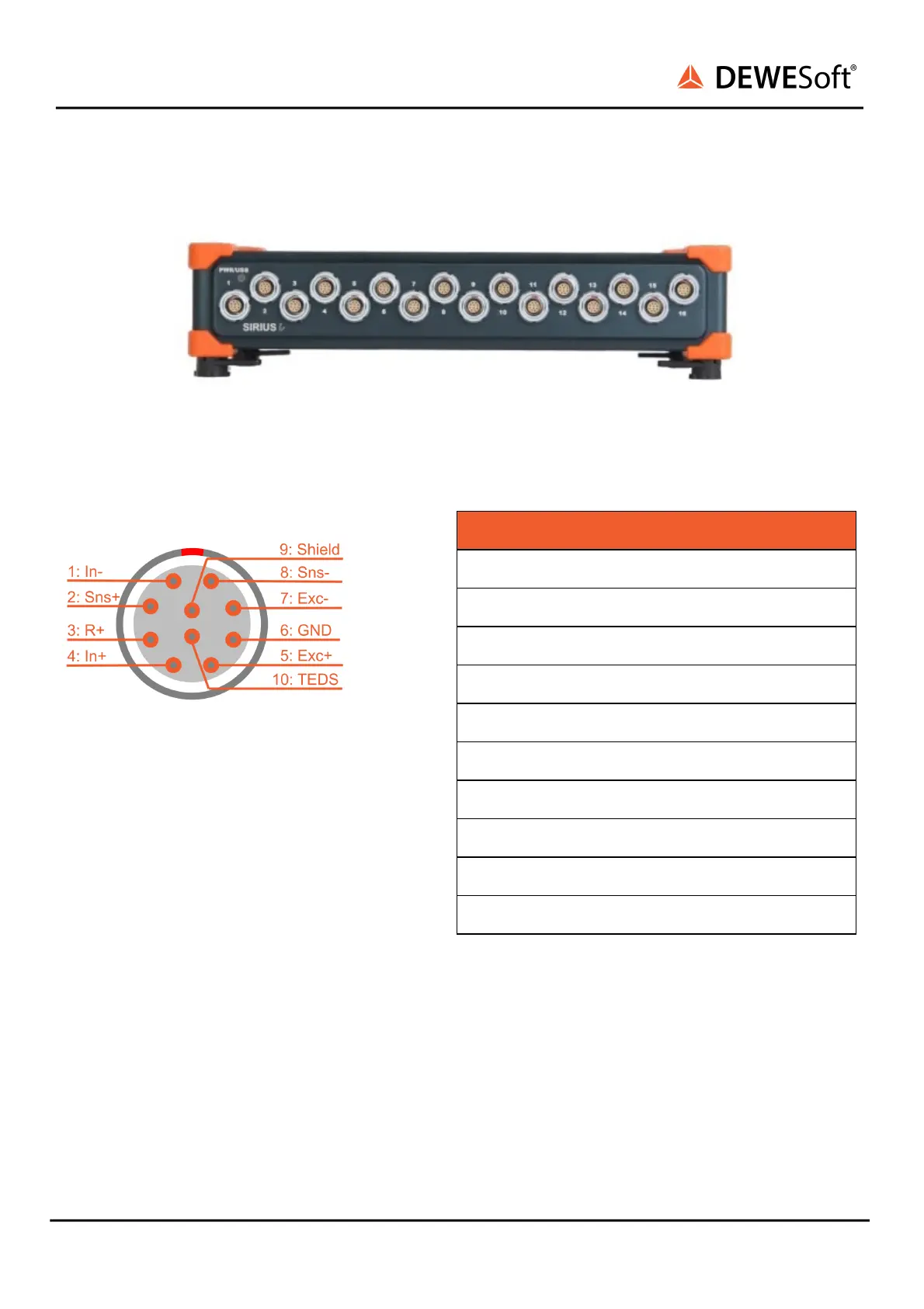

5.17.3. HD-STGS-L1B10f
SIRIUSi-HD-16xSTGS-L1B10f
HD-STGS-L1B10f connector: pin-out (10-pin LEMO female)
SIRIUS Connector: EEG.1B.310.CLN
Mating Connector: FGG.1B.310.CLADxx
Pin
Name
Description
1
In-
Input -
2
Sns+
Sense +
3
R+
¼ Bridge/Shunt
4
In+
Input +
5
Exc +
Excitation +
6
GND
Measurement GND
7
Exc -
Excitation -
8
Sns-
Sense -
9
Shield
connection to chassis
10
TEDS
TEDS
SIRIUS
®
V20-1 224 / 336
