SIRIUS
®
TECHNICAL REFERENCE MANUAL

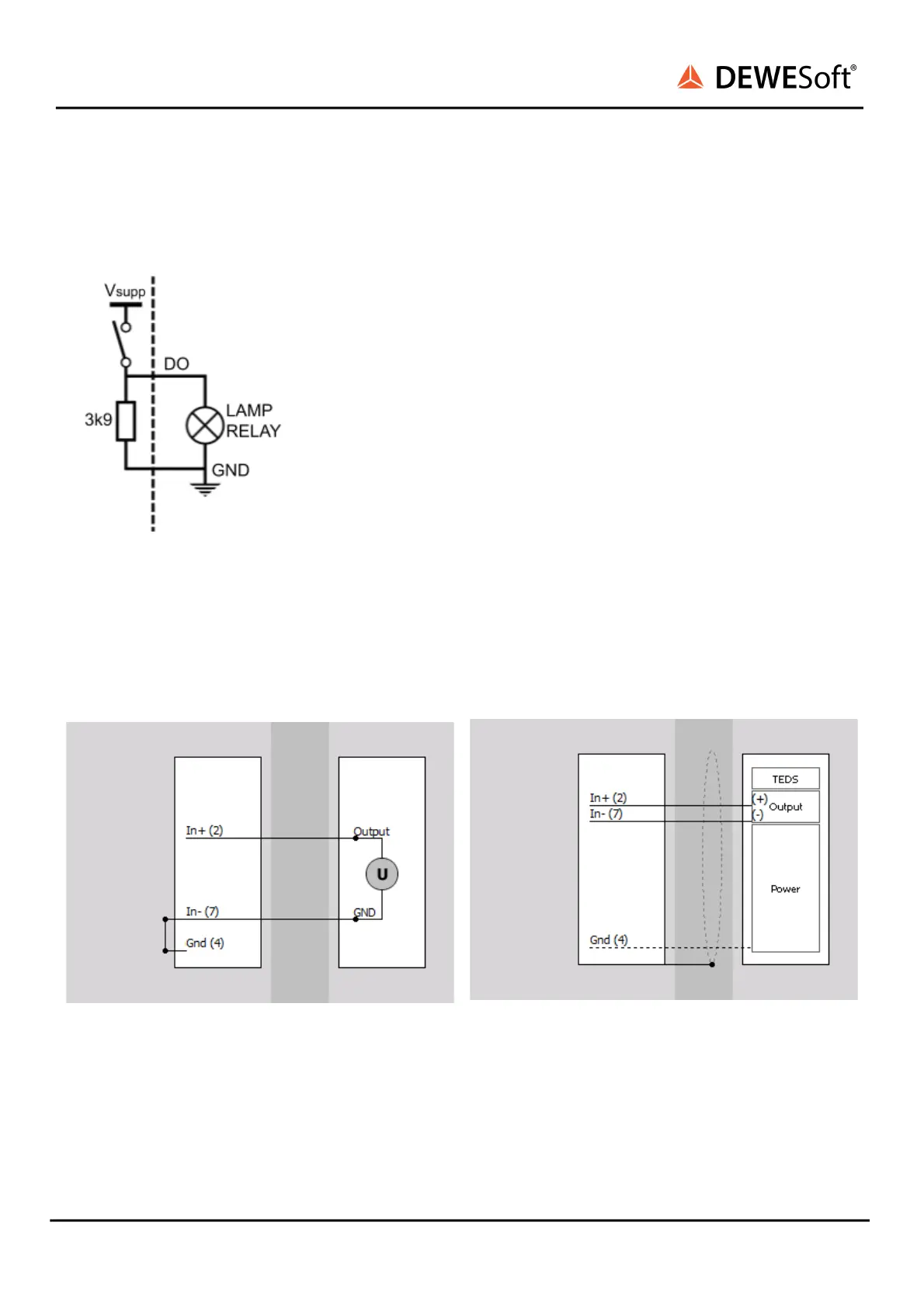

Digital output configuration
5.13.3.1. STGM-DB: Voltage
Voltage - Single ended
Voltage – Differential
Use only when sensor Output (+) and Output (-)
are referenced to Gnd. Gnd must be connected.
SIRIUS
®
V20-1 183 / 336
