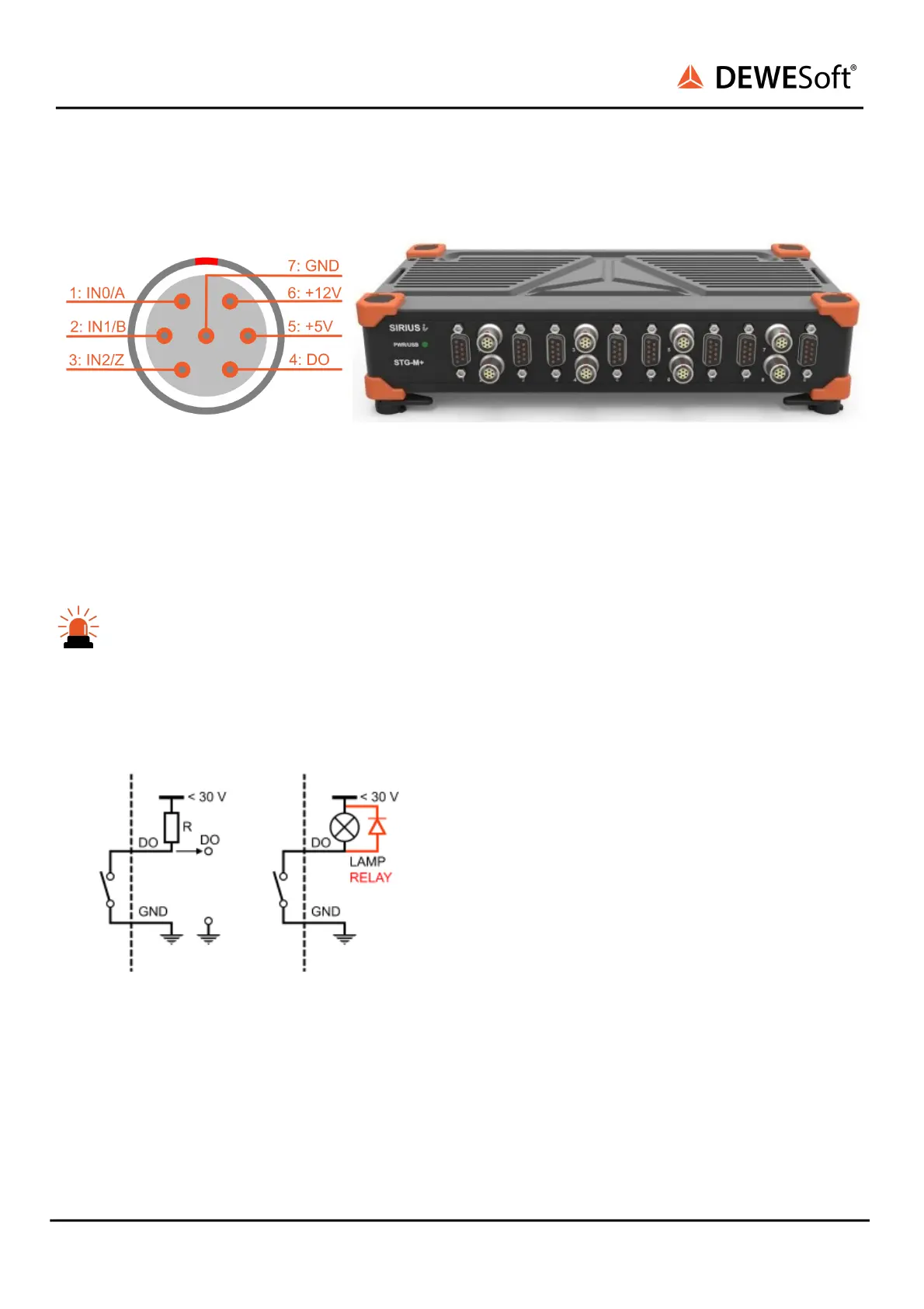

5.14.6. STG+ (Counter)
CNT connector: pin-out (7-pin LEMO
female)
SIRIUSi 8xSTG+
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Caution
GND of the counter input is connected to the GND of the analog channel.
Digital output configuration
The “switch” of the open collector output is closed when active.
