SIRIUS
®
TECHNICAL REFERENCE MANUAL

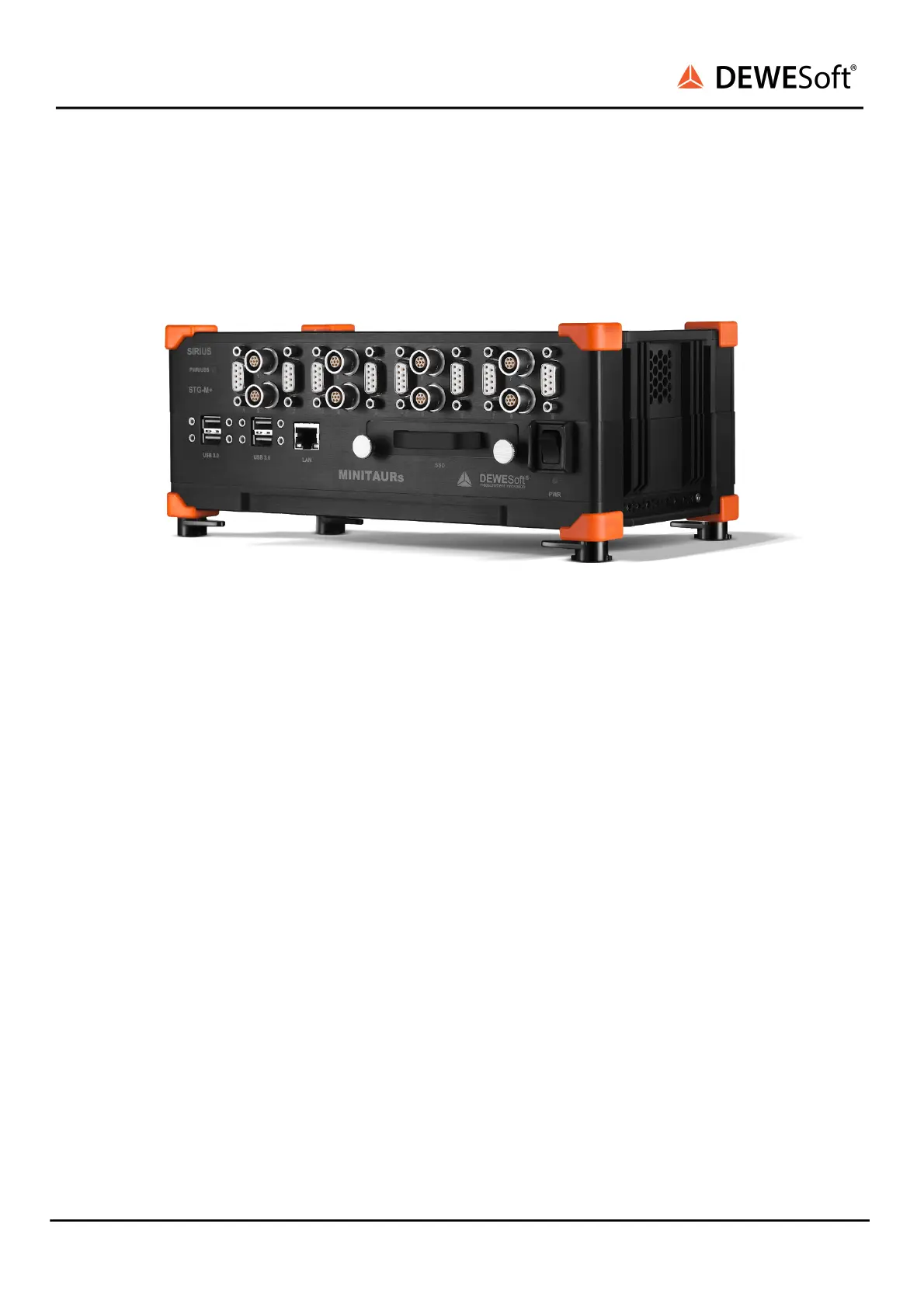

4.13. MINITAURs
Mixed signal data acquisition system and multichannel data logger with cutting-edge technology at an
attractive price.
Main features:
● ALL-IN-ONE DEVICE: Instrument packs powerful data logger and data acquisition device in one
compact chassis. Inside this small instrument lives a powerful Intel Core i3 CPU computer, solid
state drive, WiFi, two LAN ports, four USB 3.0 and two USB 2.0 ports, EtherCAT master port, and
optional 10 Hz or 100 Hz GPS receiver.
● UNIVERSAL ANALOG INPUTS: Instrument can accept voltage and full/half/quarter bridge signals
natively as well as IEPE, charge, thermocouples, RTD, current, resistance and LVDT signals with
the use of DSI adapters.
● 160 dB DYNAMIC RANGE: With our DualCoreADC® technology all analog inputs boost dual 24-bit
delta-sigma with the anti-aliasing filter, achieving astonishing 160 dB dynamic range in time and
frequency domain.
● SENSOR POWER SUPPLY: Amplifiers provide channel-independent, programmable sensor
power supply.
● DIGITAL/COUNTER/ENCODER INPUTS: Each channel is capable of 3x digital inputs, 1x event
counter, encoder, period, pulse-width, duty-cycle. Precise frequency and angle measurement
use patented SUPERCOUNTER® technology.
● ISOLATED CAN INPUT: High speed CAN 2.0b channels with 1 Mbit/sec data throughput with
additional support for CCP, OBDII, J1939, and CAN output.
● FULLY SYNCHRONIZED: Each channel, analog, digital or CAN is synchronized with microsecond
accuracy.
SIRIUS
®
V20-1 99 / 336
