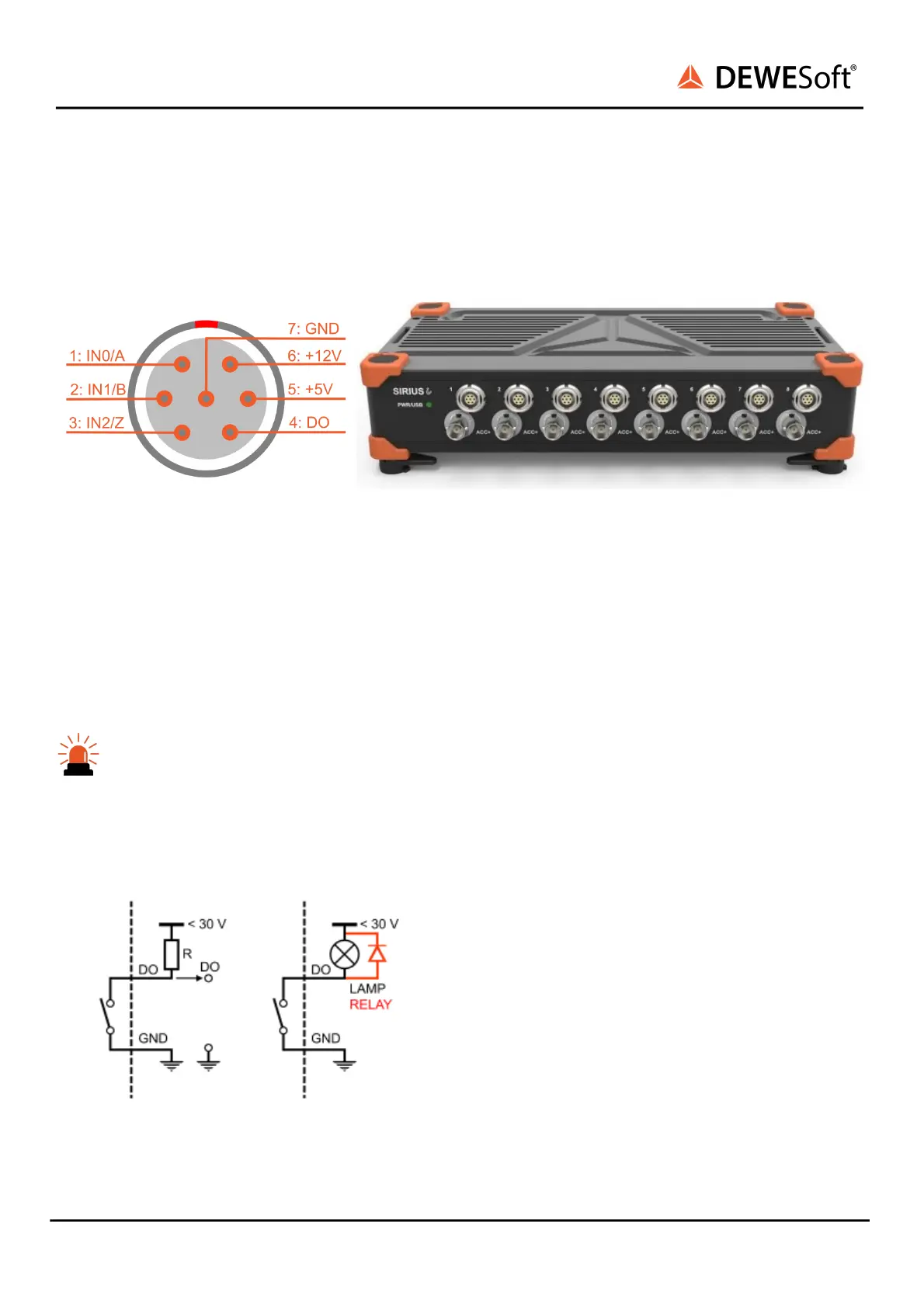

5.18.3. HS-ACC+ (Counter)
The HS-ACC+ modules are perfect for high speed sound and vibration IEPE channels plus counter
applications. In addition to the HS-ACC module, it also has a 7-pin Lemo connector for digital counters.
CNT connector: pin-out (7-pin LEMO
female)
SIRIUSi-HS-8xACC+
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Caution
GND of the counter input is connected via a 50 Ω resistor to In- of the analog channel.
Digital output configuration
The “switch” of the open collector output is closed when active.
