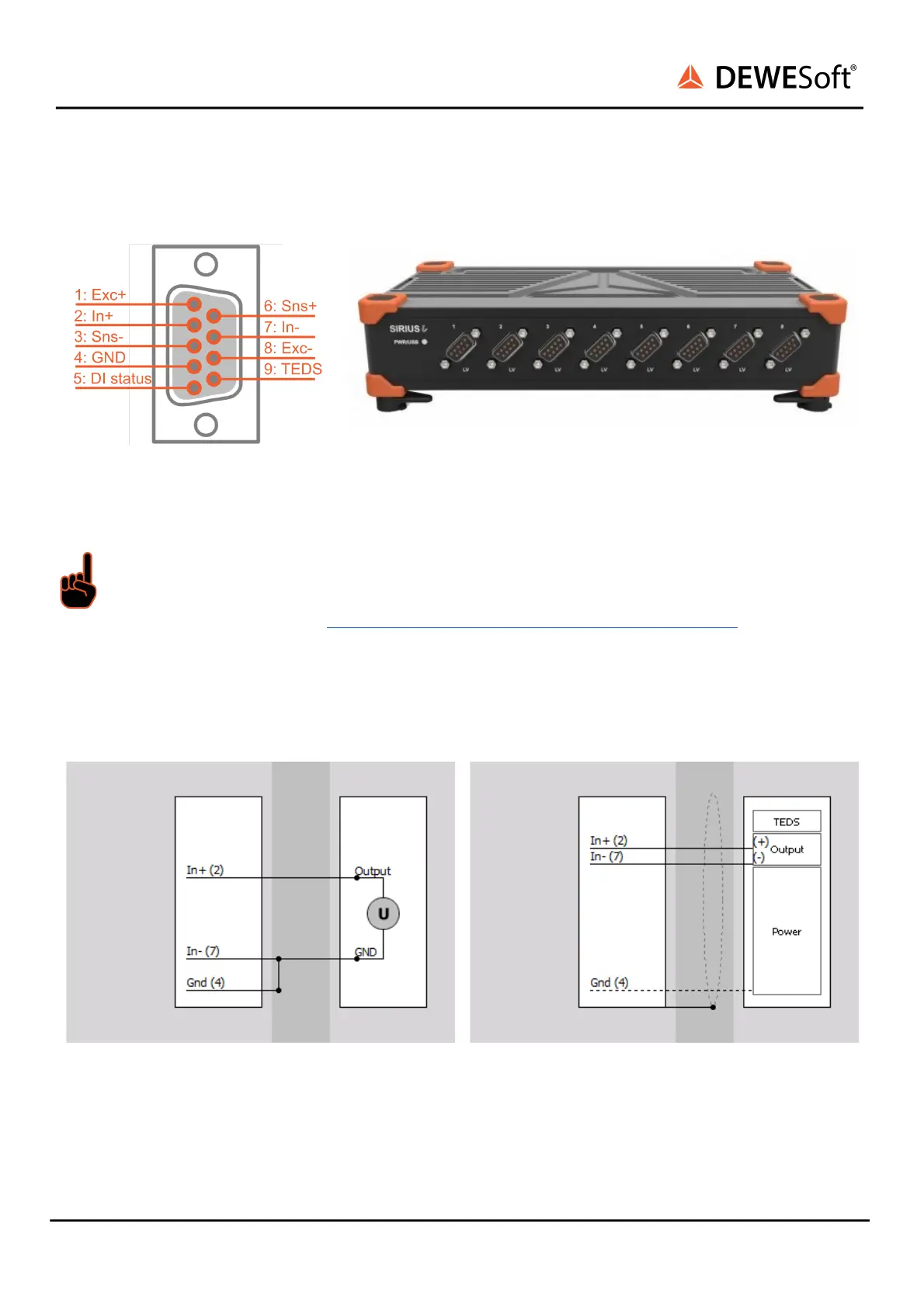

5.21.2. HS-LV 

HS-LV connector: pin-out (DSUB-9 

female) 



SIRIUSi-HS-8xLV 



Important 

Digital status input 

Pin 5: DI Status is used for digital status input: i.e. show alarm status in DEWESoft® when a                  

current clamp is open. See “ Accessories and Sensors Technical Reference Manual ”! 

5.21.2.1. HS-LV: Voltage 

Voltage - Single ended 



Voltage – Differential 

Use only when sensor Output (+) and Output (-) 

are referenced to Gnd. Gnd must be connected.



SIRIUS

V20-1 240 / 336  
