DITEC LCU30H User Manual

25
IP2251EN

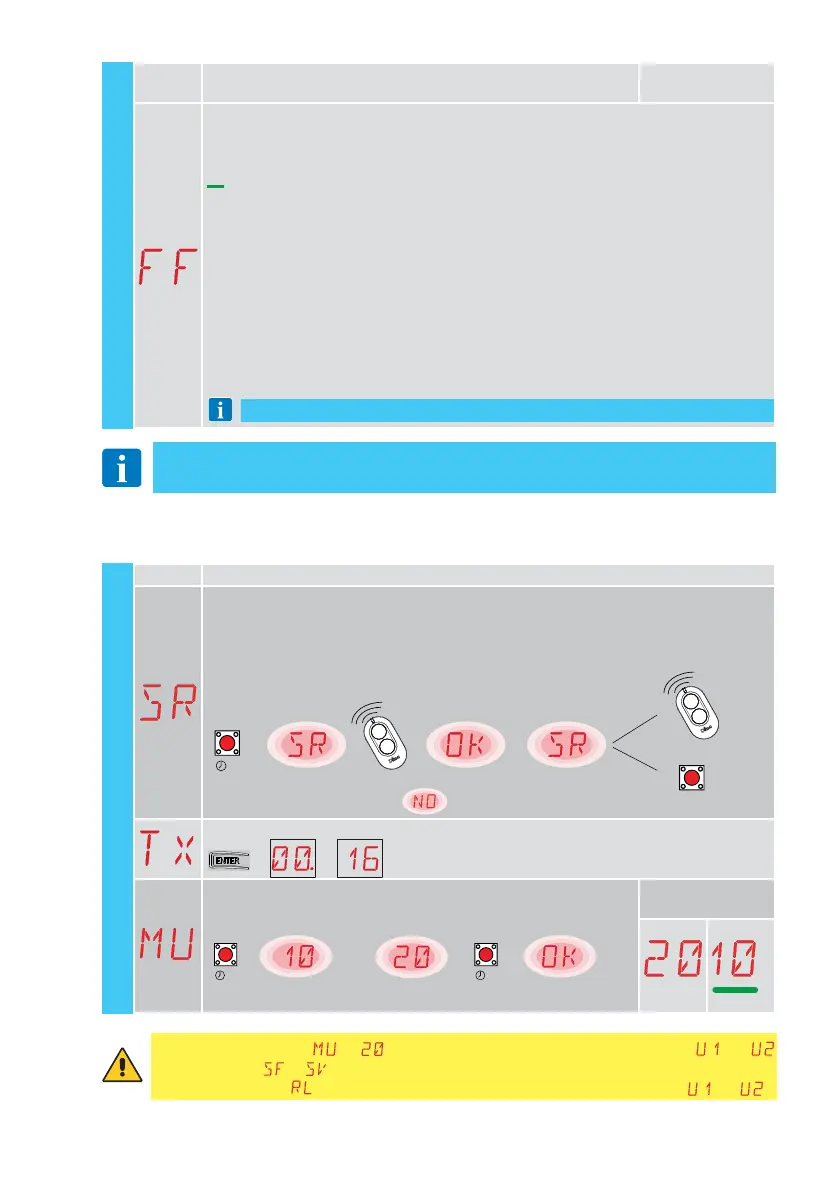

BA - Basic adjustment
Display Description
Selections
available
FF - Function of output +LP-
00 - courtesy light
01 - electric lock
02 - electric lock + release stroke
03 - ON-OFF flashing light
04 - ON-OFF flashing light for LED without oscillator
05 - fixed light with internal oscillator
06 - proportional indicator light for open gate (with signal of battery operation)
07 - fixed indicator light for open gate (automation not closed)
08 - automation closed (for fail-safe electromagnets)
09 - automation open
10 - automation moving (can also be used for electromagnets that need to be powered
throughout the operation)
11 - automation opening
12 - automation closing
13 - maintenance alarm
14 - signal for batteries almost flat
ON - output always active
NOTE: with FF 13 or 14, a 10Ω 20W resistor must be inserted in series with the electric lock
NOTE: make adjustments gradually and only after performing at least three complete oper-
ations to allow the control panel to be set correctly and detect any friction during operations.
11.5 Second level menu - RO (Radio Operations)
Display Description
SR - Remote control storage
You can directly access the Remote control storage menu even with the display turned off, but
only with the Display visualisation mode option set to 00 or 03:
for transmitting a remote control not present in the memory;
for transmitting an unstored channel of a remote control already present in the memory.
→→→
→
→
→
...x2, x3...
2”
ENTER
ESC
WARNING: if the display shows flashing, the remote control may already be stored.
TX - Visualisation of counter showing remote controls stored
→→ → 16 radiocomandi [esempio]
MU - Indication of maximum number of remote controls that can be
stored in the integrated memory
You can store a maximum of 100 or 200 remote control codes.
→→
→
oppure
2
”
ENTER
2
”
ENTER
20 - 200 remote controls that can be stored
10 - 100 remote controls that can be stored
Selections
available
WARNING: selecting → (200 remote controls), the configurations and
saved with the → command will be lost. This also applies for the last configura-
tion reloaded with . In addition, new configurations cannot be saved on and .
RO - Radio operations
16 remote controls (example)
