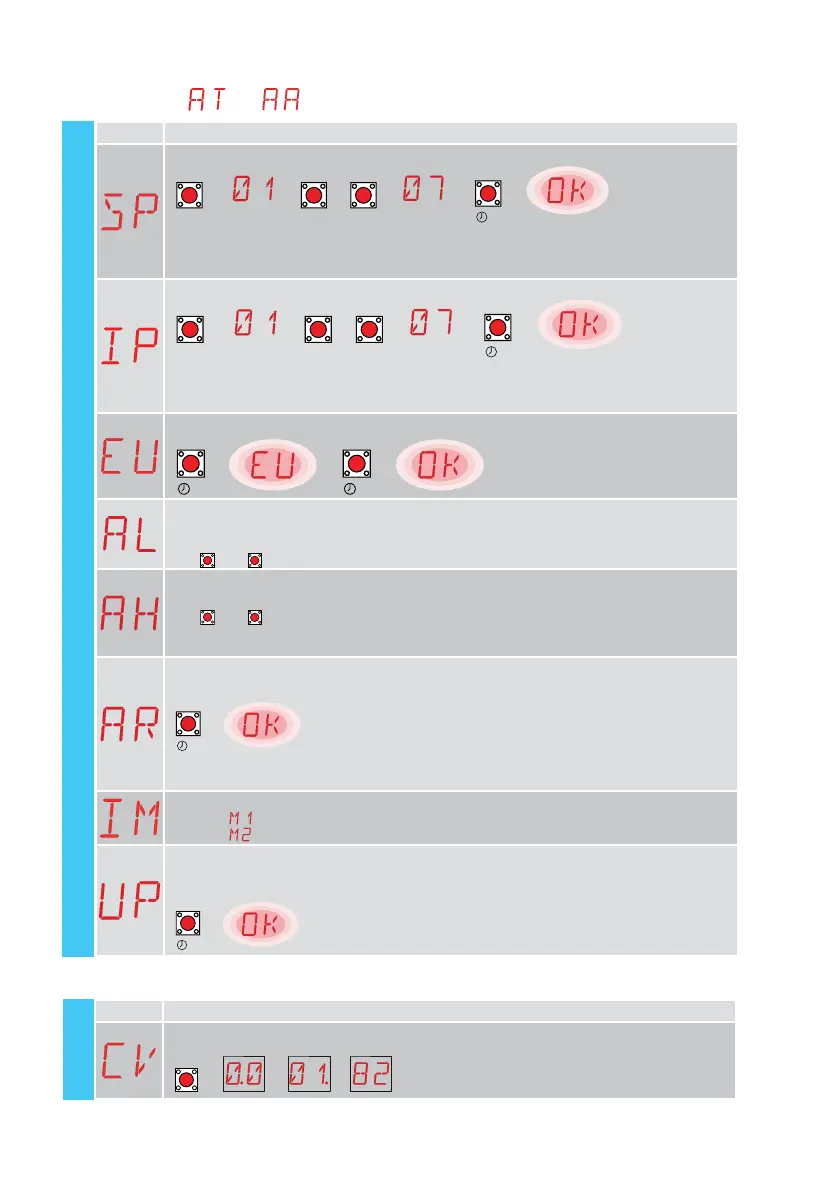

Display Description
SP - Setting the password
ENTER UP DOWN
2”
ENTER
[esempio]
→→
/
→→→
NOTE: this can only be selected when the password is not set.
Setting the password prevents unauthorised personnel from accessing selections and adjust-
ments. You can delete the set password by selecting the sequence JR1=ON, JR1=OFF, JR1=ON.
IP - Inserting the password
ENTER UP DOWN
2”
ENTER
[esempio]
→→
/
→→→
NOTE: this can only be selected when the password is set.
When the password is not inserted, you can access the display mode regardless of the selec-
tion made with JR1. When the password is inserted, you can access in maintenance mode.
EU - Deletion of user configurations and last configuration set in the storage module
→
→→
2”
ENTER
2”
ENTER
AL - Alarm counter
Used to view, in sequence, the counters of alarms that have been triggered at least once
(alarm code + number of times triggered).
With
UP
and
DOWN
, you can scroll through all the counters and see all the alarms recorded.
AH - Alarm log
Used to view, in sequence, alarms that have been triggered (maximum 20).
With
UP
and
DOWN
, you can scroll through the entire alarm log.
The display shows the alarm number and code, alternated. The highest number corresponds
to the most recent alarm and the lowest number (0) corresponds to the oldest alarm.
AR - Alarm reset
Resets all the alarms in the memory (counters and log).
→
2”
ENTER
NOTE: when the installation has been completed, you are advised to delete the alarms in
order to facilitate future checks.
IM - Motor current visualisation
Selecting
, the display will show the current absorbed by motor 1.
Selecting
, the display will show the current absorbed by motor 2.
UP - Firmware update
Activates the card bootloader in order to update the firmware through AMIGO software and
USBPROG interface
→
2”
ENTER
11.6.1 Additional SF level parameters that can be configured (availa-
ble with
→ enabled)
SF - Special Functions
(example)
11.7 Second level menu - CC (Cycles Counter)
Display Description
CV - Display of total operations counter
→→→ → 182 manovre [esempio]
ENTER
CC
182 operations (example)
(example)
