12.2 Display of safety devices and commands
NOTE: the safety device and command display mode is only visible with Display visualis-
ation mode set at 01 or 03.

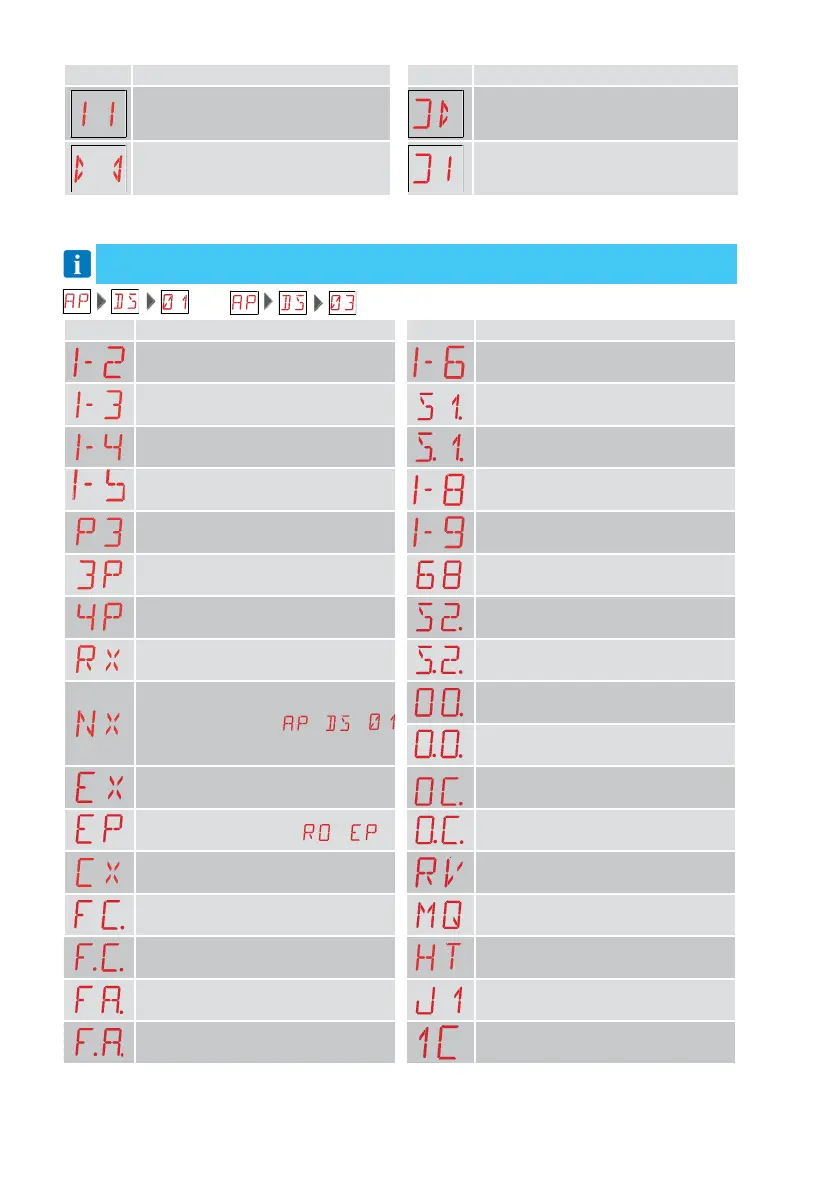

Display Description Display Description
1-2 - Automatic closing activation com-
mand
1-6 - Safety device with opening and clos-
ing stop
1-3 - Opening command S1. - Detection of stop during closure -
motor 1
1-4 - Closing command S.1. - Detection of stop during closure -
motor 2
1-5 - Step-by-step command 1-8 - Safety with closing reversal
P3 - Partial opening command. 1-9 - STOP command
3P - Opening command with operator
present
68 - Partial opening command
4P - Closing command with operator
present
S2. - Detection of stop during opening -
motor 1
RX - Radio reception (of any memorised key
of a transmitter present in the memory)
S.2. - Detection of stop during opening -
motor 2
NX - Radio reception (of any non-memo-
rised key)
NOTE:
with the selection → →
, it is also visualised when a command is
received from a non-stored transmitter.
OO. - Reaching of obstacle detection limit
during opening - motor 1
O.O. - Reaching of obstacle detection lim-
it during opening - motor 2
EX - Rolling-code radio reception out of
sequence
OC. - Reaching of obstacle detection limit
during closing - motor 1
EP - Radio reception not complying with the
parameter configuration
→
O.C. - Reaching of obstacle detection lim-
it during closing - motor 2
CX - Command received from AUX1 board RV - Enabling/disabling of built-in radio
receiver via RDX
FC. - Closure limit switch - motor 1 MQ - Learning operation of mechanical
end stops in progress
F.C. - Closure limit switch - motor 2 HT - Heating of the motors (NIO function)
in progress
FA. - Opening limit switch - motor 1 JR1 - Variation of the JR1 jumper status
F.A. - Opening limit switch - motor 2 1C - Closing operation (1 gate wing at a
time)
Display Description Display Description
Automation stopped in intermediate
position
Automation in partial opening
Automation closing Automation partially open
