DE08TS Diesel Engines
General Information

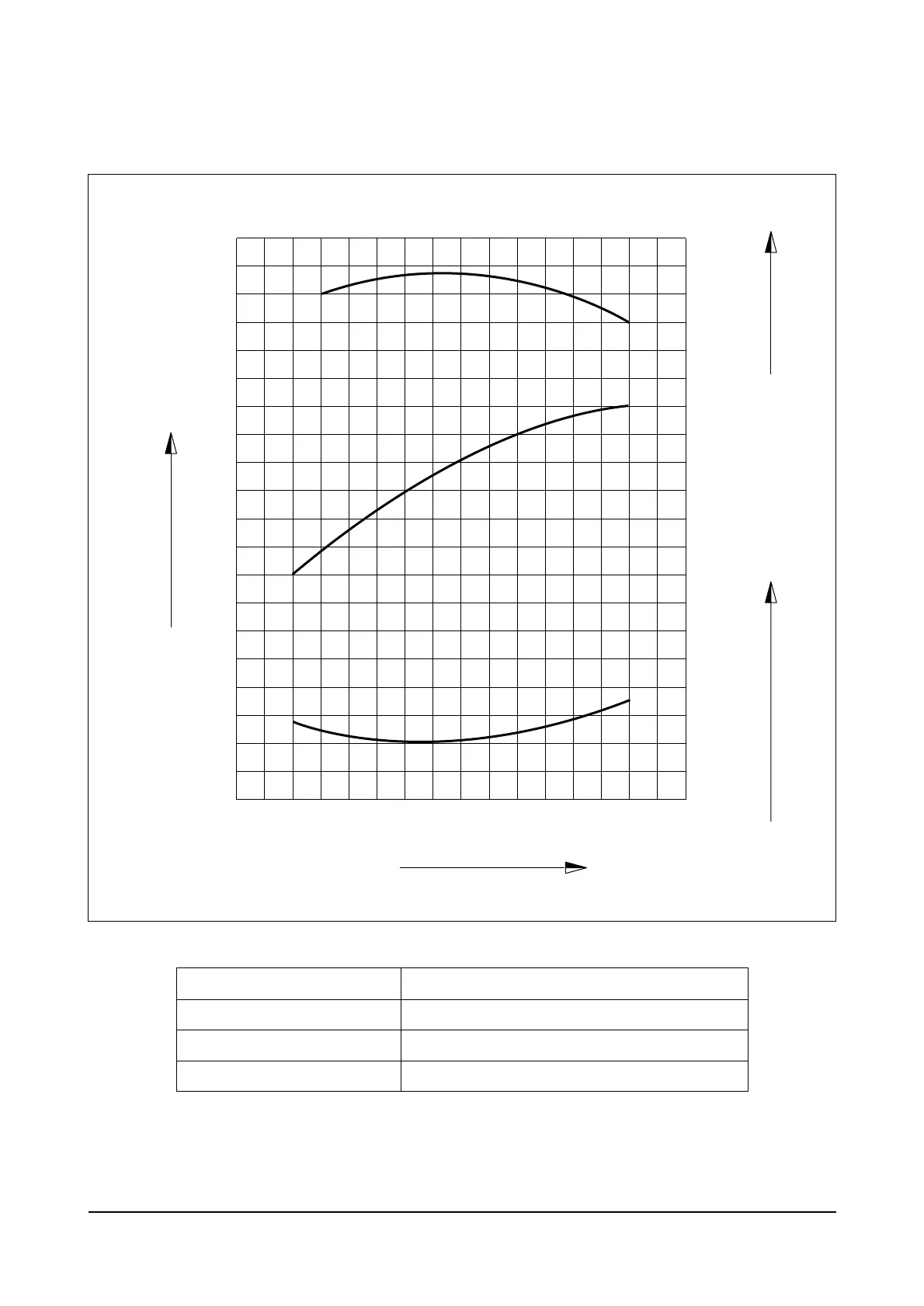

Performance curve (DE08TS - 140PS)
8
50
100
150
1000
1400
1800
2200
150
160
170
180
45
50
55
POWER OUTPUT (PS)
TORQUE (kg
m)
.
FUEL
CONSUMPTION (g/ps
h)
.
REVOLUTION (rpm)
Standard
KS-R1004
Rated Power
140 ps / 2,200 rpm
Max T
orque
55 kg.m / 1,400 rpm
Fuel consumption
180 g / PS.h
9
11
Table of Contents
Default Chapter
5
Table of Contents
5
General Information
7
General Repair Instructions
7
Engine Specific Character
7
OMEGA Combustion Bowl
7
Engine Specifications
8
Specifications
8
Remove & Install Forks
9
Performance Curve(DE08TS-140PS)
10
Performance Curve(DE08TS-160PS)
11
Engine Assembly
12
Engine Sectionnal View(Longitudinal)
12
Engine Sectionnal View(Cross)
13
Engine Assembly View
14
Major Maintenance
15
Preventive Maintenance
15
Cooling Water
15
Fan Belt
16
Engine Oil
16
Oil Filter
17
Fuel Filter
17
Valve Clearance Adjust Procedure
17
Cylinder Compression Pressure
18
Injection Nozzle
19
Fuel Injection Pump
19
Air Removal of Fuel System
19
Fuel Supply Pump
19
Turbocharger
19
Starting Motor
19
Diagnosis and Remedy
20
Maintenance
29
Engine Disassembly
29
Heed at Disassembly
29
Oil Level Gauge
29
Engine Oil
29
Cooling Fan
29
Belt
29
Thermostat
29
Starter
30
Fuel Filter
30
Breather
30
Alternator
30
Oil Cooler
30
Oil Filter
31
Air Compressor (if Equipped)
31
Idle Pulley
31
Water Pump
31
Cylinder Head Cover
32
Fuel Injection Nozzle
32
Turbo Charger
32
Exhaust Manifold
32
Intake Manifold
33
Cooling Water Pipe
33
Rocker Arm
33
Cylinder Head
34
Oil Pan
34
Vibration Damper
35
Timing Gear Case Cover
35
Oil Pump
35
Piston and Connecting Rod
35
Cylinder Liner
36
Camshaft Gear and Idle Gear
36
Fuel Injection Pump
37
Water Chamber Cover
37
Fly Wheel
37
Fly Wheel Housing
37
Injection Pump Drive Gear
37
Timing Gear Case
38
Bearing Cap
38
Crankshaft
38
Camshaft and Tappet
38
Oil Spray Nozzle
38
Inspection and Measurement on Major Parts
39
Cylinder Block
39
Cylinder Head
39
Rocker Arm Assembly
43
Camshaft
44
Crankshaft
45
Fuel Injection Nozzle Projection
51
Engine Reassembly
51
General Precautions
51
Cylinder Block
51
Oil Spray Nozzle
51
Tappet and Cam Shaft
52
Crankshaft
52
Flywheel Housing
54
Oil Seal
54
Flywheel
54
Magnetic Pick-Up Sensor
55
Water Chamber Cover
55
Cylinder Liner
55
Piston and Connecting Rod
56
Timing Gear Case
57
Timing Gear and Idle Gear Pin
58
Injection Pump Flange
58
Fuel Injection Pump
59
Oil Pump and Oil Pipe
60
Timing Gear Case Cover
60
Front Oil Seal
60
Water Pump
60
Vibration Damper
61
Oil Pan
61
Oil Filter
61
Appendix
62
Oil Cooler
62
Starter
62
Intake and Exhaust Valves
62
Cylinder Head
63
Rocker Arm Assembly
64
Intake Manifold
66
Exhaust Manifold
66
Turbocharger
66
Cooling Water Pipe
67
Idle Pulley
67
Air Compressor(if Equipped) & Power Steering Pump
67
Alternator
67
Fuel Filter
68
Injection Nozzle
68
Fuel Injection Pipe
68
Cylinder Head Cover
68
Cooling Fan
69
Belt
69
Oil Level Gauge
69
Others
69
Breaking in
70
Operation of a New Engine
70
Check Points for Break-In
70
Maintenance of Major Components
71
Cooling System
71
General Information
71
Specifications
72
Thermostat
72
Diagnostics and Troubleshooting
73
Lubrication System
74
General Descriptions and Specifications
74
Oil Pump
75
Diagnostics and Troubleshooting
76
Fuel Injection Pump
77
General Information of Fuel System
77
Injection Pump
77
Fuel Feed Pump
82
Injection Nozzle
86
Diagnostics and Troubleshooting
88
Turbocharger
90
Main Data and Specifications
90
General Descriptions
91
Functions
92
Precaution for Operation
93
Walk-Around Check and Servicing
94
Periodical Checking and Servicing
95
Diagnostics and Troubleshooting
97
Special Tool List
98
