DE08TS Diesel Engines Maintenance

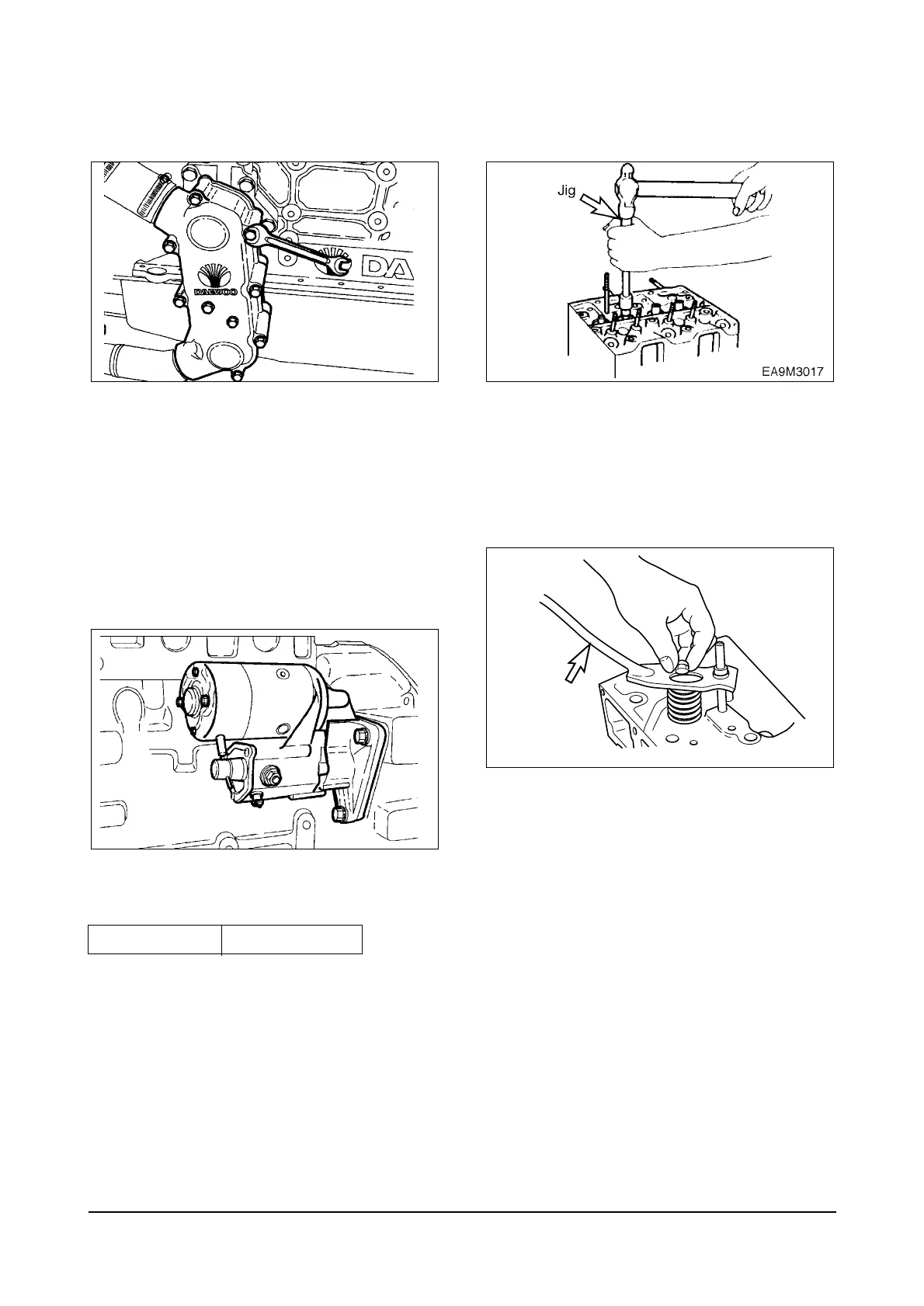

Oil cooler
1. Install the gasket on the cylinder block.
2. Assemble the oil cooler by tightening the assem-
bling bolts.
3. Connect the cooling water pipe with the cooling
water pump and tighten a hose clamp.
Starter
1. Assemble the starter in position on the flywheel
housing.
Intake and exhaust valves
1. Identify the marks of “IN” and “EX” impressed on
the valve head before assembling the valve with
the valve head.
2. With a valve stem seal fitting jig, assemble the
valve stem seal on the valve guide.
3. After installing valve springs and spring retainer,
press the retainer with a jig, then install the cotter
pin.
4. Tap the valve stem lightly with a rubber hammer to
check that the valve is assembled correctly.
Compressor
the spring
EA0M4007
60
Torque 8.0 kg
•
m
