DE08TS Diesel Engines Maintenance of Major Components
Turbocharger
Main data and specifications
1. Main data and specifications

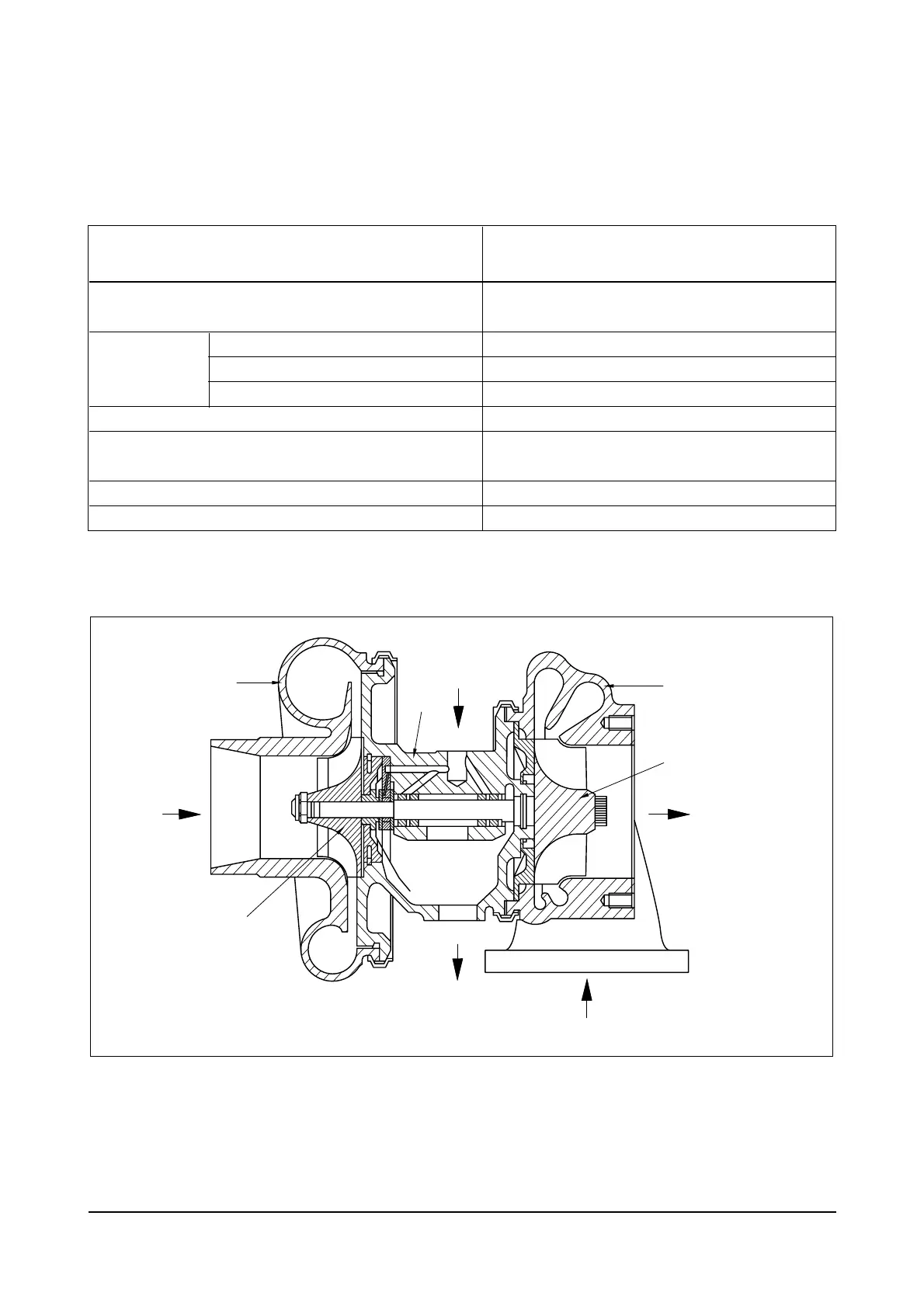

2. Construction
1. Impeller casing A. Air inlet
2. Turbine casing B. Gas outlet
3. Bearing casing C. Gas inlet
4. Impeller D. Oil supply
5. Turbine E. Oil return
88
Specification DE08TS
Turbocharger model
ALLIED SIGNAL
466721-7
Air pressure at compressor outlet 1.26 kg/cm
2
At maximum
Air suction volume 16.8 m
3
/min
output
Speed of turbine revolution 102,800 rpm
Maximum allowable speed 126,150 rpm
Max. allowable temperature of exhaust gas at
turbine inlet
750
˚C
Lubricating system External oil supply
Weight 9.5 kg
C
5
3
2
B
E
4
1
A
D
EA05008I
