Doosan DE08TS - Engine Assembly; Engine Sectionnal View(Longitudinal)

DE08TS Diesel Engines General Information
Engine Assembly

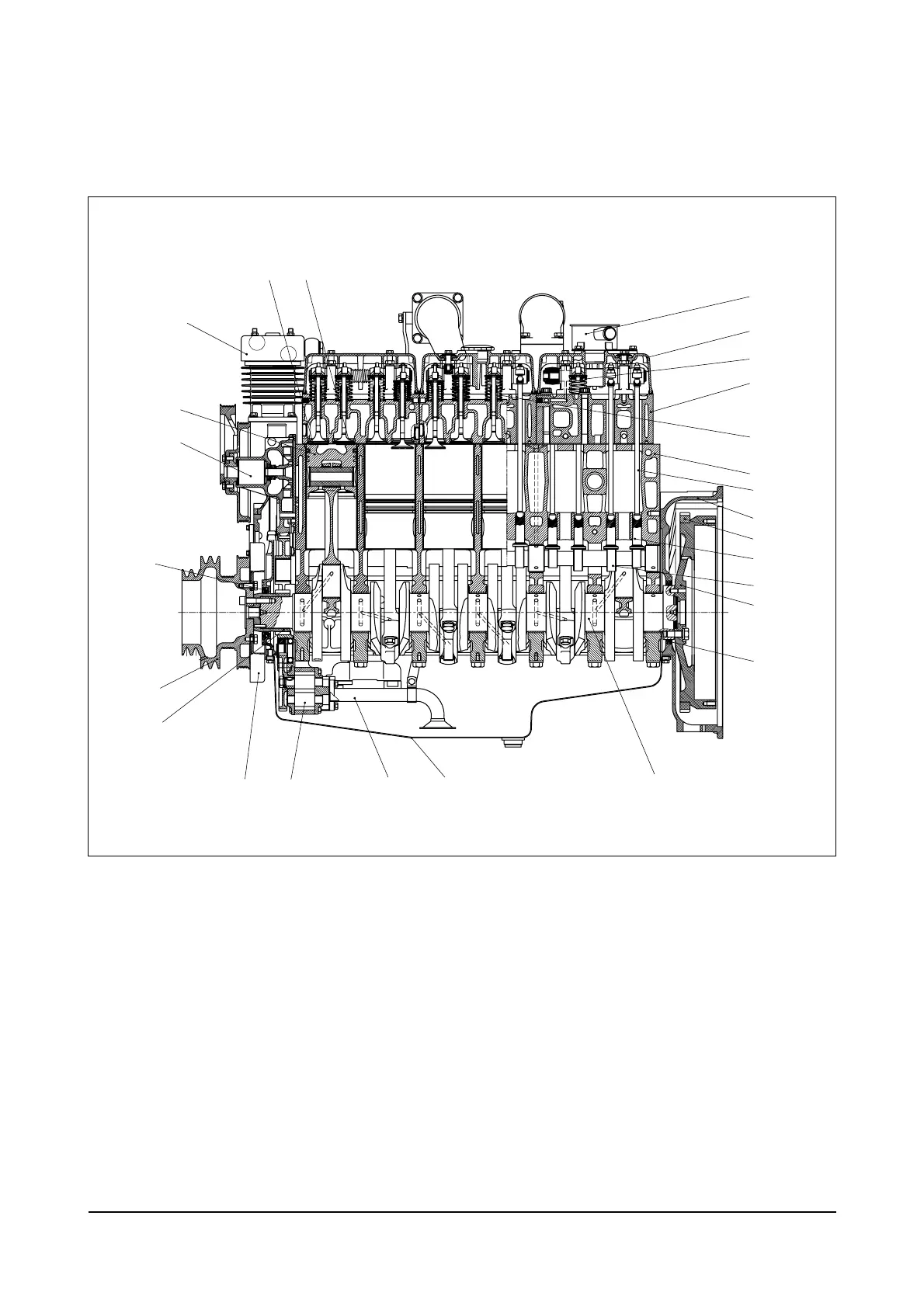

Engine sectional view (longitudinal)
1. Water pump 10. Intake valve spring 19. Oil seal (Front)
2. Piston 11. Cylinder block 20. Crank shaft pulley
3. Air compressor (if equipped) 12. Push rod 21. Crank shaft gear
4. Intake valve 13. Flywheel housing 22. Vibration damper
5. Exhaust valve 14. Ring gear 23. Oil pump
6. Breather 15. Tappet 24. Oil suction pipe
7. Cylinder head cover 16. Cam shaft 25. Oil pan
8. Exhaust valve spring 17. Fly wheel 26. Crank shaft
9. Cylinder head 18. Oil seal (Rear)
10
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
26
25
24
23
22
21
20
19
1
2
3
EB5O1004
