DE08TS Diesel Engines Maintenance

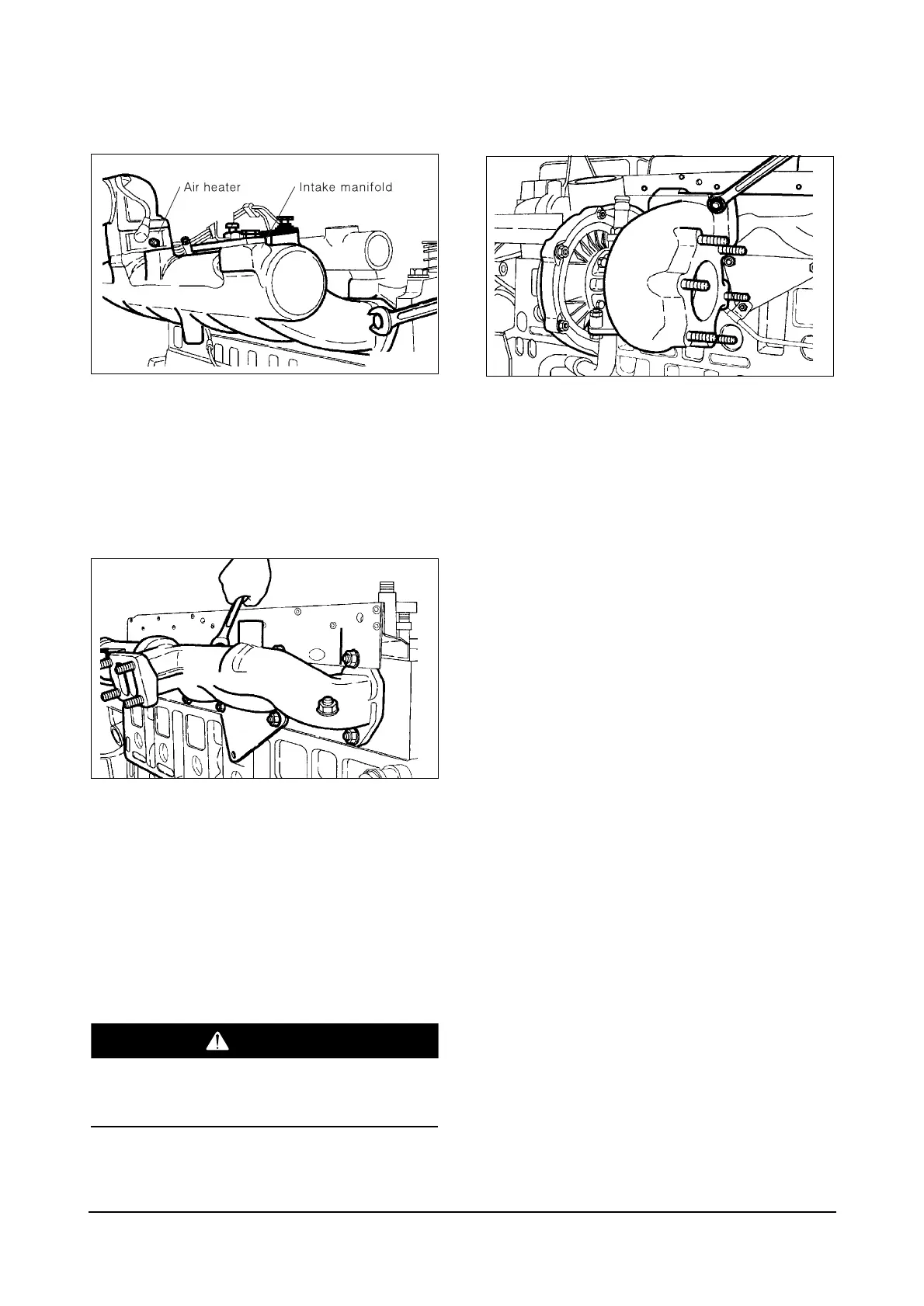

Intake manifold
1. Put in the new gasket between the cylinder head
and manifold, and assemble the intake manifold
by tightening the assembling bolts.
Exhaust manifold
1. Install the exhaust manifold gasket over the stud
bolts by aligning the gasket with the exhaust port
on the cylinder head so that the face and back of
the gasket can be positioned correctly.
2. Semi-assemble the exhaust manifold and install
the heat resisting plate.
3. Assemble them by tightening the assembling
bolts. The tightening order of bolts is from the mid-
dle to left and right alternately.
For upper and lower bolts differ in the length, so
use the correct bolts.
Turbocharger
1. Fit a new gasket over the stud bolts of the exhaust
manifold before tightening those turbocharger fix-
ing nuts.
2. Install the oil supply pipe and return pipe.
3. Tighten the clamps of rubber hose that is connect-
ed air pipe to the intercooler.
WARNING
EB5M3015
64
