Edge CS User Manual

INSTALLATION
INTRODUCTION PARTS DESCRIPTION INSTALLATION OPERATING INSTRUCTIONS INTERNET UPDATES APPENDIX
13
USER GUIDE
The OBDII port is located under
the dash below the steering
wheel. The OBDII
port is placed in
dierent locations
under the dash for
dierent applica-
tions; refer to the
OBDII port location
drawing (left) to
help you locate your
OBDII port.
*07 + Ford Superduty
OBDII ports are located on the
left side of the wheel instead of the
right
* 94-97 Ford Powerstrokes are lo-
cated on the passenger side below and
to the left of the glove box.
FORD
DODGE
GM-CHEV
OBDII LOCATIONS
The OBDII port is a 16-pin connector like the illustration be-
low.
OBDII PORT

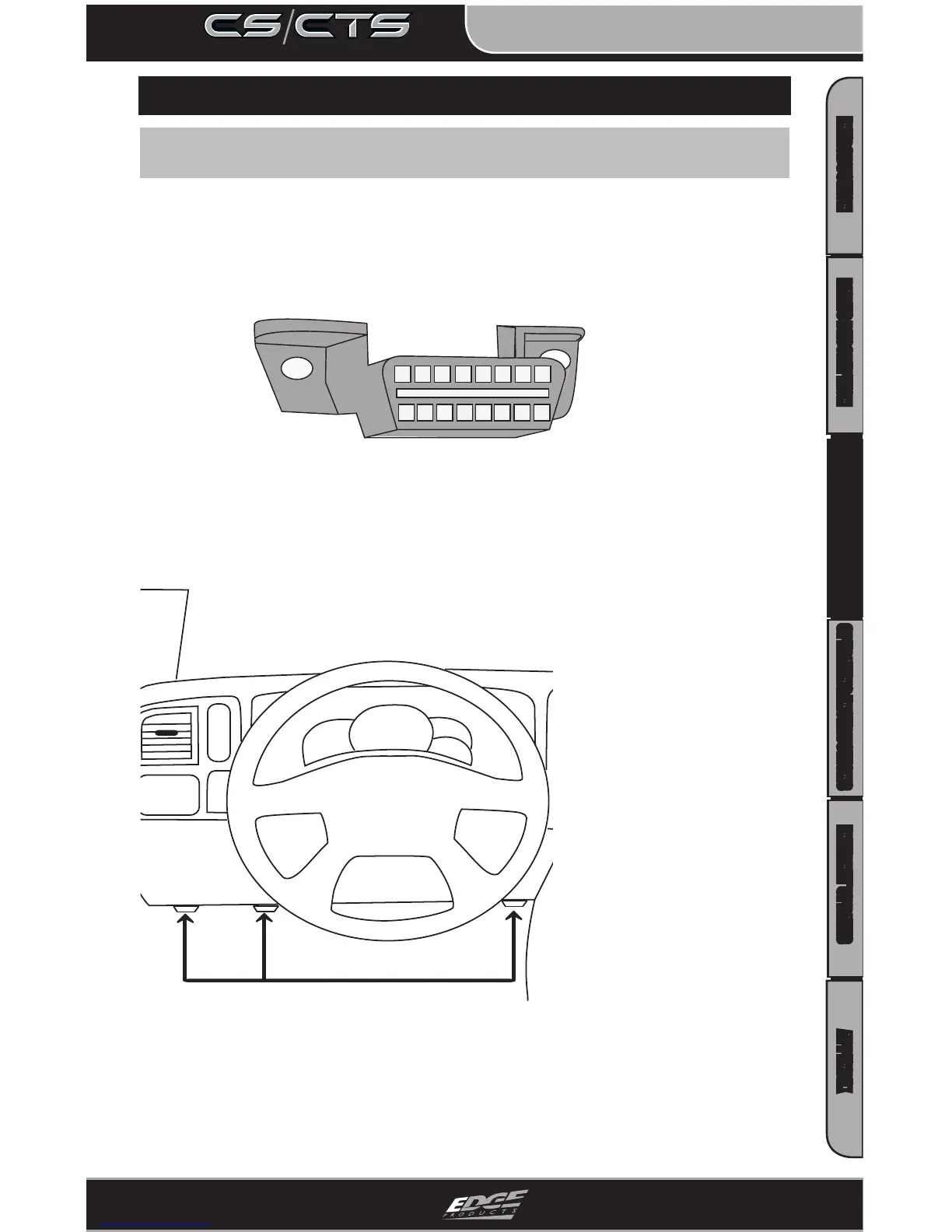

Step 1: Locating the OBDII Port
INSTALLATION INSTRUCTIONS

Edge CS Specifications

General

Brand	Edge
Model	CS
Category	Touchscreen
Language	English
