USER GUIDE
INSTALLATION

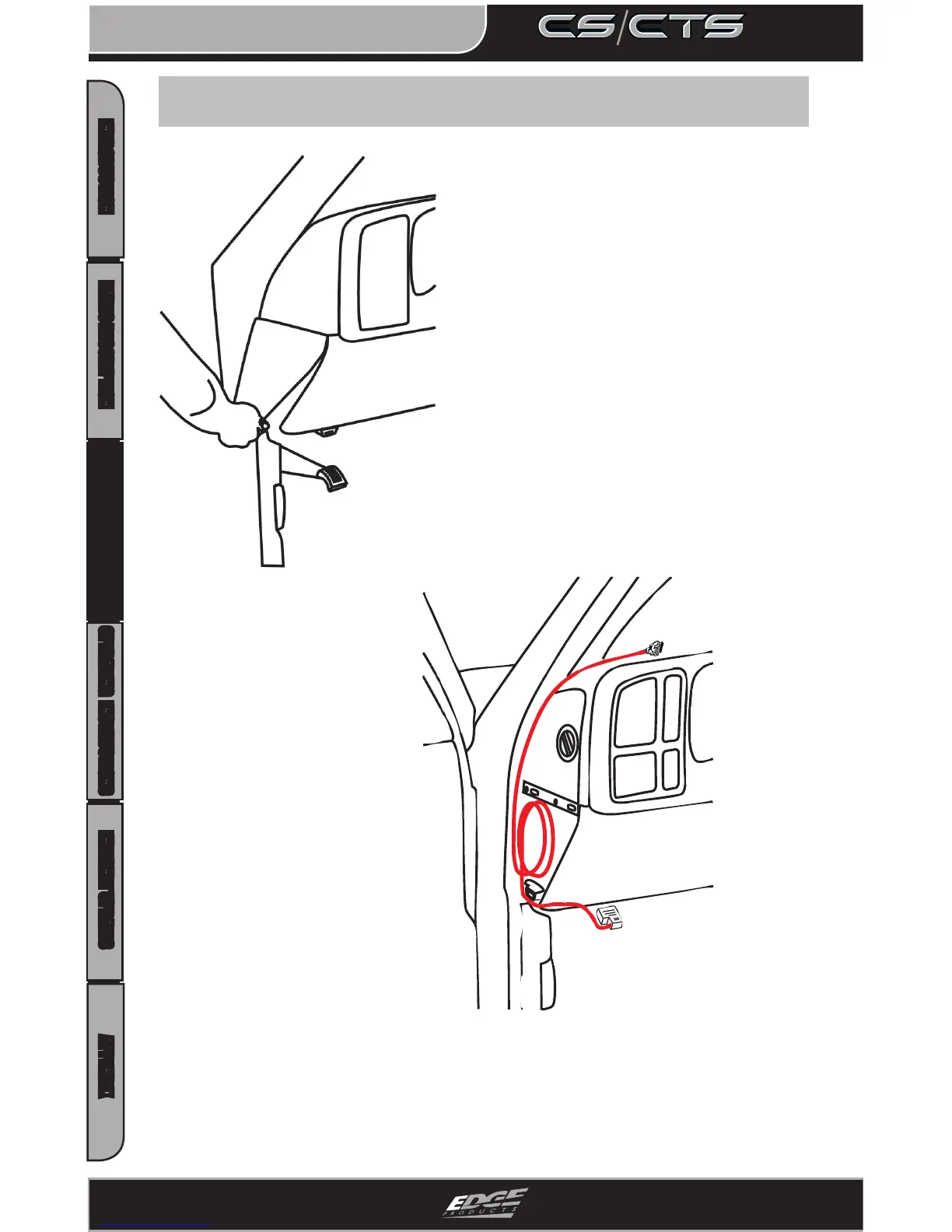

Once you’ve removed
the necessary panels,
connect the OBDII
cable to the OBDII
port, and route the
cable under the dash,
out the side panel, up be-
tween the door seal trim
and the edge of the dash.
Tuck the cable back as far
as you can as you route it
up to the dash.
Remove the panel on the
side of the dashboard to
provide access to route
the OBDII cable from the
OBDII port up to the top
of the dash.
*On some vehicles you may
also need to remove the panel
directly under the steering
wheel
*Note: Leave
6-10 inches of
cable exposed on top
of the dash so you have
room to position the
control unit.
Step 2: Connecting/Routing the OBDII Cable
