4. APPLIANCE IDENTIFICATION
4.1 Rating plate

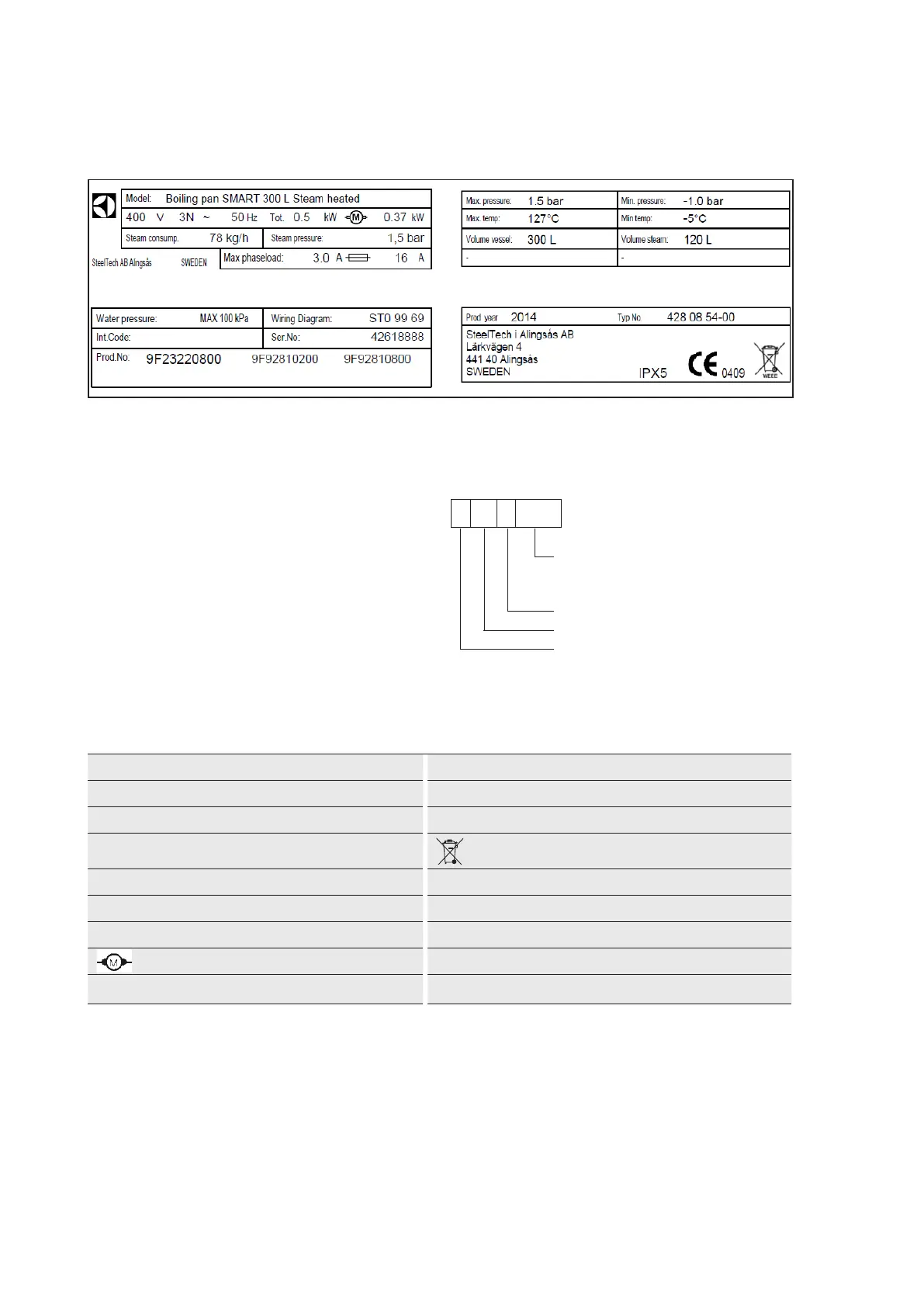

The illustration shows an example of an unlabelled
rating plate and may differ from the one on your
appliance.
There is one rating plate affixed at a clearly visible
spot on the outside of the unit. There is another rat-
ing plate inside the appliance which you can see
after removing the panels.
For the exact identification of your appliance, see
'PNC'.
The eight-digit serial number (Ser. No.) on the rating
plate contains the following information:
4 25 1 0003
3. Appliance with this PNC, produced
in calendar week 25
Third digit of the year in numbers
(2014)
Calender week (25)
Fourth digit of the year in numbers
(2014)
Definition of the data on the label:
Model Description of the boiling pan Max. phaseload A Current
Int.code Internal code Prod. year Production year
Prod. No. Production code/codes CE CE identification
Ser. No. Serial number WEEE symbol
V ~ Supply voltage ~ phase Max. Pressure Maximum operating pressure,vessel
Hz Mains frequency Min. Pressure Minimum operating pressure
Tot. kW Maximum power consumption Max.temp Maximum temperature
Motor power consumption Min.temp Minimum temperature
Steam consump. Steam consumption Typ No. Vessel production, drawing number
5. CONSTRUCTION OF THE APPLIANCE
The outer and inner structure parts of the overall
appliance are made of high-quality steel (AISI 304).
The surface of the appliance is highly polished, en-
suring an excellent level of hygiene, universal versat-
ility and making it easy to clean while preventing any
mixing of flavours.
