18. AGITATOR
MAINTENANCE
The agitator bearing is filled with grease from the
factory. Refilling grease should take place during in-
stallation and then at least twice per year.
Grease filling should be performed by trained
personnel.
• Usegreasewithhightemperatureproperties*:
* Order Number: ST8 00 24-00
• Greaseshouldbepumpedinsothatitisforced
out through the overflow hole on the bearing
housing. Fig.4 pos.A.
A
A. Overflow hole
• Checkthegreasethatisforcedout.Ifitshows
signs of being mixed with water, the agitator
bearing and seal should be removed for inspec-
tion and if necessary replaced.
18.1 If the pan with agitator is taken out
of service
For operation stoppages for periods longer than
one month:
• Pourin2-3litresofsiliconeoiltocounteractthe
desiccation of the agitator seals.
• Heatthepanto60-80°C.
• Followtheinstructionsabove.
Appropriate oil is e.g. Whiterex 309 (Mobil).
18.2 When the pan is put back into
service
• Pourofftheoilandcleanthepan.
17. TOOLS AND
ACCESSORIES
17.1 Agitator tool Variomix
Gate agitators are used to mash, mix or whip the
contents of the pan.
You can use the gate agitator with or without
scrapers.
The scrapers are used to avoid certain food pro-
duce sticking.
17.2 Agitator tool Promix
Promix propeller is used to pulp, mix or whip the
contents of the pan.
Bottom agitator is attached to the Promix agitator
to process light and /or smaller amounts of food
produce more efficiently.
The baffle plates are used to avoid splashes from
low-viscosity food.
17.3 Supplementary equipment and
accessories
17.3.1 Smart
Equipment Accessories
Measuring stick Strainer plate
Cleaning brush, short
Cleaning brush, long
17.3.2 Smart Variomix
Equipment Accessories
Gate agitator Strainer plate
Measuring stick Cleaning tool
Bottom scraper Bottom agitator
Side scraper Whip tool
Cleaning brush, short
Cleaning brush, long
17.3.3 Smart Promix
Equipment Accessories
Propeller agitator Strainer plate
Bottom agitator Cleaning tool
Baffle plate Cleaning brush, short
Measuring stick Cleaning brush, long

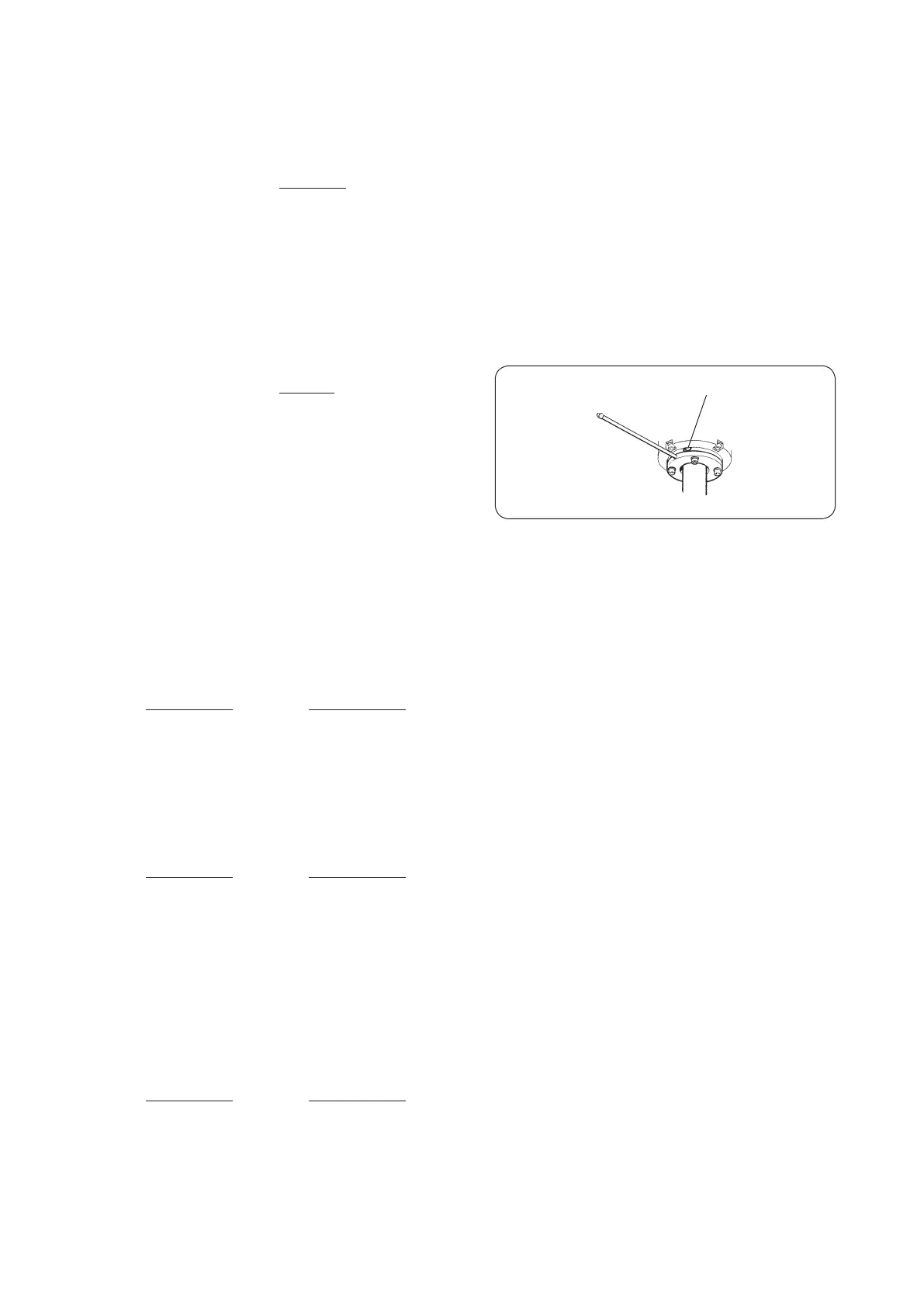

Fig. 4
