FloBoss 103/104 Instruction Manual
Revised August-2017 Installation and Use 2-5
▪ On an orifice plate:
Directly mount to an orifice plate via a 3- or 5-valve manifold.
With either mounting method, the pressure inputs must be piped to the
process connections on the DVS. For more information on process
connections, refer to Chapter 6.
Refer to Figures 2-1 to 2-3 for dimensions. If you intend to use the
FB100 with a 5 Watt solar panel, the dimensions are 22.86 mm W by
48.01 mm H by 31.12 mm D (9.00 in. W by 18.90 in. H by 12.25 in. D).

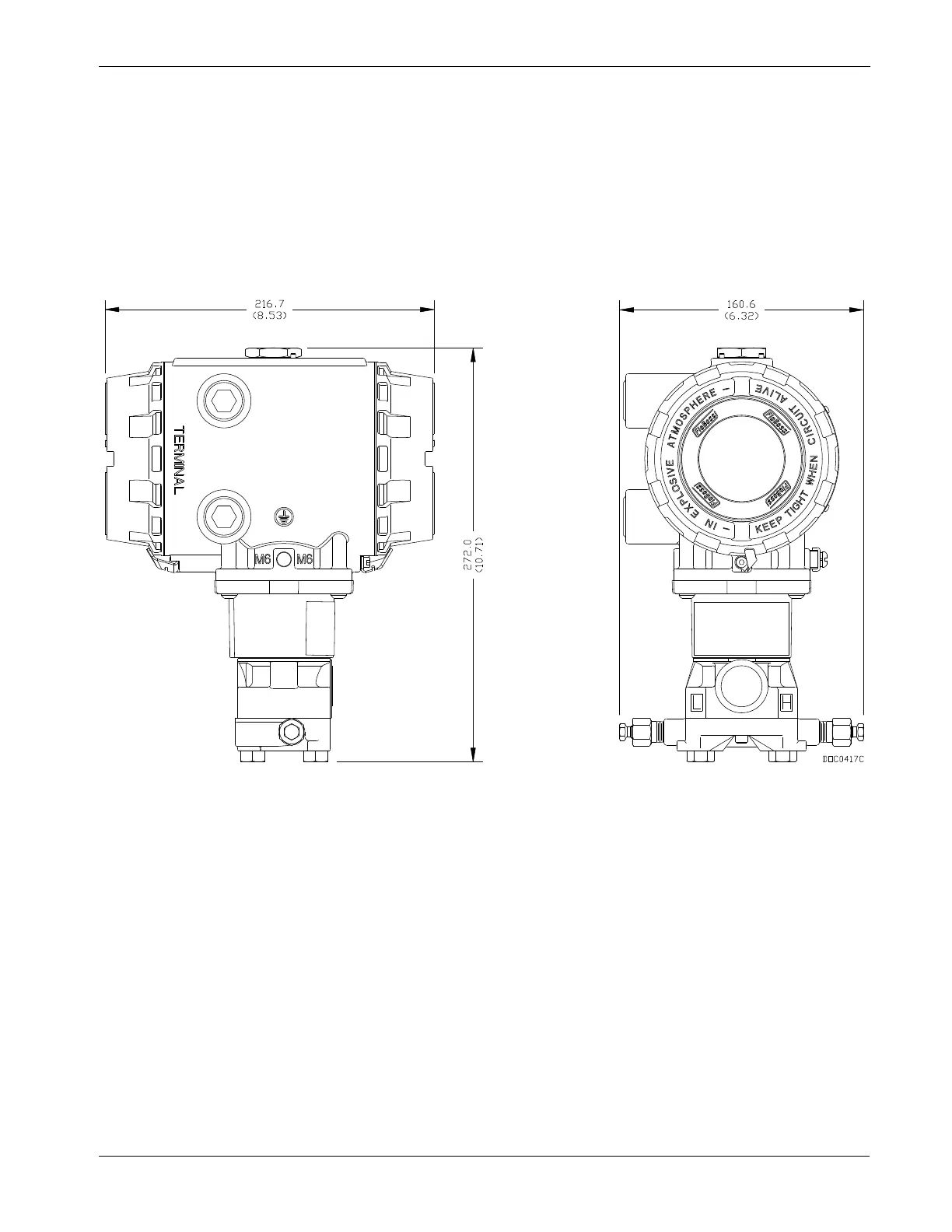

Figure 2-1. Dimensions of the FB103 (without Solar Panel)
c
m
(
i
n
c
h
)
