FloBoss 103/104 Instruction Manual
Revised August-2017 Installation and Use 2-7
2.3.2 Pipe Stand Mounting (FloBoss 103/FloBoss 104)
To install the FloBoss 103/ FloBoss 104 on a 2-inch pipe stand:
1. Install the pipe stand per the directions included with the pipe stand.
2. Remove the orifice/meter run from service.
3. Install the FloBoss on the pipe stand using clamps or mounting
brackets. Refer to Figure 2-4 (for FB103) and Figure 2-5 (for
FB104).
2.3.3 Orifice Plate Mounting (FloBoss 103)
To install the FloBoss 103 on an orifice plate:
1. Remove the orifice/meter run from service.
2. Install the FloBoss 103 on the meter run using a manifold and
hardware to secure the FloBoss 103 to the orifice flanges. Refer to
Figure 2-4.

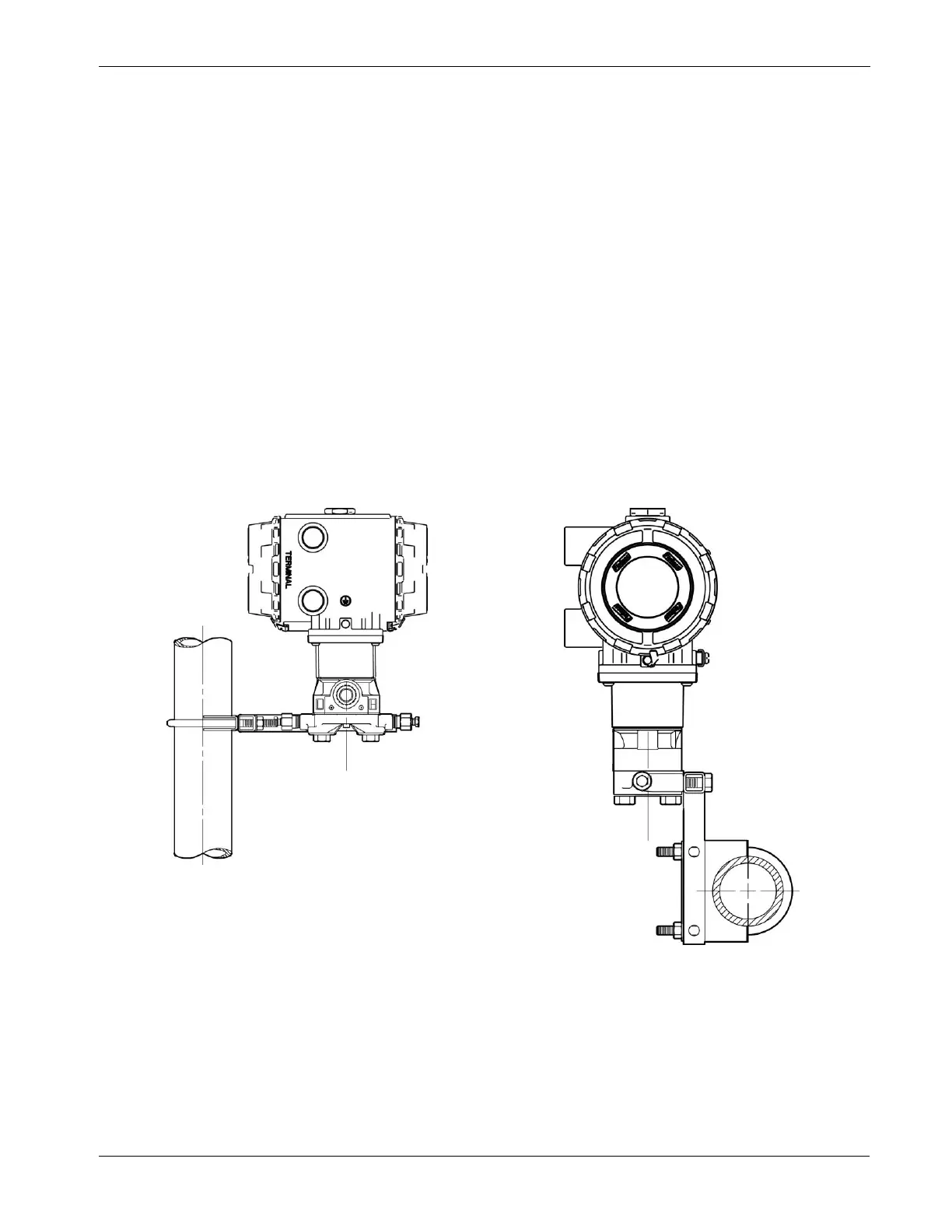

Figure 2-4. FB103 Mounting Options
