Projector Parts and Functions
The following sections explain the projector parts and their functions.
Name Function
A
Air exhaust vent Exhaust vent for air used to cool the projector
gg Related Links
internally.
• "Projector Parts - Front" p.11
• "Projector Parts - Rear" p.12
Warning
• "Projector Parts - Base" p.13
• "Projector Parts - Control Panel" p.14
Do not look into the vents. If the lamp
explodes, gases may escape and small
• "Projector Parts - Remote Control" p.15
fragments of glass may be scattered which
could cause an injury. Contact a doctor if any
fragments of broken glass are inhaled or get

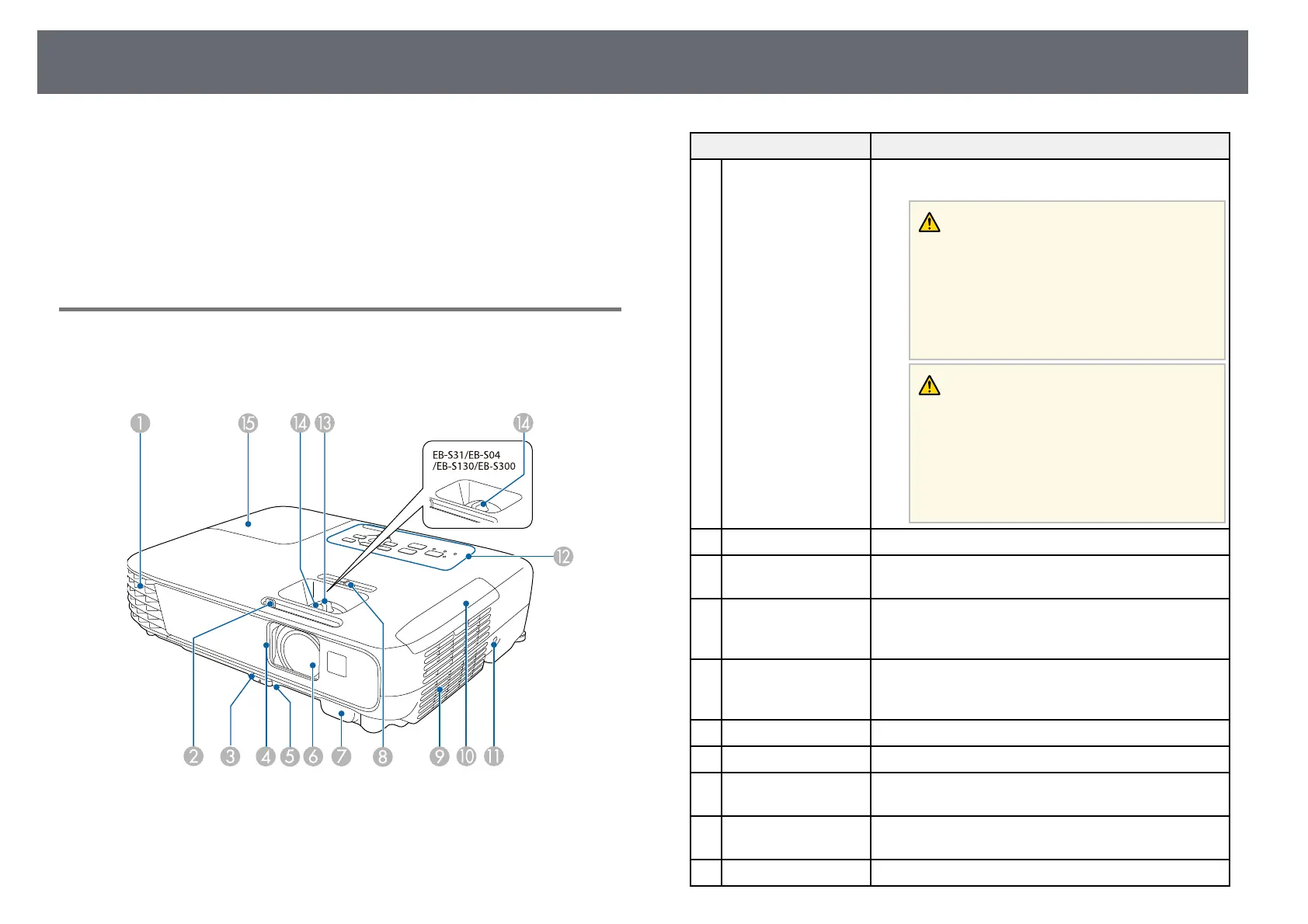

Projector Parts - Front
into the eyes or mouth.
All of the features in this guide are explained using illustrations of EB-W04
unless otherwise mentioned.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
B
A/V Mute slide lever Slide the knob to open and close the lens cover.
C
Foot release lever Press the foot release lever to extend and retract the
front adjustable foot.
D
Lens cover Close when not using the projector to protect the lens.
By closing it during projection you can hide the image
and the sound.
E
Front adjustable foot When the projector is set up on a surface such as a
desk, extend the foot to adjust the position of the
image.
F
Lens Images are projected from here.
G
Remote receiver Receives signals from the remote control.
H
Horizontal keystone Corrects horizontal distortion in the projected image.
adjuster
I
Air intake vent (air Takes in air to cool the projector internally.
filter)
J
Air filter cover Open to access the air filter.
To Next Page
