Projector Parts and Functions
9
The following sections explain the projector parts and their functions.
gg Related Links
• "Projector Parts - Front/Top" p.9
• "Projector Parts - Rear" p.10
• "Projector Parts - Base" p.10
• "Projector Parts - Control Panel" p.11
• "Projector Parts - Projector Remote Control" p.12

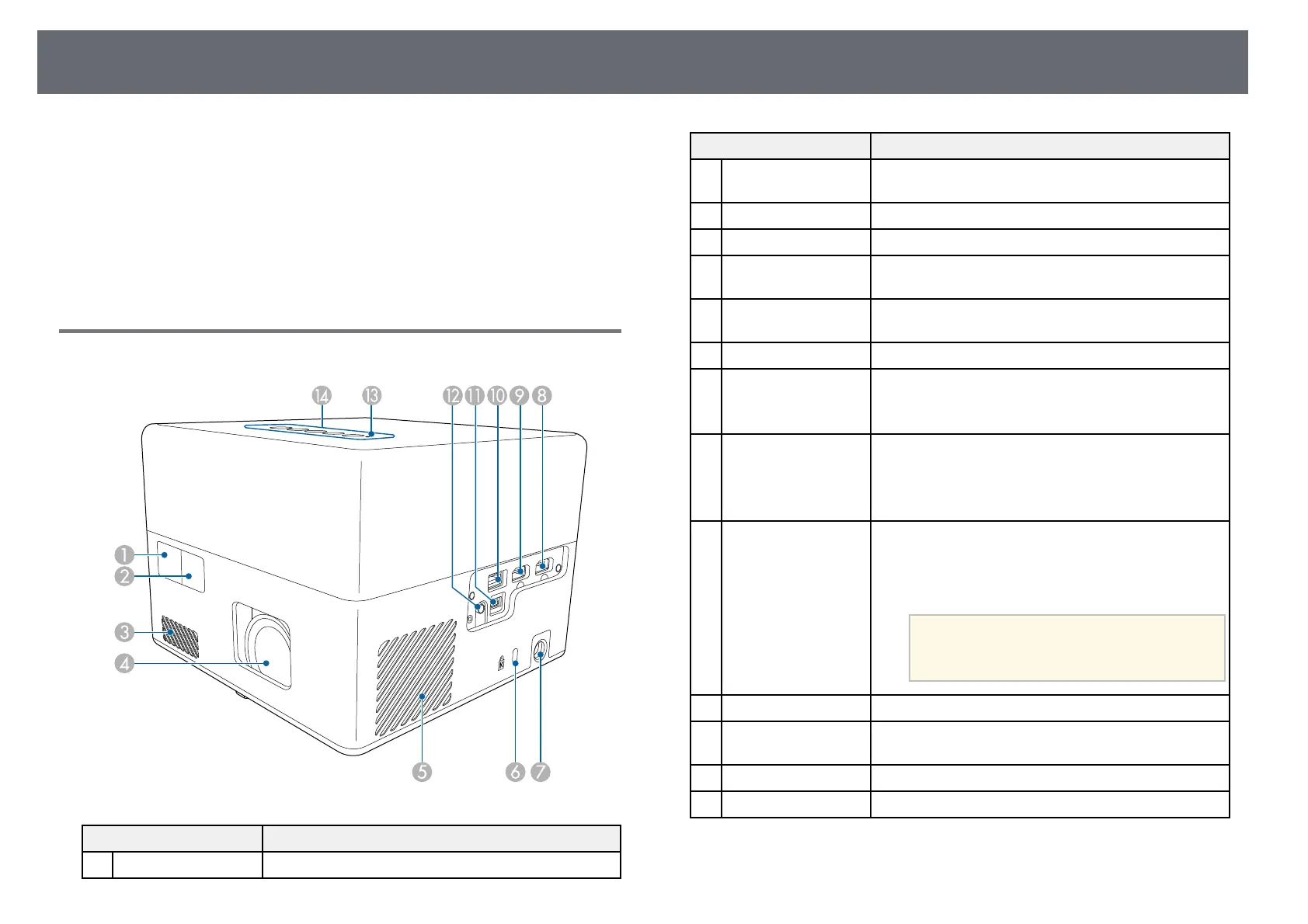

Projector Parts - Front/Top
Name Function
A
Remote receiver Receives signals from the remote control.
Name Function
B
Camera Automatically adjusts the shape and focus of the
projected image.
C
Air intake vent Takes in air to cool the projector internally.
D
Lens Images are projected from here.
E
Air intake vent (air
filter)
Takes in air to cool the projector internally.
F
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
G
AC adapter port Connects the AC adapter.
H
HDMI1 port Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDMI 2.3.
I
HDMI2 (ARC) port Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDMI 2.3.
This port is compatible with HDMI ARC.
J
USB-A port Connects a commercially available USB device such as
a webcam, external HDD, or keyboard.
Connects a commercially available RJ45 adapter to
enable wired LAN connections.
a
This port is not guaranteed to
operate for all devices that support
USB.
K
Service port This port is not normally used.
L
Audio Out port Outputs audio from the current input source to
headphones.
M
Status indicator Indicates the projector's status.
N
Control panel Operates the projector.
gg Related Links
• "Remote Control Operation" p.24
