Optional Equipment
Pre/Post Flow/Spot/Burnback module ..................................... 0558002889
Inductance Control Module ......................................................... 0558002888
Remote Control Module ................................................................ 0558002605
FC-5B Foot Control - 30 ft. (9.1 m) cable................................................33646
Provides remote current control and contactor (on/o) control
Spool Gun Module ........................................................................... 0558002606
MT-250SG Spool Gun ..................................................................................36779
(Requires Spool Gun module)
ST-23A Spool Gun .........................................................................................19164
(Requires adapter 37301 and Spool Gun module)
HW-17V-2TL (w/valve) Heliarc Tig Torch Assembly ..........................35857
Tig weld without disconnecting the Mig torch. 60 deg. 12.5 ft.
HW-17 Torch Accessory Kit ..................................................................... 999126
Work Cable & Clamp .....................................................................................35881

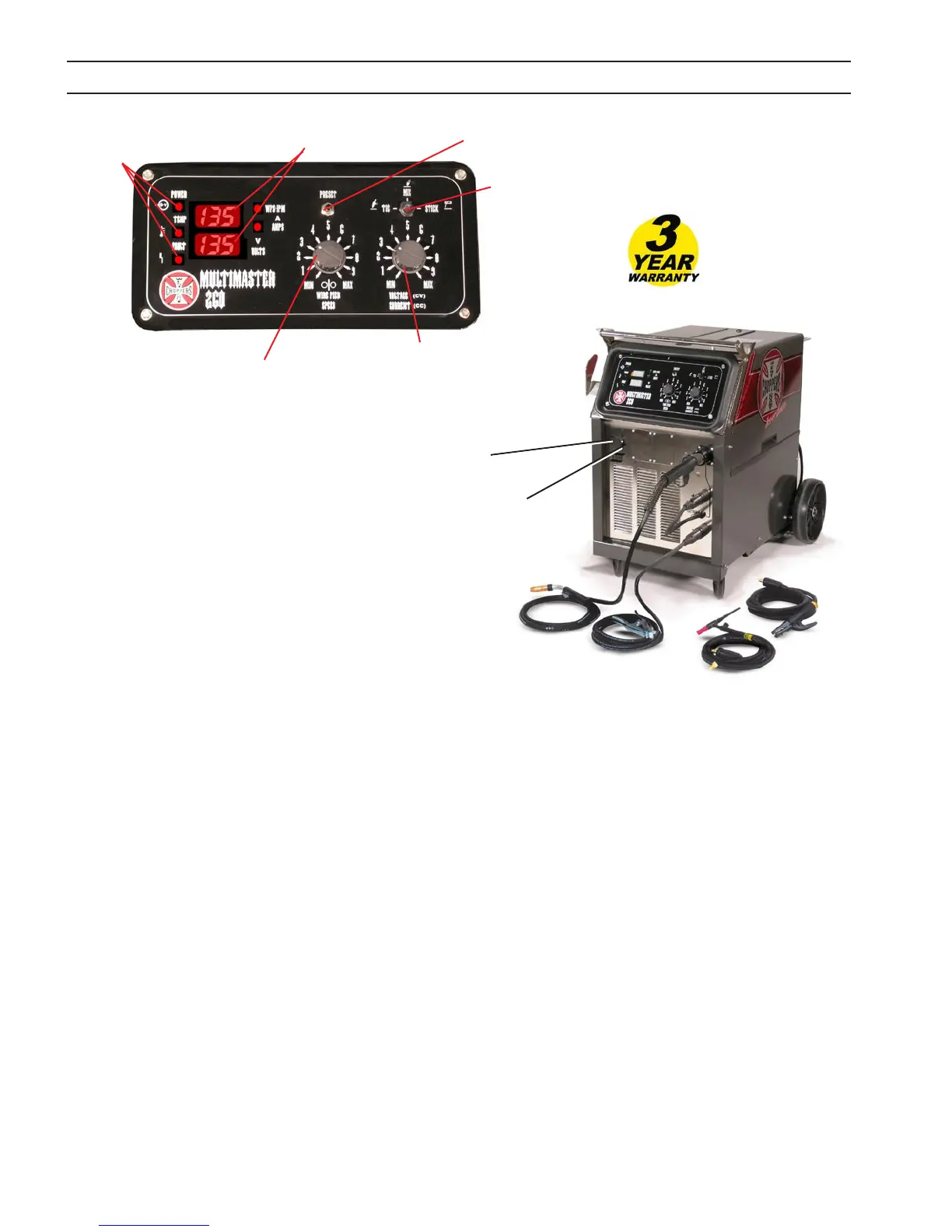

Digital Meter
Volts, Amps, and Wire feed speed
Voltage/Current
Control
Process Selector
Voltage Preset
Status Indicators
Wire Feed Speed
Control
Remote Control Option
“Spool-on-Gun” Option
Electrode Holder Assembly - 175 amp (15 ft.) ......................0558001786
Includes holder, cable and quick connector
Electrode Holder Assembly - 300 Amp (15 ft.) ...................................21226
Includes holder, cable and quick connector
Tee Connector (1 male/ 2 female) ................................................... 13792804
Primary Extension Cord (25 ft.) .................................................................37833
TIG Welding Handbook ............................................................................ 781F29
MIG Welding Handbook ........................................................................... 791F18
SECTION 2 DESCRIPTION
Specifications
Rated DCCV or DCCC Output (10 min base)
50% duty cycle (NEMA Class I) ..................................260 amps @ 27 vdc
Output Current Range
Mig (GMAW) ................................................................................. 35-300 amps
Tig (GTAW) ....................................................................................10-300 amps
Stick (SMAW)................................................................................40-300 amps
Open Circuit Voltage
Mig (MGAW)...........................................................................................39.0 vdc
Tig (TGAW).................................................................................................20 vdc
Stick (SMAW).............................................................................................70 vdc
Primary Input Voltage & Current @ 260 amp rated load
208/230 vac, 60 Hz, 1 ph ............................................................57/52 amps
Wire Feed Range ..............................................65-675 ipm (1.6 - 17.3 m/min)
Net Weight ................................................................................250 lbs. (112.5 kg)
Shipping Weight .....................................................................290 lbs. (130.5 kg)
W x L x H ................... 25.3 in. (64 cm) x 39.5 in. (100 cm) x 33.5 in. (85 cm)

ESAB Multimaster-260 Specifications

General
