SECTION 3 INSTALLATION
Pressure Roll Assembly
Pressure Release
Lever
Threading the wire
through the inlet guide

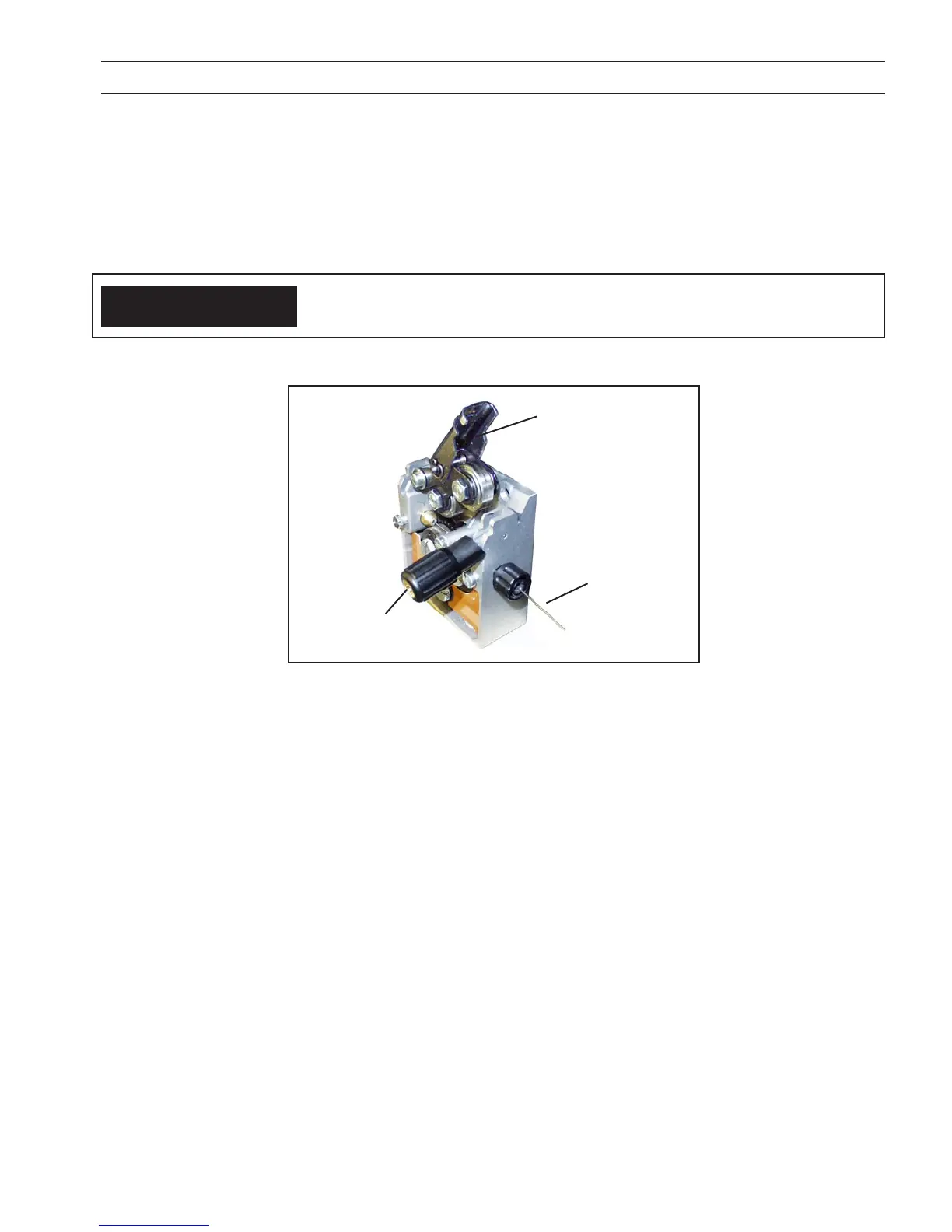

Figure 9 - Threading the Wire
WARNING
When the power switch is on, and gun trigger is depressed, the electrode wire
becomes electrically hot, and the wire drive rolls will rotate.
3.7.4 SPOOL BRAKE DRAG ADJUSTMENT
Spool brake disc friction should provide enough drag to keep the wire spool from spinning freely after wire feed stops. If
adjustment is required, turn the adjusting screw inside the spindle housing clockwise to increase drag or counterclockwise
to decrease it. Drag should be just enough to limit wire overrun.
