29
SECTION 3 INSTALLATION
Feed Roll Release Screws

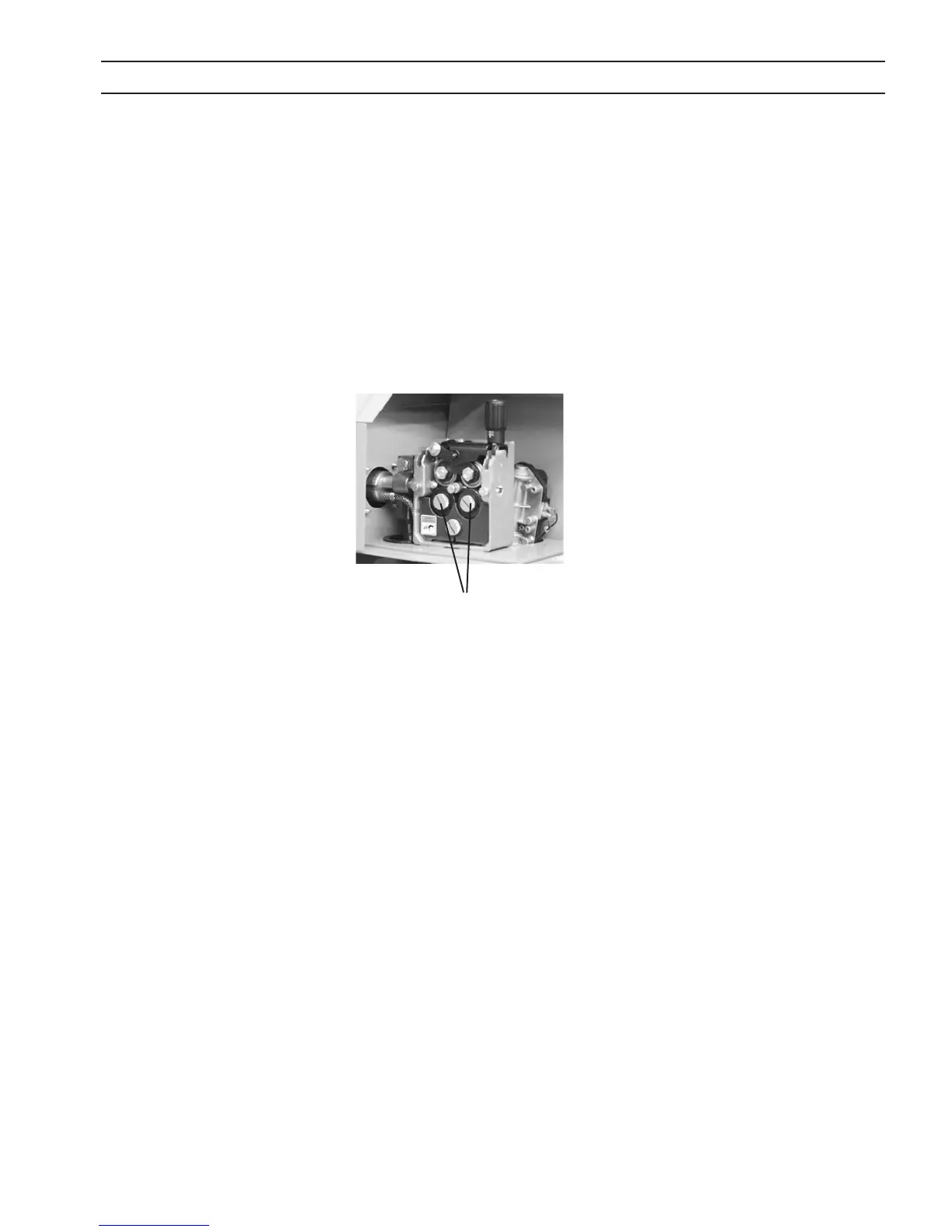

Figure 7 - Wire Feeder Mechanism
3.7 WIRE FEEDER MECHANISM
3.7.1 DRIVE ROLLS (Figure 7 and 9)
The drive roll has two grooves: the small groove feeds .035 in. diameter wire, the large groove feeds .045 in. wire. The groove
nearest the gear motor feeds the wire. If the required groove is not correctly positioned, perform the following:
A. Release the pressure drive roll lever.
B. Remove the two (2) screws holding the drive rolls to the gears.
C. Reverse the drive roll on the drive roll shaft.
D. Replace the screws and tighten.
E. Secure the pressure drive roll assembly.
