Do not do the following:

• Place heavy objects on the seat.

• Operate the heated seat if water or any

other liquid is spilled on the seat. Allow

the seat to dry thoroughly.

• Operate the heated seats unless the

engine is running. Doing so can cause

the battery to lose charge.

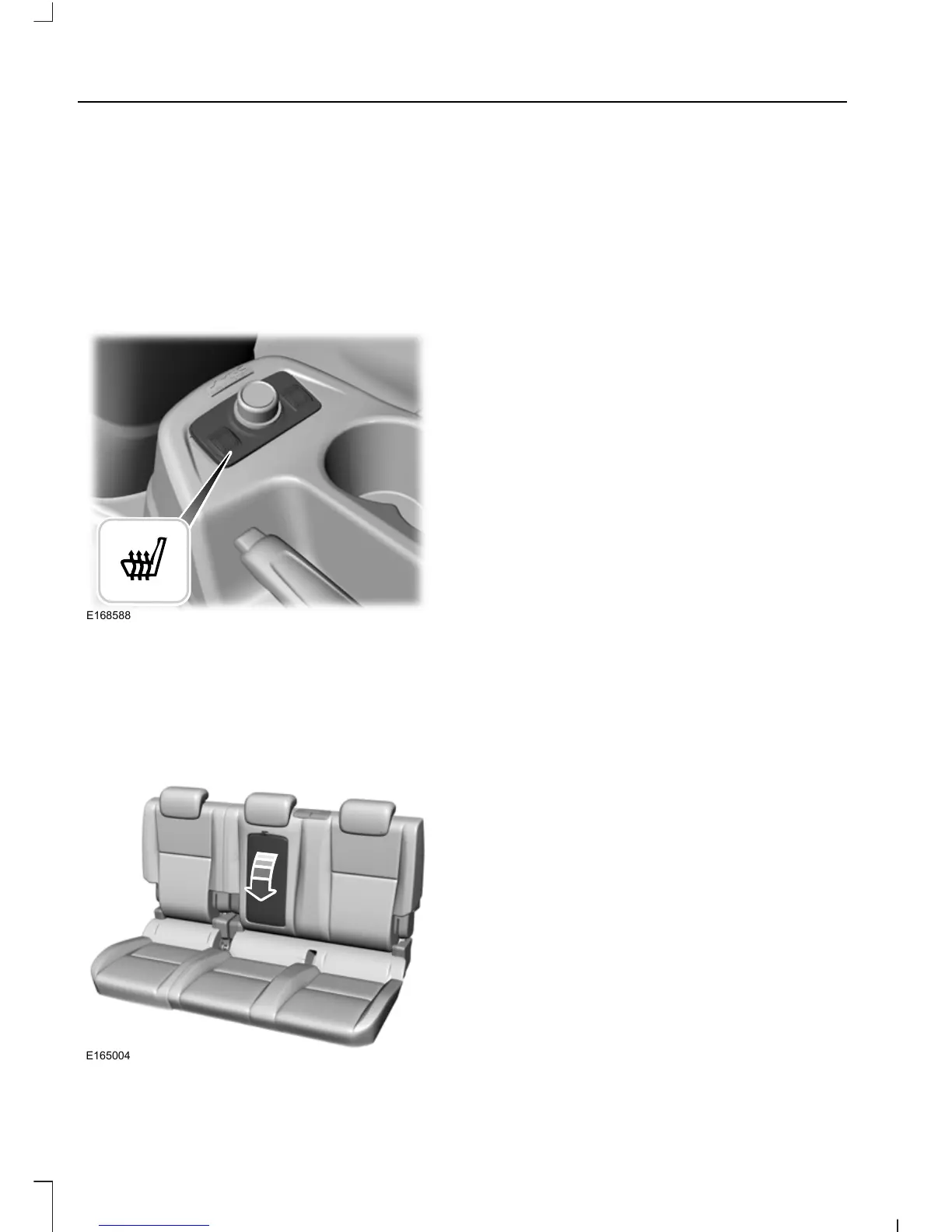

E168588

Adjust the control to the desired heat

setting.

REAR SEAT ARMREST (IF

EQUIPPED)

E165004

Fold the armrest down to use the armrest

and cup holder.

106
