FRONT FOG LAMPS (IF EQUIPPED)

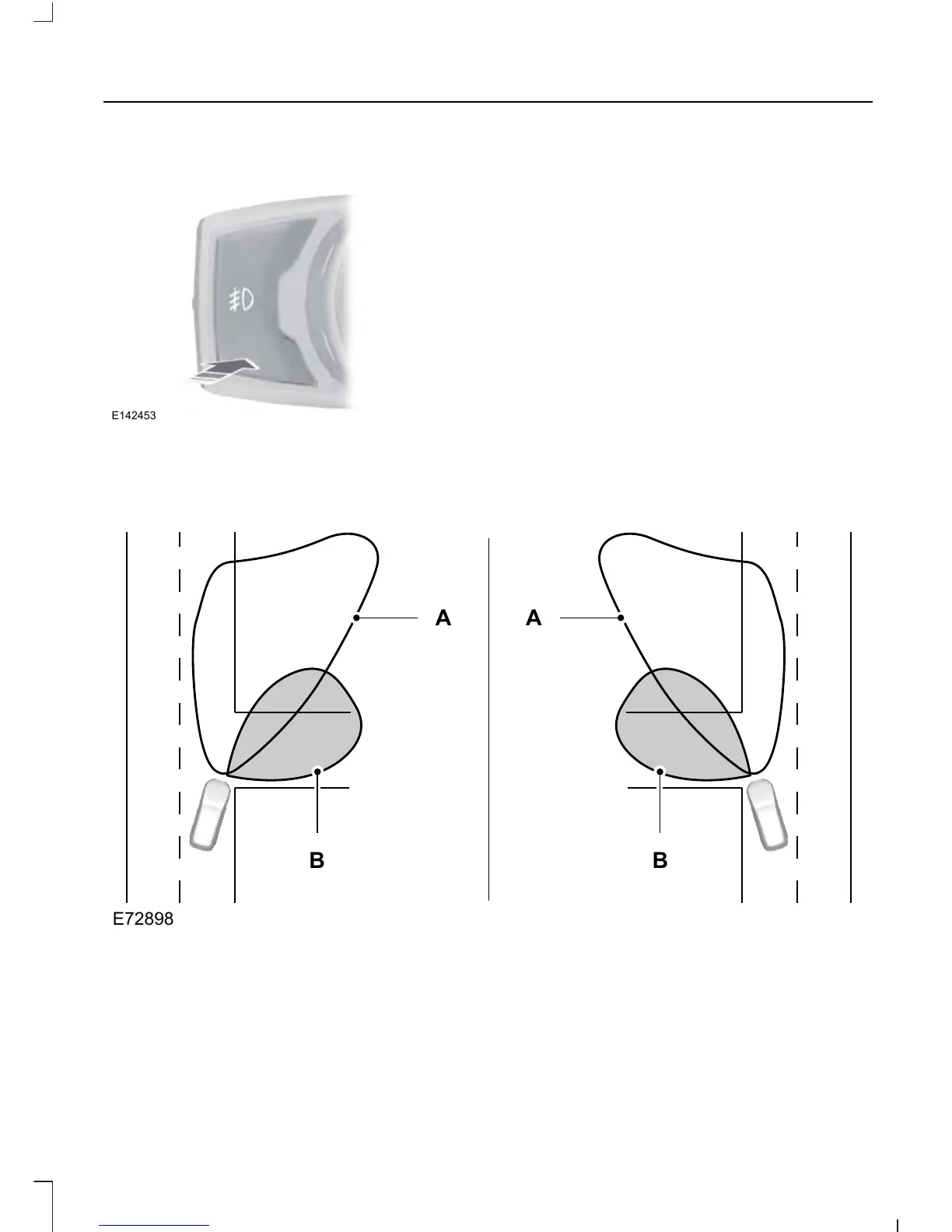

E142453

Press the button to switch the fog lamps

on or off.

You can switch the fog lamps on when the

lighting control is in any position except off

and the high beams are not turned on.

CORNERING LAMPS (IF EQUIPPED)

E72898

Headlamp beamA

Cornering lamp beamB

The cornering lamps illuminate the inside

of a corner when you are turning.
