License Plate Lamp
These are not serviceable items, see an
authorized dealer if they fail.

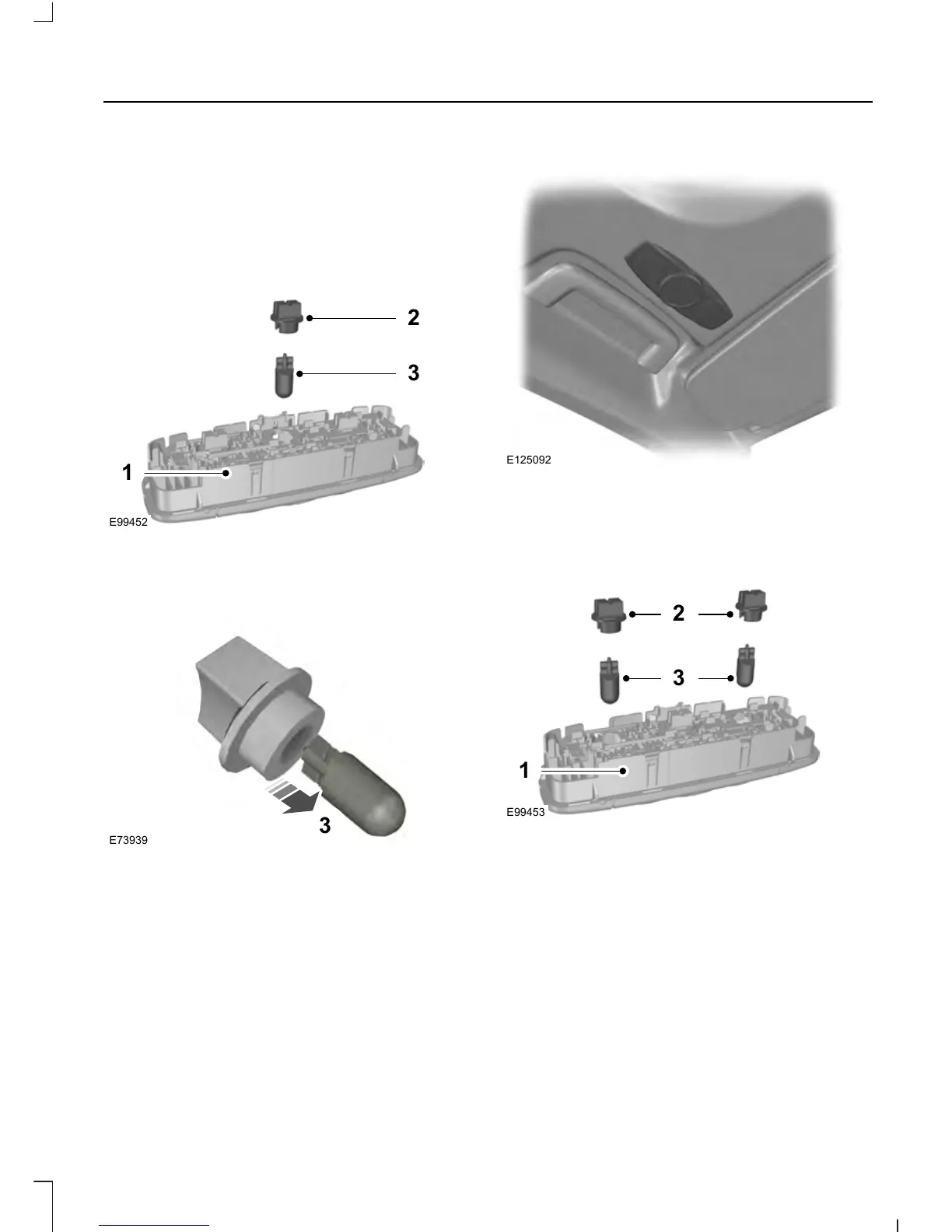

Interior Lamps
Front Interior Lamp
1. Carefully remove the lamp.
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight
out.
Front Interior LED lamps
Note: If your vehicle has LED lamps these
are not serviceable items, see an authorized
dealer if they fail.
Reading Lamps
1. Carefully remove the lamp.
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight
out.
193
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013
Maintenance
