ENGINE SPECIFICATIONS - 1.6L

SpecificationsEngine

98Cubic inches

Minimum 87 octaneRequired fuel

10.0:1Compression ratio

0.027-0.031 in. (0.70-0.80 mm)Spark plug gap

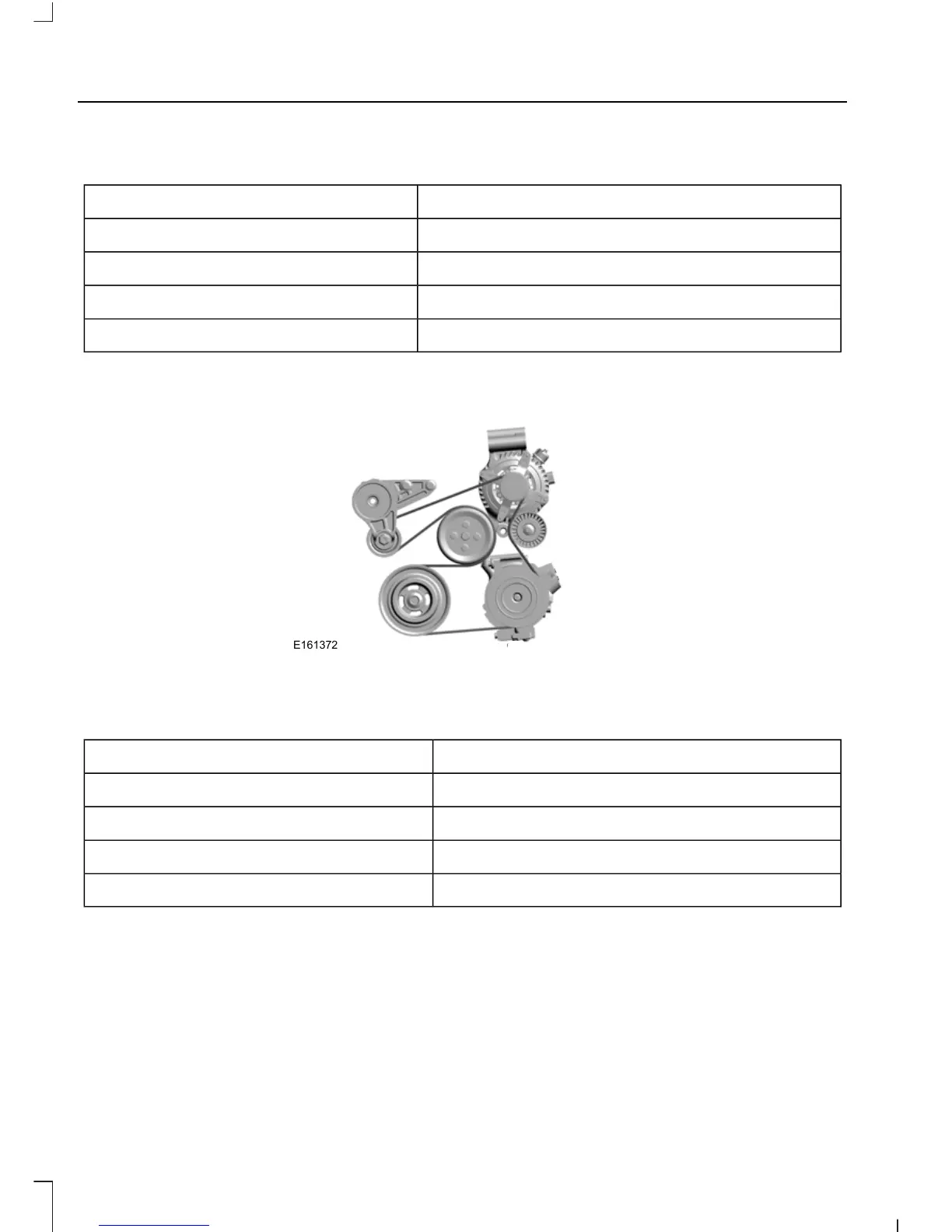

Drivebelt Routing

E161372

ENGINE SPECIFICATIONS - 2.5L

SpecificationsEngine

152Cubic inches

Minimum 87 octaneRequired fuel

9.7:1Compression ratio

0.049-0.053 in. (1.25-1.35 mm)Spark plug gap

236

Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013

Capacities and Specifications
