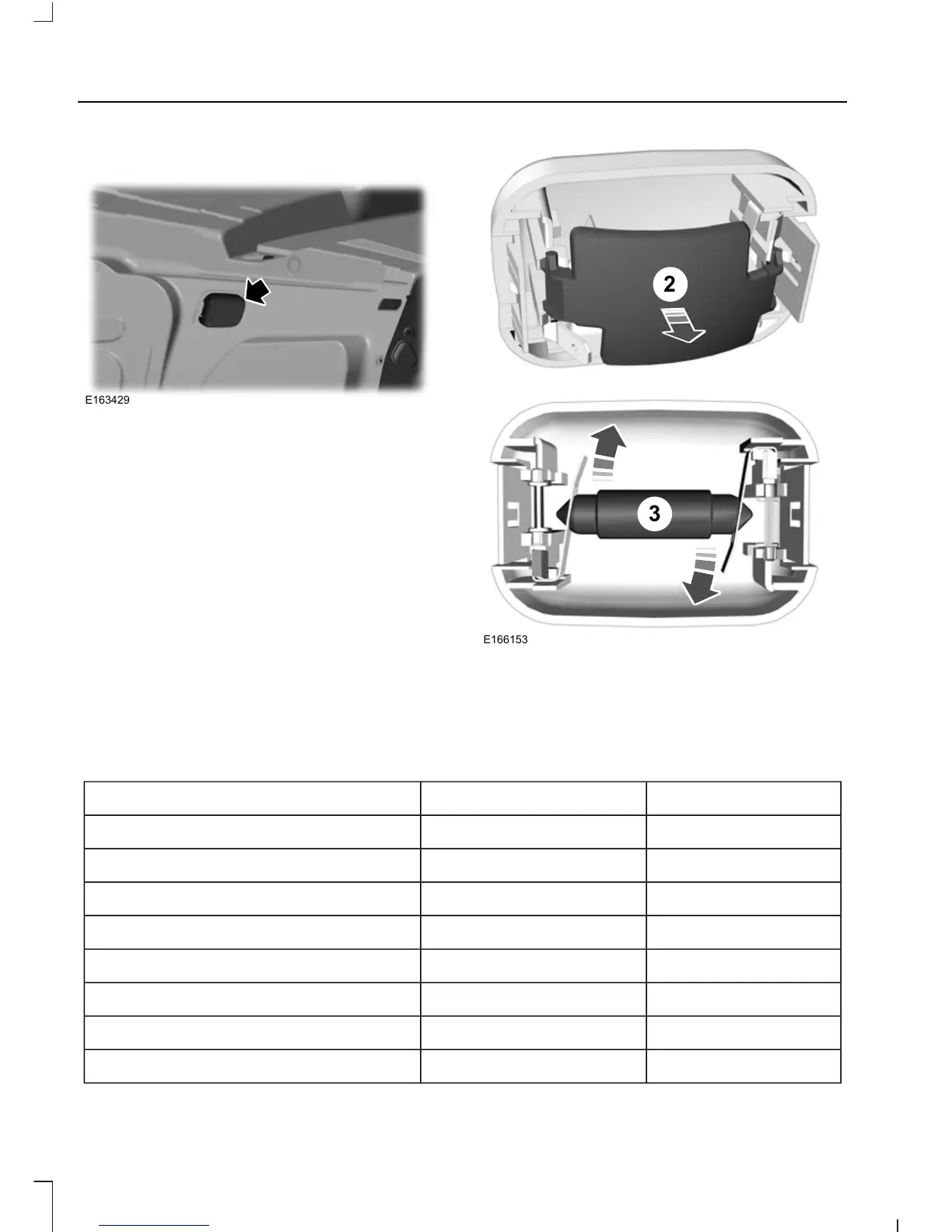

Cargo Area Lamp

E163429

1. Prise off the lamp cover.

E166153

2. Remove the cover.

3. Remove the bulb.

BULB SPECIFICATION CHART

Power (watt)SpecificationLamp

24PY24WFront direction indicator

55H9Headlamp high beam

55H11Headlamp low beam

55H11Front fog lamp

55H11Cornering lamp

5W5WSide direction indicator

21WY21WRear direction indicator

21/5W21/5WBrake and tail lamp
