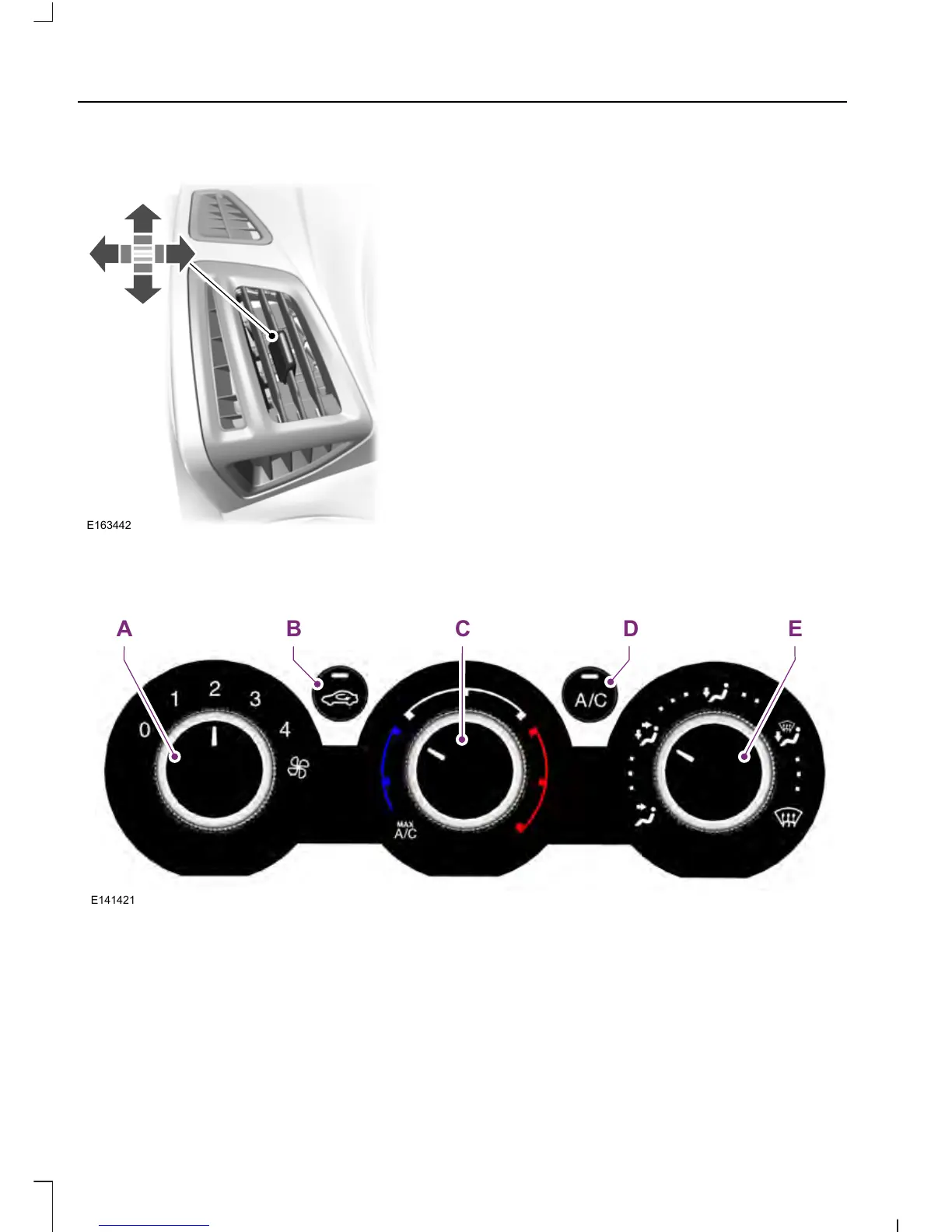

Side Air Vents

E163442

To close the air vent slide the airflow

direction control down.

MANUAL CLIMATE CONTROL

E141421

A EB DC

Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013

Climate Control
