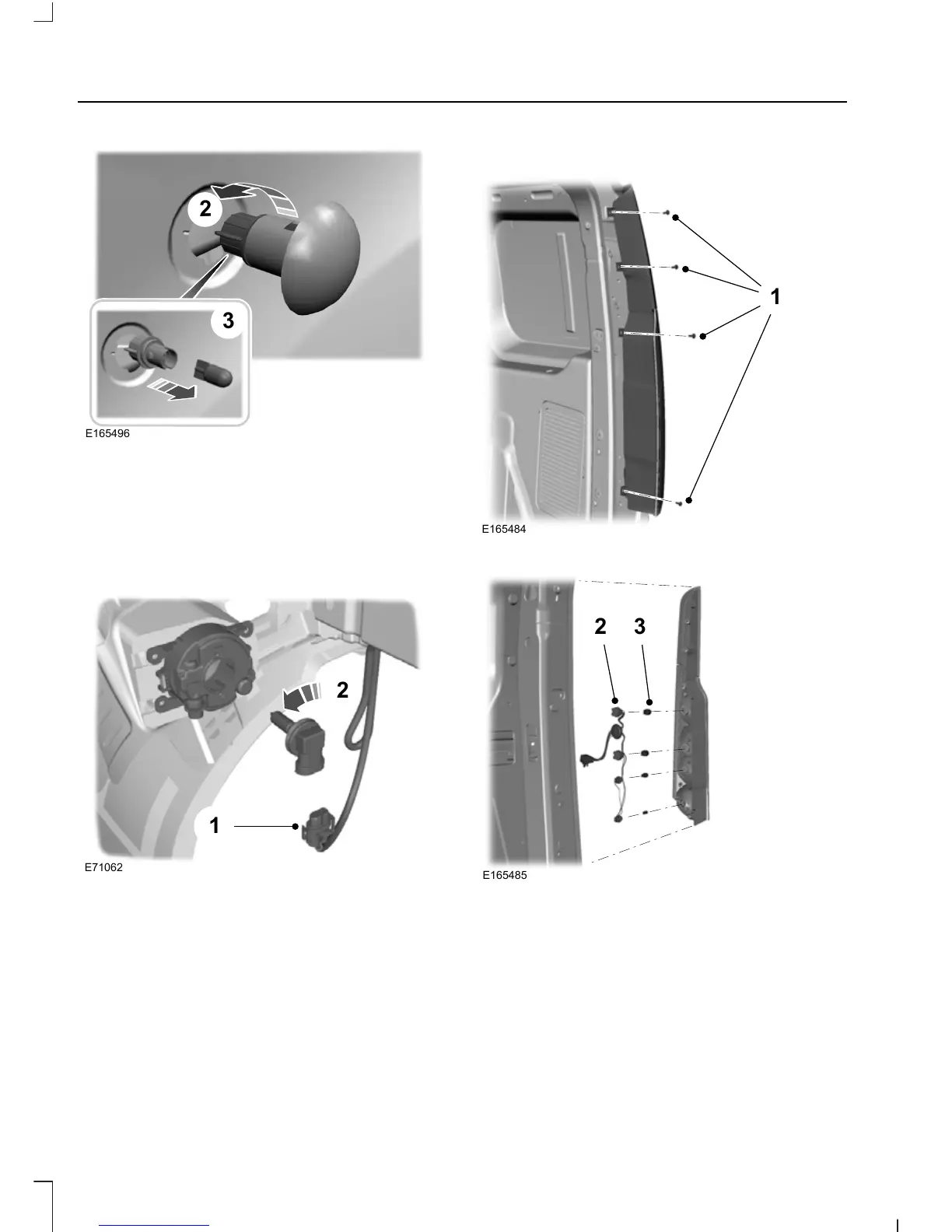

2. Hold the bulb holder and turn the lamp
counterclockwise and remove it.
3. Remove the bulb by pulling it straight
out.
Front Fog Lamps
1. Disconnect the electrical connector.
2. Turn the bulb holder counterclockwise
and remove it.
Note: Do not touch the glass of the bulb.
Note: You cannot separate the bulb from
the bulb holder.
Rear Lamps
2. Turn the bulb holders counterclockwise
to remove them.
3. Remove the bulbs by pulling them
straight out.
Central High Mounted Brake Lamp
These are not serviceable items, see an
authorized dealer if they fail.
192
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013
