Ford 2014 TRANSIT CONNECT User Manual

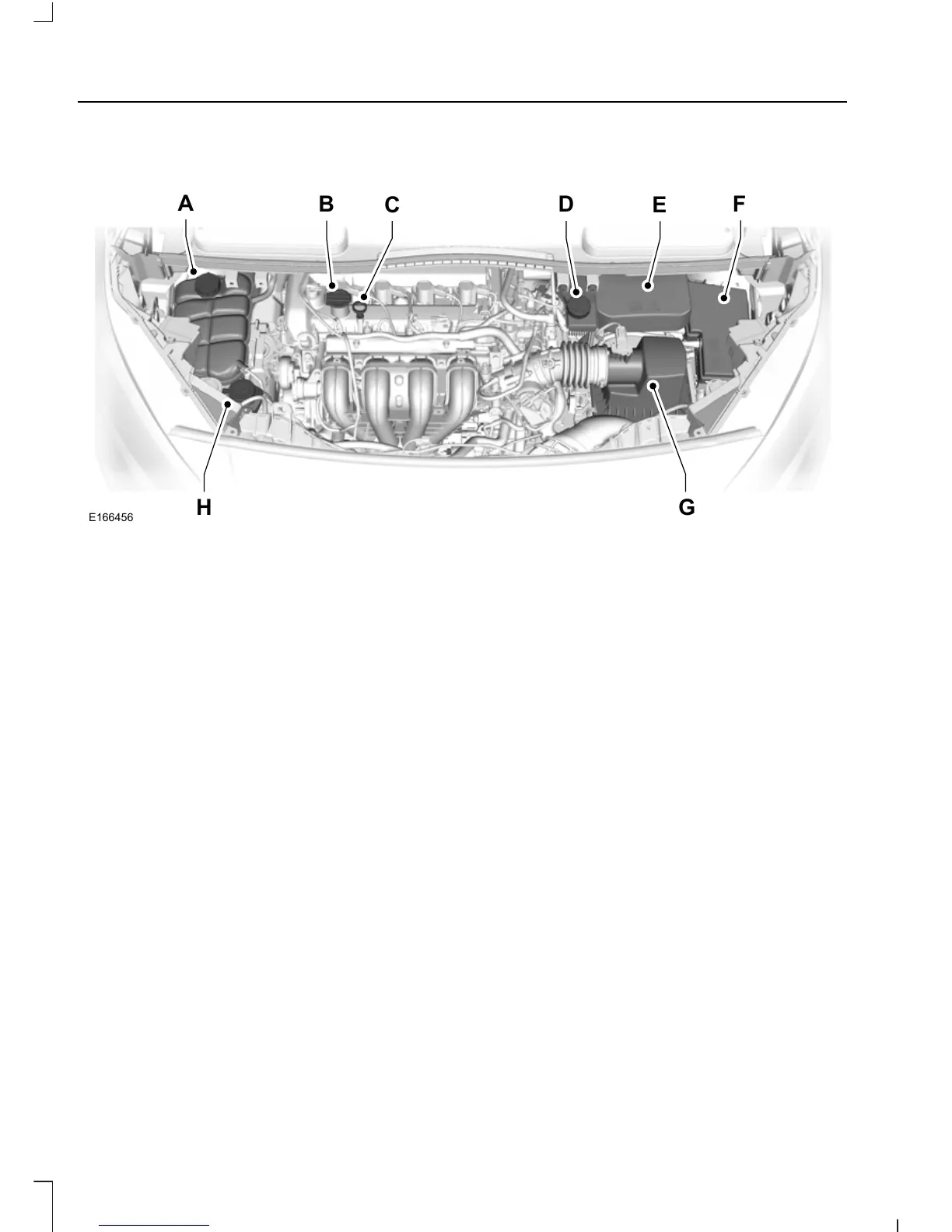

UNDER HOOD OVERVIEW - 2.5L
B
C
A
H G
D
E
F
E166456
Engine coolant reservoir
*
: See Engine Coolant Check (page 182).A
Engine oil filler cap
*
: See Engine Oil Dipstick (page 181).B
Engine oil dipstick
*
: See Engine Oil Dipstick (page 181).C
Brake and clutch fluid reservoir
*
: See Brake Fluid Check (page 184).D
Battery: See Changing the 12V Battery (page 185).E
Engine compartment fuse box: See Fuses (page 166).F
Air cleaner: See Changing the Engine Air Filter (page 196).G
Windshield and rear window washer fluid reservoir: See Washer Fluid Check
(page 185).
H
*
The filler caps and the engine oil dipstick are colored for easy identification.
180
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013
Maintenance
