7.1 Replacing Consumables 131
Replacing the Drum Cartridge
Before starting the procedure, prepare a new Drum Cartridge. Replace the toner cartridge
according to the following procedure:

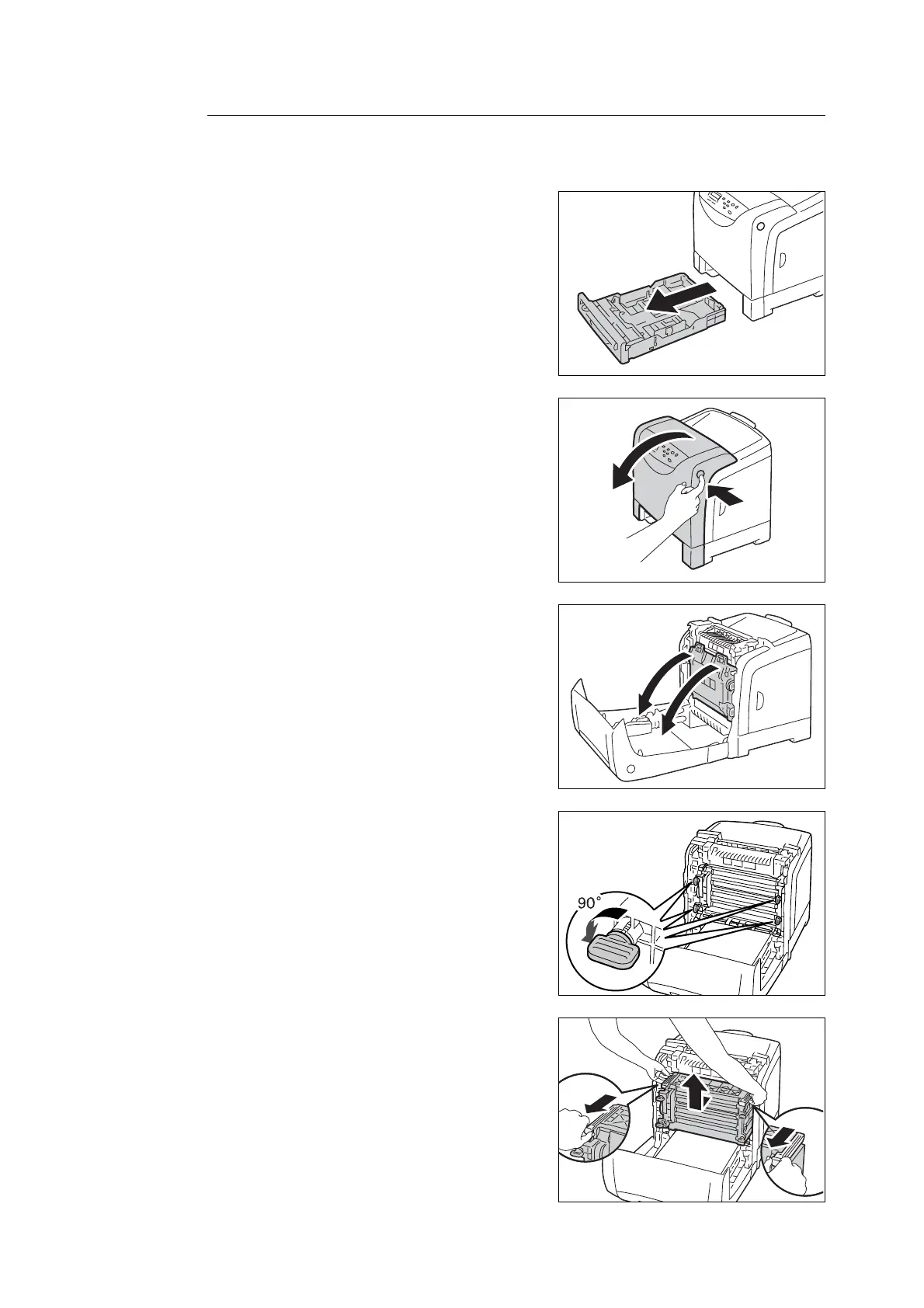

1. Slowly pull out Tray 1 and remove it from
the printer.
Note
• So as not to strike the removed Tray 1 with the front
cover, set the tray away from the printer.
2. Press the cover button on the right side of
the printer and open the front cover.
3. Grasp the green parts of the belt unit with
your fingers and lower the belt unit until it
stops.
4. Turn the four screws 90 degrees
counterclockwise and release the lock.
Important
• Do not forcibly turn the screws more than 90 degrees.
• Do not touch or scratch the front surface (black film) of
the belt unit. Applying scratches, dirt, or fingerprints to
the belt unit results in deteriorating print quality.
5. While holding the gray sections of the Drum
Cartridge, pull the Drum Cartridge toward
you, and then grasp both sides of the Drum
Cartridge to remove it from the printer.
Note
• Hold the Drum Cartridge securely so that you do not
drop it.
To Next Page
