Note -
When pulling out the HDDBPU, put your hand under it to prevent it from falling.
A
Note -
If you are replacing the OPNL of the SPARC M12-2S, make a note of the set BB-ID
value.
2.
Remove the HDDBPU.
Pull down the removal lever of the HDDBPU toward you, and pull out the
HDDBPU while holding its handle (A in Figure 16-5).

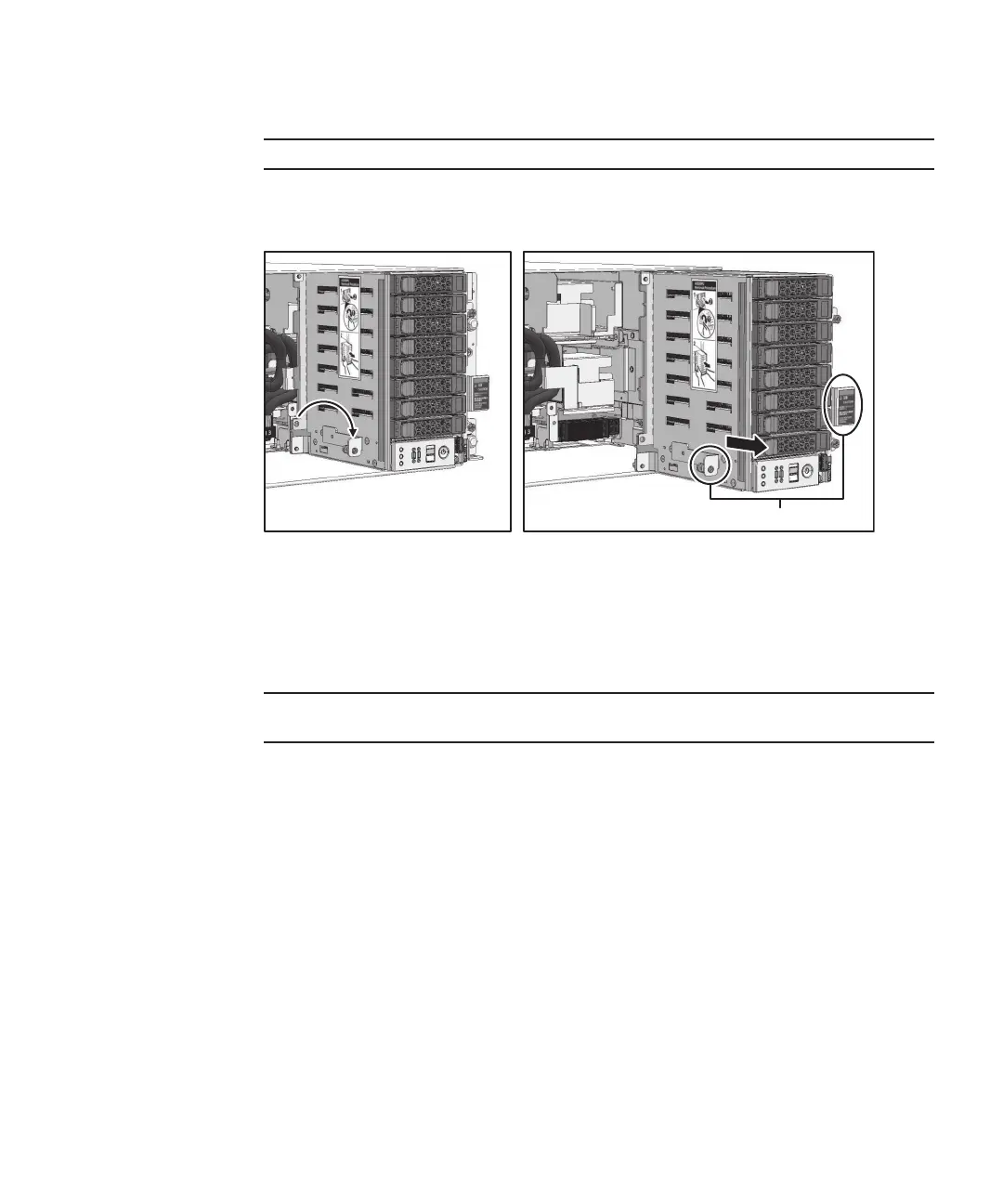

Figure 16-5
Removing the HDDBPU
16.3.3 Removing the OPNL
This section describes the procedure for removing the OPNL mounted in the HDDBPU.
1.
Remove the HDDs/SSDs.
Remove all the HDDs/SSDs mounted in the HDDBPU. If any filler units are
mounted, remove them too. For details, see "15.3 Removing an HDD/SSD or
Filler Unit."
Chapter 16 Maintaining the HDD Backplane Unit and Operation Panel 425
