Table B-3
USB 3.0 Port (Rear) (continued)

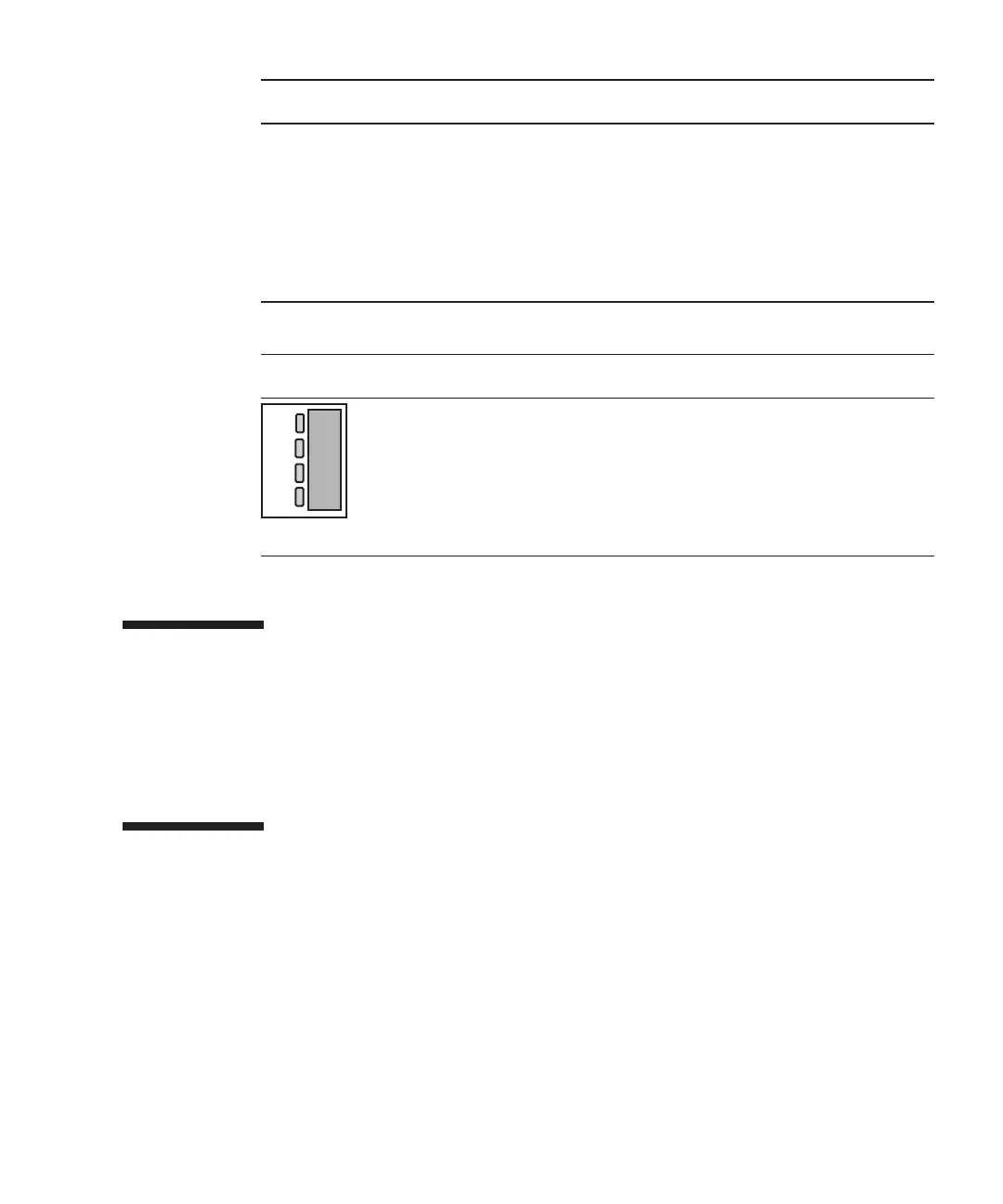

Pin Arrangement Pin
Number
Signal
Name
Input/Output Description
4 GND --- Ground
5 -SSRX Input SuperSpeed data
6 +SSRX Input SuperSpeed data
7 GND --- Ground
8 -SSTX Output SuperSpeed data
9 +SSTX Output SuperSpeed data
Table B-4
USB Port for Maintenance (Rear)
Pin Arrangement Pin
Number
Signal
Name
Input/Output Description
1
2
3
4
1 VBUS Output Power supply
2 -DATA Input/
Output
Data
3 +DATA Input/
Output
Data
4 GND --- Ground
B.3 SAS Port
The SAS port on the SPARC M12-2/M12-2S is used to connect external devices that
have an SAS interface, such as a tape drive. The chassis has one SAS port on the rear.
Consult our service engineer about compatible equipment.
B.4 RESET Switch
The RESET switch on the SPARC M12-2/M12-2S is an emergency switch for
rebooting the XSCF. For details on how to use the RESET switch, see "18.2
Precautions Concerning Using the RESET Switch" in the Fujitsu SPARC M12 and
Fujitsu M10/SPARC M10 System Operation and Administration Guide.
The following diagrams show the
location of the RESET switch: Figure B-2 for the
SPARC M12-2, and Figure B-3 for the SPARC M12-2S. The RESET switch (A in Figure
B-2 and Figure B-3) is mounted on the rear of the chassis.
Appendix B External Interface Specifications 531
