Fujitsu ScanSnap S300 User Manual

192

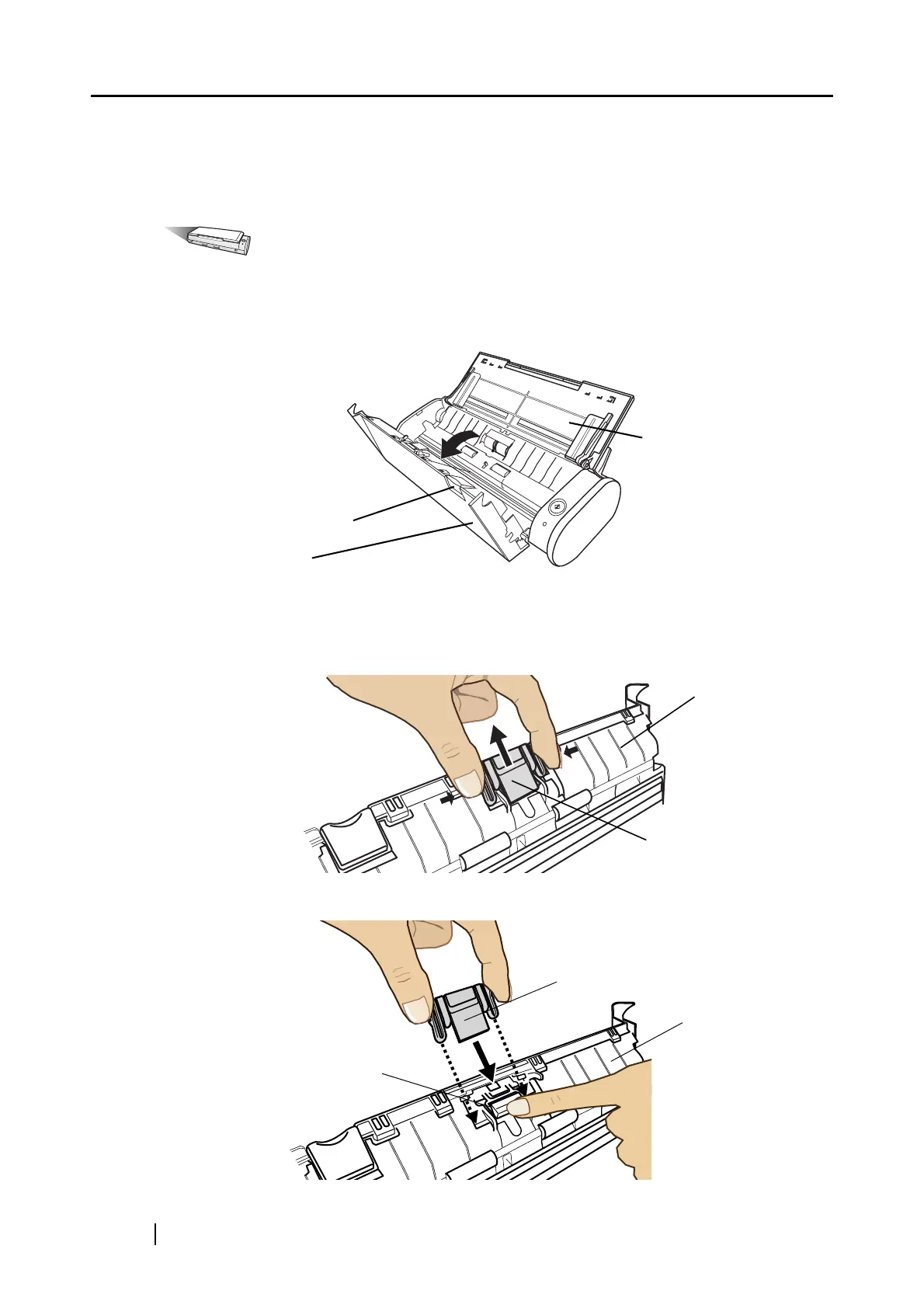

9.2 Replacing the Pad ASSY
Replace the Pad ASSY following the procedure below.
Operation
1. Remove the documents on the paper chute.
2. Open the ADF while pulling the cover open lever.
3. Remove the Pad ASSY.
Pull out the Pad ASSY in the direction of the arrow while pinching both ends of the Pad
ASSY.
4. Attach the new Pad ASSY while pushing the pad plate down.
ADF
Cover open lever
Paper chute
ADF
Pad ASSY
Pad ASSY
ADF
Pad plate

Fujitsu ScanSnap S300 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
Minimum scan area (ADF)	50.8 x 50.8 mm
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	10 sheets
Bundled software	ScanSnap Manager V4.2, ScanSnap Organizer V3.2, CardMinder V3.2
Scan media weight	64 - 104.7 g/m²
Dimensions (WxDxH)	284 x 95 x 77 mm
Power requirements	AC 100V to 240V, 50 / 60 Hz
Dimensions (W x D x H) (imperial)	11.18 x 3.74 x 3.03 \
Maximum scan area (ADF) (imperial)	8.5 x 14.17 \
Minimum scan area (Auto Document Feeder)	2 x 2 \
Minimum RAM	512 MB
Minimum storage drive space	920 MB
Compatible operating systems	Windows 2000 Professional, Windows XP, Windows Vista
Power supply type	AC/USB
Power consumption (standby)	5 W
Power consumption (typical)	9 W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	1400 g
