Garmin GTX 330 User Manual

Name: Garmin GTX 330
Brand: Garmin
Rating: 5 (1 reviews)

106 pages

To Next Page

To Previous Page

190-00207-02 GTX 330/330D Installation Manual

Revision U Page D-16

APPENDIX D INTERCONNECT DRAWINGS

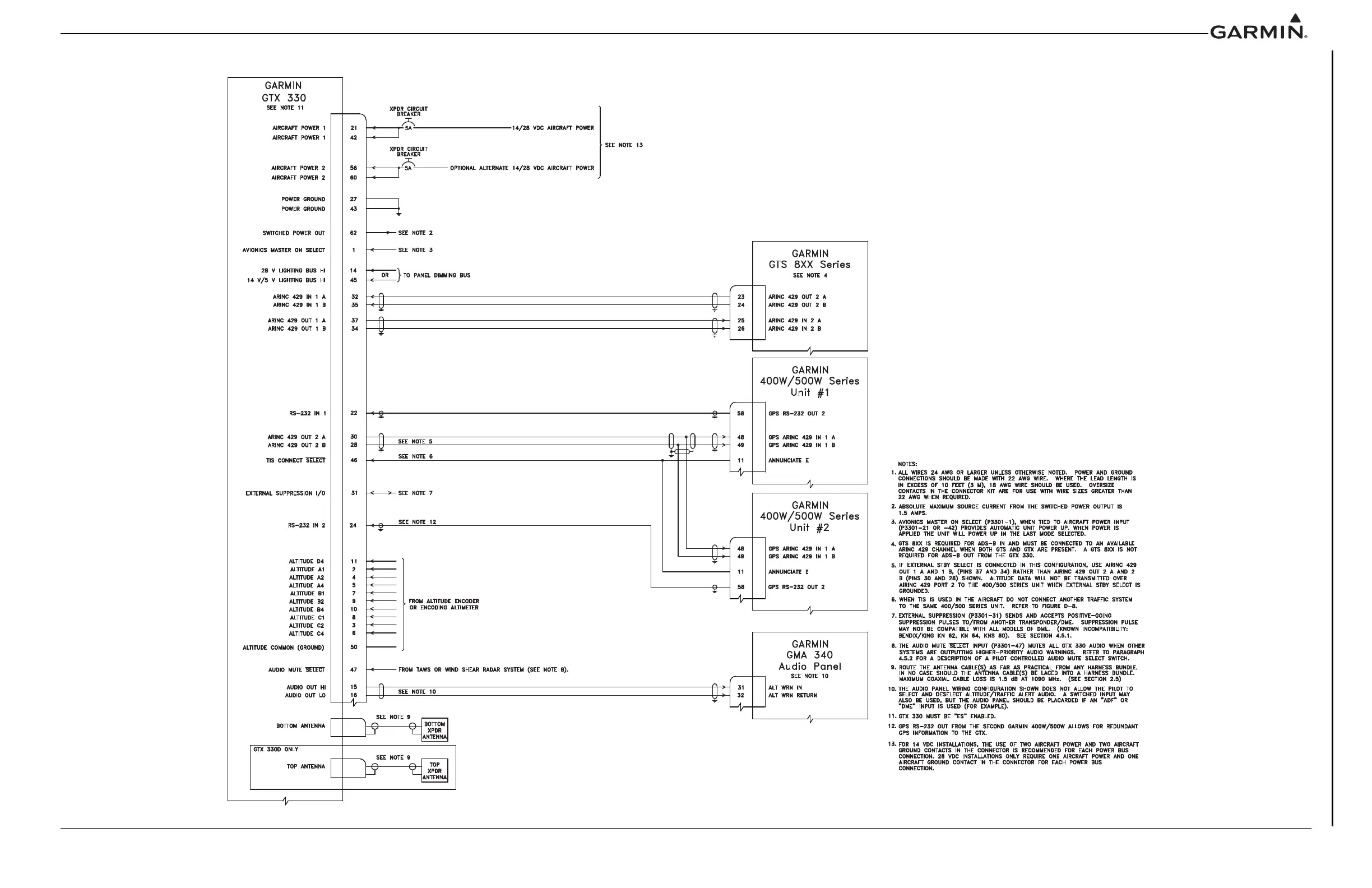

Figure D-12 GTX 330 to 400/500 Series Units ADS-B Interconnect

J3301 P3301J3301 P3301

J3302 P3302J3302 P3302

J3303 P3303J3303 P3303

P8001 J8001P8001 J8001

P4001/P4001/

P5001P5001

J4001/J4001/

J5001J5001

P4001/P4001/

P5001P5001

J4001/J4001/

J5001J5001

P1 J1P1 J1

Default Chapter7
- Table of Contents7
Paragraph Page8
Section 1 GENERAL DESCRIPTION13
- Introduction13
- Equipment Description13
Section 1 GENERAL DESCRIPTION14
- ADS-B Capabilities14
- Table 1-1 ADS-B Versions14
- TIS System Capabilities16
- Mutual Suppression Pulses16
- Interface Summary17
- Technical Specifications18
- Table 1-2 General Specifications18
- Table 1-3 Physical Characteristics19
- Table 1-4 Power Requirements19
- Certification20
- Table 1-5 TSO/ETSO/RTCA/ICAO Compliance20
- Operating Instructions22
- Aircraft Station Licensing Requirements22
- Table 1-6 TSO/ETSO Deviations22
- Section 1 1-1 –22
Section 2 INSTALLATION OVERVIEW23
Section 2 INSTALLATION OVERVIEW23
- Introduction23
- Installation Materials23
- Table 2-1 Available Configurations23
- Installation Considerations24
- Table 2-2 Equipment Available24
Section 2 INSTALLATION OVERVIEW25
- Antenna Installation25
- Figure 2-1 Antenna Installation Considerations25
- Cabling and Wiring Considerations26
- Table 2-3 Cable Specifications26
- Installation Approval Considerations for Pressurized Aircraft27
- Cooling Air27
- GTX 330 Installation27
- Table 2-4 Viewing Angles27
- Figure 2-2 GTX 330 Unit Rack (115-00294-00)28
- Section 2 2-1 –28
Section 3 INSTALLATION PROCEDURE29
Section 3 INSTALLATION PROCEDURE29
- Unpacking Unit29
- Wiring Harness Installation29
- Table 3-1 Pin Contact Part Numbers (High Density)29
- Circuit Breaker Placard30
- Post Installation Checkout30
- Table 3-2 Recommended Crimp Tools (High Density)30
- Section 3 3-1 –30
Section 4 SYSTEM INTERCONNECTS31
Section 4 SYSTEM INTERCONNECTS31
Section 4 SYSTEM INTERCONNECTS31
- Pin Function List31
- Figure 4-1. Rear Connector, J330131
- Table 4-1 J3301 Pin Assignments31
- Power and Lighting Function33
- Temperature Inputs33
- Table 4-2 Aircraft Power Pin Assignments33
- Table 4-3 Aircraft Lighting Pin Assignments33
- Table 4-4 Temperature Probe Pin Assignments33
- Altitude Functions34
- Table 4-5 Encoded Altitude Pin Assignments34
- Figure 4-2. Dual GTX 330, Single Encoder, Serial Input Connections35
- Discrete Functions36
- Table 4-6 Discrete Outputs Pin Assignments36
- Serial Data Electrical Characteristics37
- Table 4-7 Discrete Inputs Pin Assignments37
- Table 4-8 RS-232 Pin Assignments38
- Figure 4-3. GTX 330 Software Update Connections39
- Table 4-9 Affected Serial Numbers39
- Table 4-10 ARINC 429 Pin Assignments40
- Section 4 4-1 –40
Procedure 5-141
Section 5 POST INSTALLATION CONFIGURATION and CHECKOUT41
Section 5 POST INSTALLATION CONFIGURATION and CHECKOUT PROCEDURE41
- Operation41
- Figure 5-1. GTX 330 Front Panel41
- Code Selection43
- Configuration44
Section 5 POST INSTALLATION CONFIGURATION and CHECKOUT46
- Table 5-1 Configuration Menu Selections46
- Table 5-2 Audio Mode Selections46
- Table 5-3 Display Mode Selections47
- Table 5-4 Display Backlight Selections47
- Table 5-5 Backlight Source Selections48
- Table 5-6 Key Lighting Selections49
- Table 5-7 Key Source Selections49
Table50
- Table 5-8 Contrast Mode Selections50
- Table 5-9 VFR Key Selections50
- Table 5-10 Speed Selections51
- Table 5-11 Data Selections51
- Table 5-12 ARINC Channel Selections52
- Table 5-13 ARINC Output Labels, Data, and Rates53
- Table 5-14 ARINC Output Labels, High Speed Data53
- Table 5-15 RS-232 Input Selections54
- Table 5-16 RS-232 Output Selections55
- Table 5-17 Altitude Format Selections55
- Table 5-18 Auto Flight Timer Selections56
- Table 5-19 Mode S Address Selections57
- Table 5-20 Flight ID Selections58
- Table 5-21 GPS Configuration Page59
- Table 5-22 Mode S Aircraft Type Selections60
- Table 5-23 Received Labels and Data from AHRS63
- Table 5-24 Received Labels and Data from ADC64
- Table 5-25 Received Labels and Data from EFIS Display64
- Table 5-26 Received Labels and Data from GPS/FMS65
- Table 5-27 Received Labels and Data from Garmin Display65
Paragraph66
- Enhanced Surveillance (EHS)66
- Table 5-28 Received Labels and Data from ARINC 743A66
- Table 5-29 Received Labels and Data from AFCS66
- Table 5-30 Required EHS Equipment Connections67
- Section 5 5-1 –68
Appendix A CERTIFICATION DOCUMENTS69
- STC Permission69
- Continued Airworthiness71
Appendix A CERTIFICATION DOCUMENTS73
- Matrix73
Appendix B VERSION 1 ADS-B FIELD APPROVAL COMPLIANCE MATRIX73
- Table B-1 Compliance Matrix74
Appendix B VERSION 1 ADS-B FIELD APPROVAL COMPLIANCE74
Appendix C ASSEMBLY and INSTALLATION DRAWINGS85
- Figure C-1 GTX 330 Outline Drawing85
- Figure C-2 GTX 330 Connector/Rack Assembly Drawing86
- Figure C-3 GTX 330 Recommended Panel Cutout Dimensions87
Appendix C ASSEMBLY and INSTALLATION DRAWINGS88
Appendix D INTERCONNECT DRAWINGS88
- Figure D-1 GTX 330 to 400/500 Series Units, Typical Interconnect Wiring Diagram88
Appendix D INTERCONNECT DRAWINGS88
- Figure D-2 GTX 330 to GNS 480(CNX80), Typical Interconnect Wiring Diagram89
- Figure D-3 GTX 330 to GNS 480 (CNX80) and MFD, Simplified Interconnect Wiring Diagram90
- Figure D-4 GTX 330 Interconnect Wiring Diagram, Discrete and Audio Connections91
- Figure D-5 GTX 330 Interconnect Wiring Diagram, Serial Devices Connections92
- Figure D-6 GTX 330 Interconnect Wiring Diagram, Altitude and Temperature Connections93
- Figure D-7 Dual Transponder Interconnect Wiring Diagram, Dual Display Connections94
- Figure D-7 Dual Transponder Interconnect Wiring Diagram, Dual Display Connections95
- Figure D-8 GTX 330 Interconnect Wiring Diagram, Aircraft with TIS and TCAD/TCAS96
- Figure D-9 Dual TXP Interconnect Wiring Diagram, Encoding Altitude Connections (Sheet 197
- Figure D-9 Dual TXP Interconnect Wiring Diagram, Encoding Altitude Connections (Sheet 298
- Figure D-9 Dual TXP Interconnect Wiring Diagram, Encoding Altitude Connections (Sheet 399
- Figure D-10 Dual TXP to GTN 6XX/7XX Interconect Wiring Diagram, Encoding Altitude Connections (Sheet 1100
- Figure D-10 Dual TXP to GTN 6XX/7XX Interconect Wiring Diagram, Encoding Altitude Connections (Sheet 2101
- Figure D-11 GTX 330 W/Es to GDL 90 Connections102
- Figure D-12 GTX 330 to 400/500 Series Units ADS-B Interconnect103
- Figure D-13 GTX 330 to 400W/500W Series Units ADS-B TX Only Interconnect104
- Figure D-14 GTX 330 to GTN 6XX/7XX Simplified Interconnect Wiring Diagram105
