190-00207-02 GTX 330/330D Installation Manual
Rev. U Page 5-1
5 POST INSTALLATION CONFIGURATION AND CHECKOUT
PROCEDURE
Perhaps the most important factor in the GTX 330 transponder configuration and checkout is the Mode S
address entry and Flight ID. Refer to
Section 5.2.13.2 for Mode S address entry pages.
CAUTION
Be sure to check all aircraft control movements before flight is attempted to insure
that the wiring harness does not touch any moving part.
Verify proper operation of the transponder during a flight test under VFR conditions. If the unit detects an
internal failure mode the word FAIL is displayed on the screen.
Make sure an approved device is installed for reporting altitude in accordance with 14 CFR 91.217. Refer
to
Section 4.4.4 for altimeter data selection priority.
5.1 Operation
NOTE
The coverage you can expect from the GTX 330 is limited to line of sight. Low altitude or
antenna shielding by the aircraft itself may result in reduced range. Range can be
improved by climbing to a higher altitude. It may be possible to minimize antenna
shielding by locating the antenna where dead spots are only noticed during abnormal
flight attitudes.

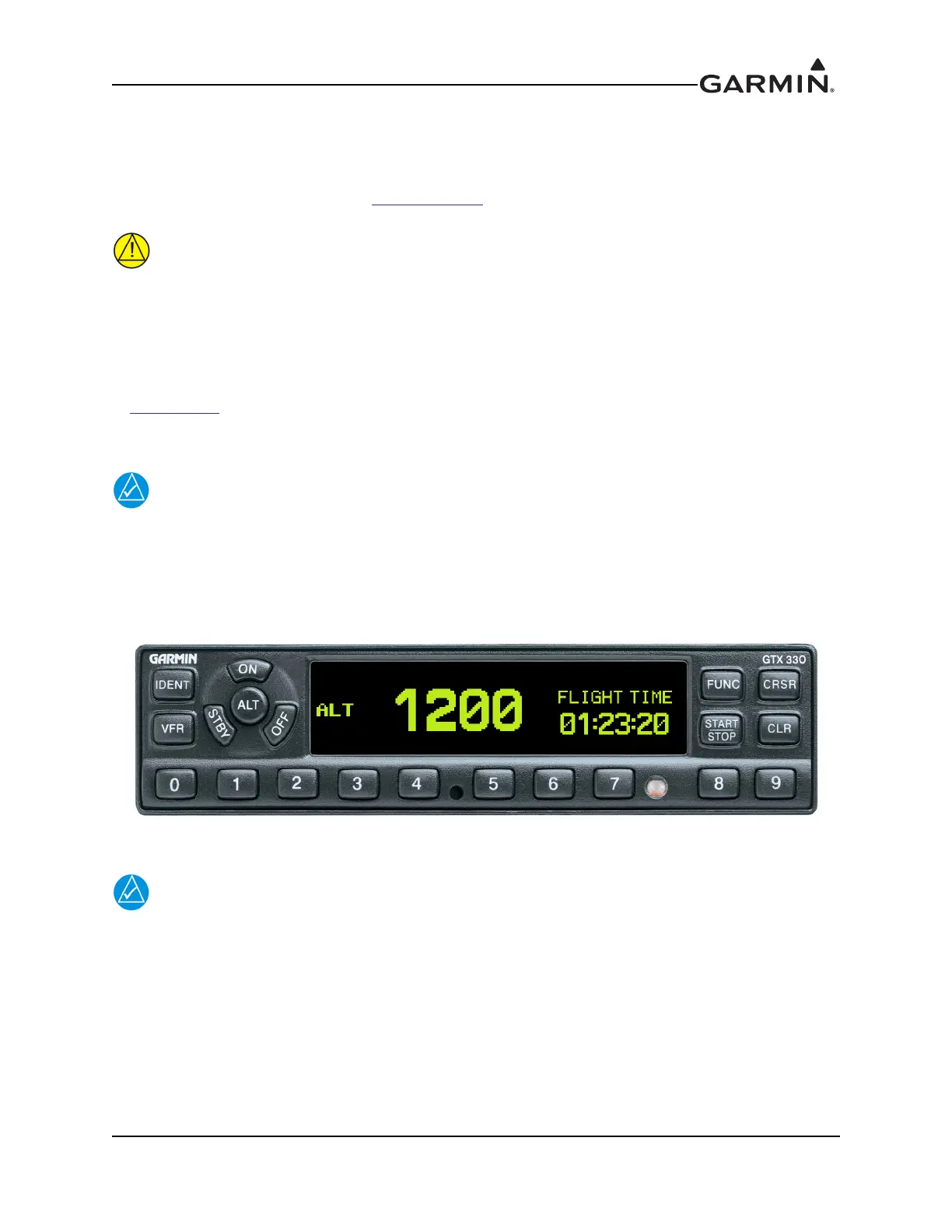

Figure 5-1. GTX 330 Front Panel
NOTE
The GTX 330 should be turned off before starting aircraft engine(s).

Garmin GTX 330 Specifications

General

Reply Frequencies	1090 MHz
Frequency Range	1090 MHz (reply)
Power Output	200 Watts peak
Dimensions	5.7 x 1.6 x 7.5 inches (145 x 41 x 191 mm)
Temperature Range	-20°C to +55°C
Operating Voltage	11-33 VDC
