190-00207-02 GTX 330/330D Installation Manual
Rev. U Page 5-11

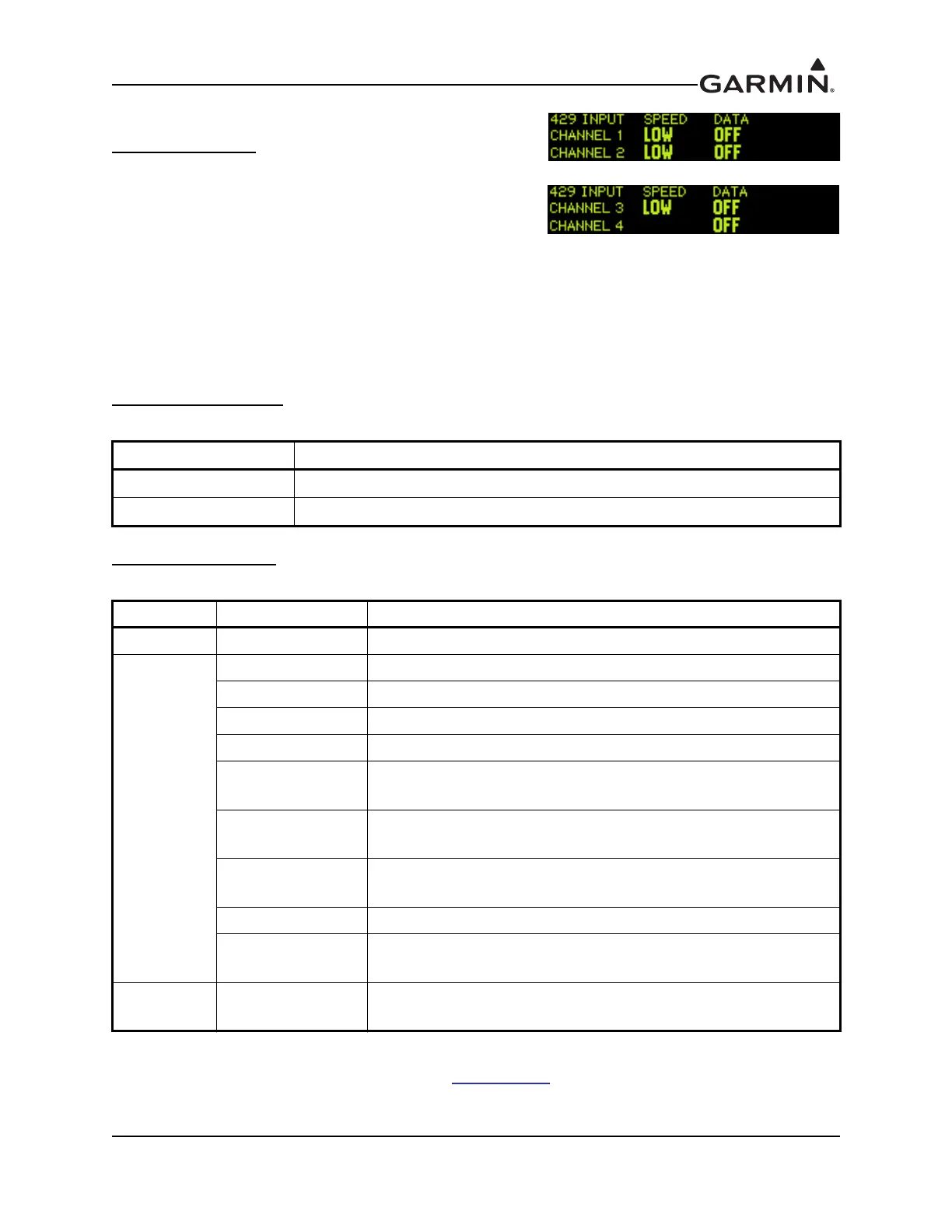

5.2.9 ARINC 429 Configuration Pages
ARINC 429 INPUT
The ARINC 429 INPUT Pages configure the ARINC 429
input ports. Each port can be configured independently for
the desired function(s). The ARINC 429 IN 1 INPUT allows
automated start and stop of the flight timer and places the
transponder in ground (GND) mode upon landing. The same
input data source cannot be selected for multiple input channels 1 through 3. ADLP is included for future
use.
For a connection to a Garmin GTS 820 or GTS 850, GARMIN TAS (HIGH) must be selected. Barometric
data is not included in the GARMIN TAS format. A separate barometric data source is required
SPEED (Channel 1 – 3)
DATA (Channel 1 – 4)
Table 5-10 Speed Selections
SELECTION DESCRIPTION
Low Standard low-speed ARINC 429 (nominally 12.5 kilobits per second)
High High-speed ARINC 429 (nominally 100 kilobits per second)
Table 5-11 Data Selections
CHANNEL SELECTION DESCRIPTION
All OFF No unit connected to this ARINC 429 input
1
through
3
GPS Selected waypoint information and GPS ground speed recognition.
ADC NO ALT Temperature and speed information
ADC W/ALT Altitude, temperature and speed information
AHRS Attitude and heading information
EF/AD NO ALT Selected course, heading, temperature, joystick waypoint and
speed information
EF/AD W/ALT Selected course, heading, temperature, joystick waypoint and
speed information plus altitude data
GRMN DISPLAY Same as GPS with added ability of receiving phase of flight data
from a Garmin 400/500 Series (non-WAAS)
GRMN TAS TAS Mode data from Garmin GTS 820 and GTS 850
GRMN 743A* Standard GNSS input. Includes position, velocity, and integrity
data.
4 ADLP Airborne Data Link Processor. ADLP is available only on channel
4.
*The GRMN 743A ARINC 429 Input format does not fully support Version 2 ADS-B Out compliance
with AC 20-165. For full compliance to AC 20-165, the RS-232 REMOTE input format must be used
with a compatible GPS WAAS position source (Section 5.2.10).
ARINC 429 INPUT (First) Page
ARINC 429 INPUT (Second) Page

Garmin GTX 330 Specifications

General

Reply Frequencies	1090 MHz
Frequency Range	1090 MHz (reply)
Power Output	200 Watts peak
Dimensions	5.7 x 1.6 x 7.5 inches (145 x 41 x 191 mm)
Temperature Range	-20°C to +55°C
Operating Voltage	11-33 VDC
