Garmin GTX 330 User Manual

190-00207-02 GTX 330/330D Installation Manual
Revision U Page D-6
APPENDIX D INTERCONNECT DRAWINGS

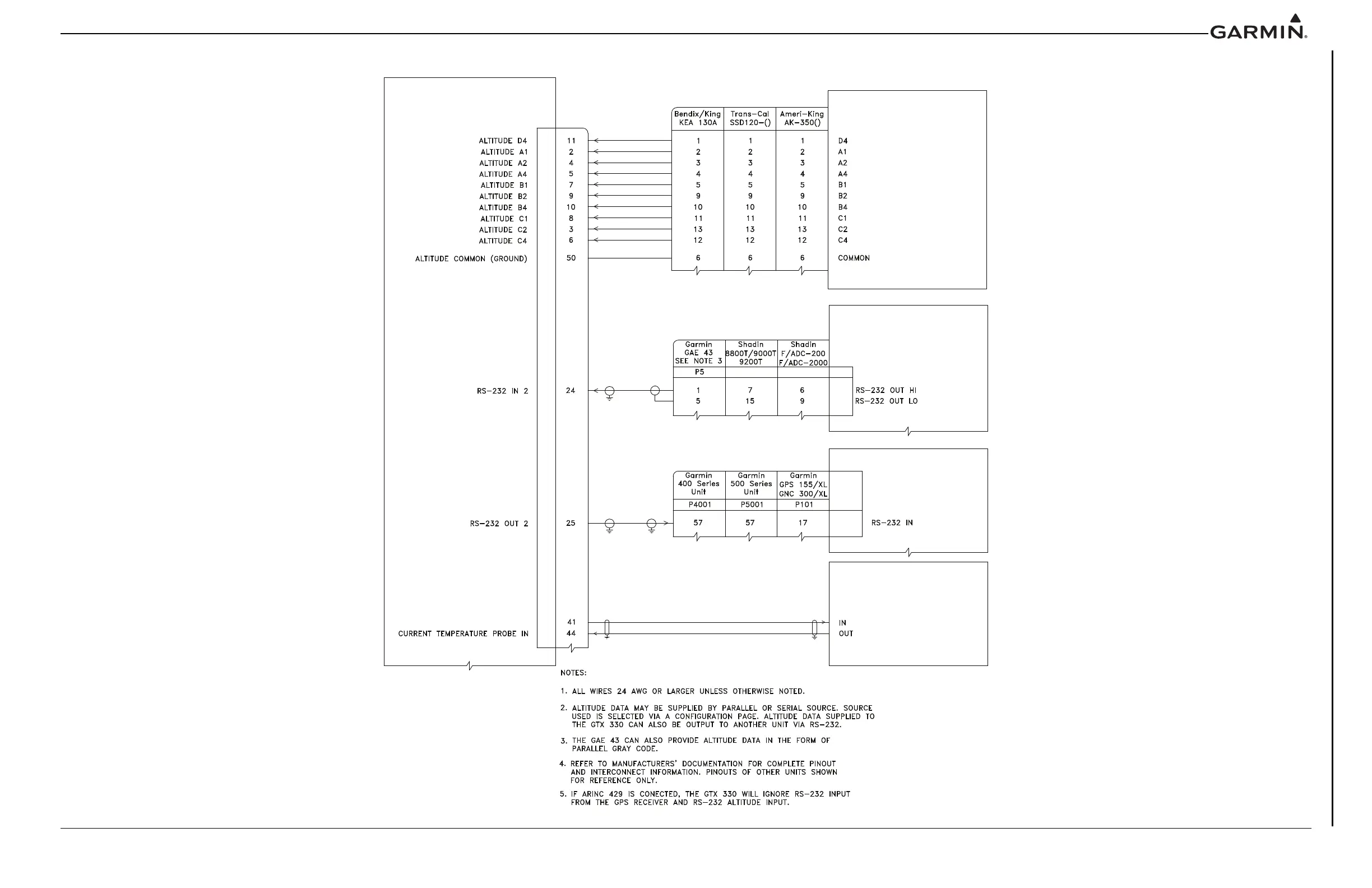

Figure D-6 GTX 330 Interconnect Wiring Diagram, Altitude and Temperature Connections
CURRENT TEMPERATURE PROBE OUTCURRENT TEMPERATURE PROBE OUT
J3301 P3301J3301 P3301
CURRENT SENSINGCURRENT SENSING
TEMPERATURE PROBETEMPERATURE PROBE
GPS RECEIVERGPS RECEIVER
ALTITUDE SERIALIZERALTITUDE SERIALIZER
OR FUEL/AIR DATAOR FUEL/AIR DATA
ENCODING ALTIMETERENCODING ALTIMETER
OR BLIND ENCODEROR BLIND ENCODER
GARMINGARMIN
GTX 330GTX 330
J5J5
J4001/J4001/
J5001/J5001/
J101J101

Garmin GTX 330 Specifications

General

Reply Frequencies	1090 MHz
Frequency Range	1090 MHz (reply)
Power Output	200 Watts peak
Dimensions	5.7 x 1.6 x 7.5 inches (145 x 41 x 191 mm)
Temperature Range	-20°C to +55°C
Operating Voltage	11-33 VDC
