Field Replaceable Units
2030047-001A Patient Data Module 7-9
NOTE
When reassembling, make sure there are not gaps between the mount rail
and the housing when re-seating.
Top housing
1. Remove the mount rail and pull tab per above steps.

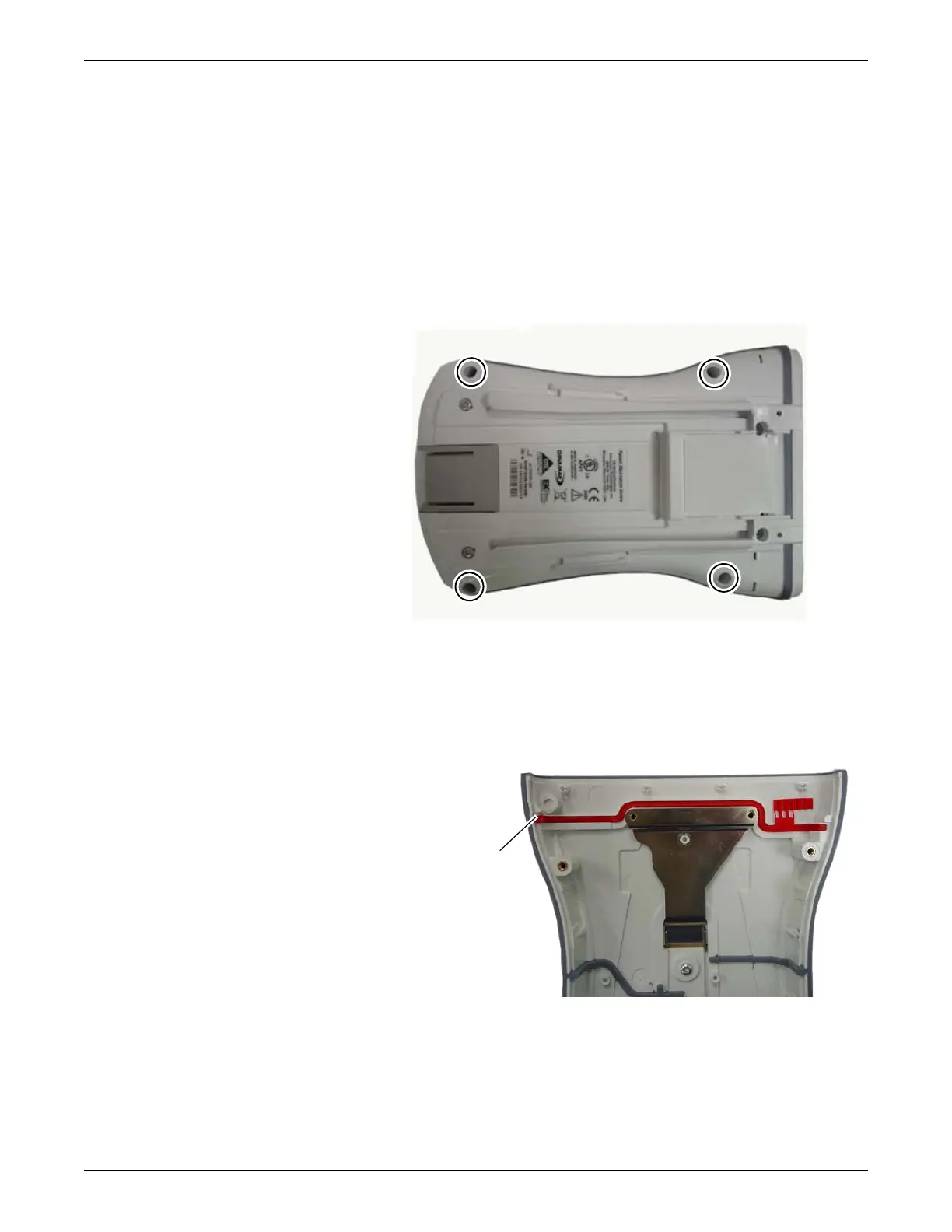

2. Remove 4 machine screws that hold the top and bottom housing together.
464A
3. Turn the Patient Data Module right side up and lift off the top housing.
4. Install the top housing as follows:
a. Inspect the gasket in the top housing to be sure it is securely placed in the
groove.
472A
b. Make sure the flex connector to the front panel board is connected securely.
Gasket
To Next Page
