GE Senographe DS Operator's Manual

Chapter 3 Page no. 30 3-gantry.fm
GE Healthcare Senographe DS Acquisition System
Revision 1 Operator Manual 5307907-3-S-1EN
Senographe DS Gantry and Generator
2 Generator Cabinet Overview
The Generator Cabinet contains power switching equipment, the generator and system management
electronics, and a chiller/dryer (connected to the Digital Detector for control of the detector environment).
• The cabinet is mounted on wheels for ease of installation; it is not recommended that it be moved in
normal operation.
• Do not obstruct the ventilation slots.
• The power control panel visible on the cabinet controls power to the Control Station and to the UPS.
It is normally used only for Service operations.

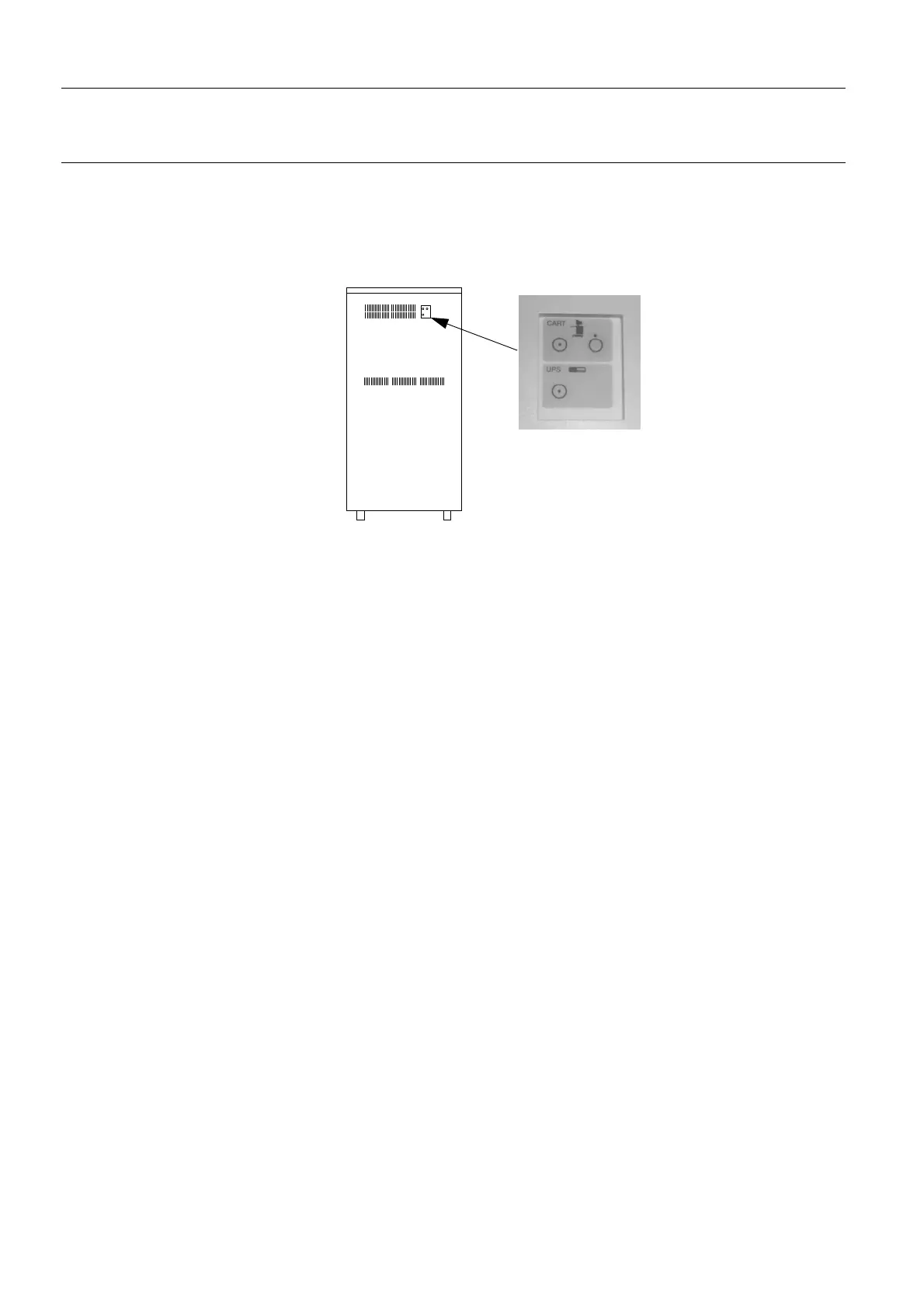

Generator
Cabinet
Power Control
panel
FOR TRAINING PURPOSES ONLY!
