System Setup
3-22 Vivid T9/Vivid T8 – Basic Service Manual
5795591-100 English Rev. 3
3-6-5-3 Connect External Monitor through VGA port
Connect VGA cable to the system and the external monitor
through VGA port. The screen displays on the external monitor.
The external monitor resolution should be 1280 x 1024.

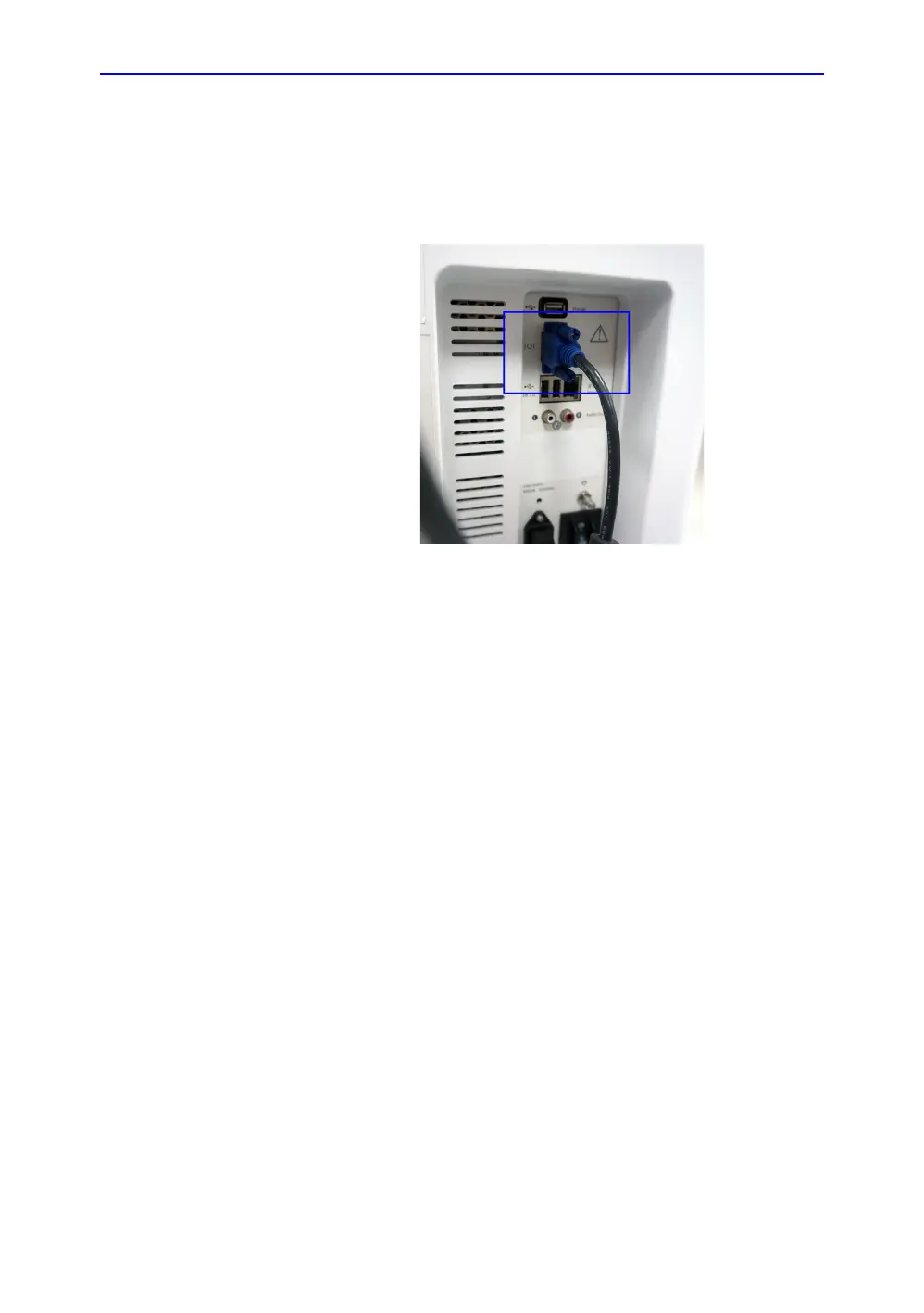

Figure 3-4. Connect with VGA cable
3-6-6 Connecting probes
Please refer to User Manual on how to connect/disconnect a
probe.
3-6-7 Powering the system
Please refer to User Manual on how to power the system.
