General Procedures and Functional Checks
4-32 Vivid T9/Vivid T8 – Basic Service Manual
5795591-100 English Rev. 3
Not all the types of RS probe connector can match the Vivid T9/
Vivid T8 system.

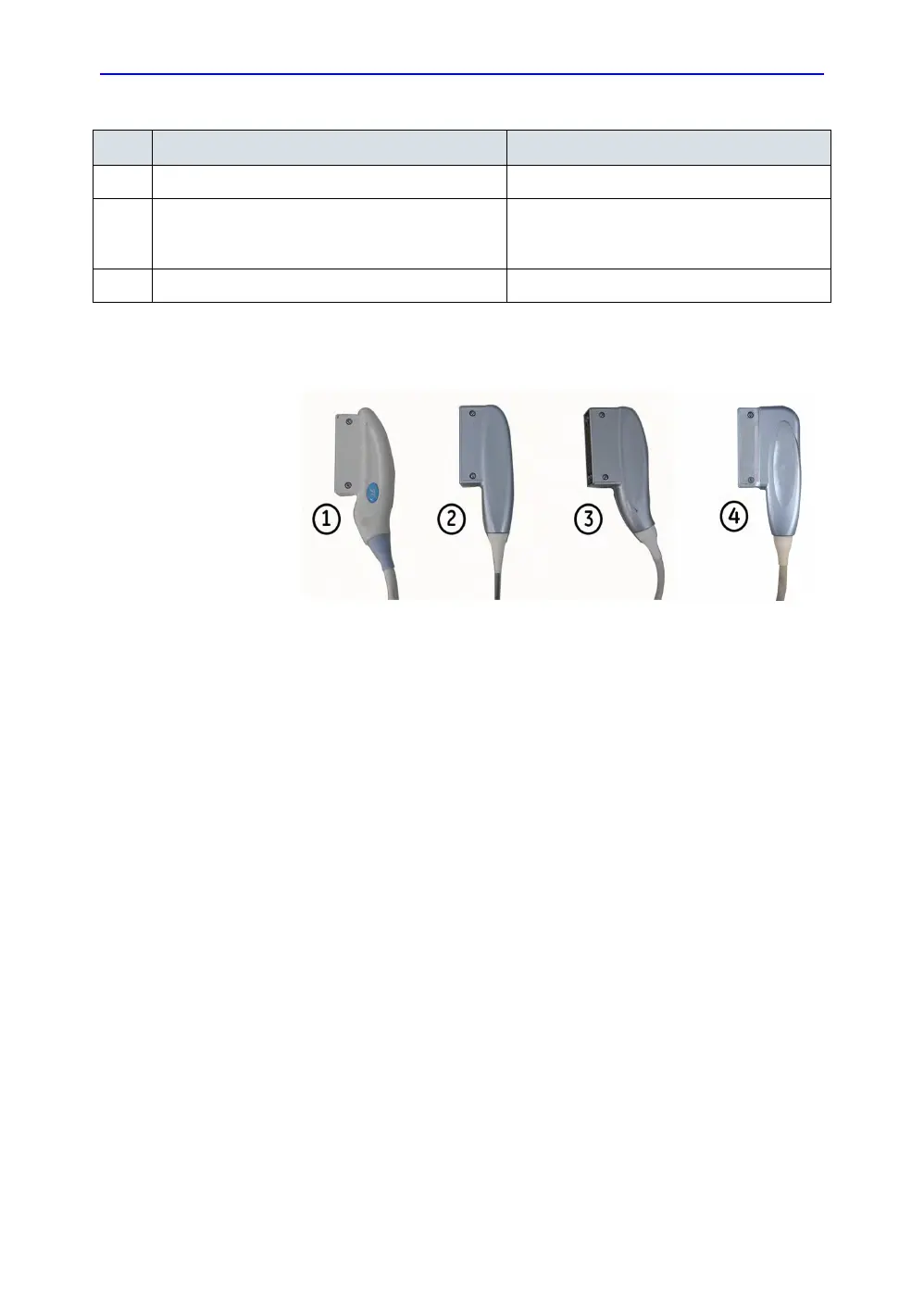

Figure 4-6. RS type probe connector
1. Not match
2. Match
3. Match
4. Match
4-3-26 ECG Check
4-3-26-1 Introduction
The ECG capability on this unit, is intended as use as a trigger
for measurements, but can also be viewed on the screen.
4-3-26-2 Parts needed
• ECG Pads (3 pc)
• ECG Cable Europe Kit (5505585) or US Kit (5505577)
4-3-26-3 Preparations
None
4 Test the probe in each active connector slot. It will display pictorial data each time.
5 Do a leakage test on the probe, See
10-7 ‘Electrical safety tests’ on page 10-19 for
more information.
It passes the test.
6 Repeat this procedure for all available probes.
